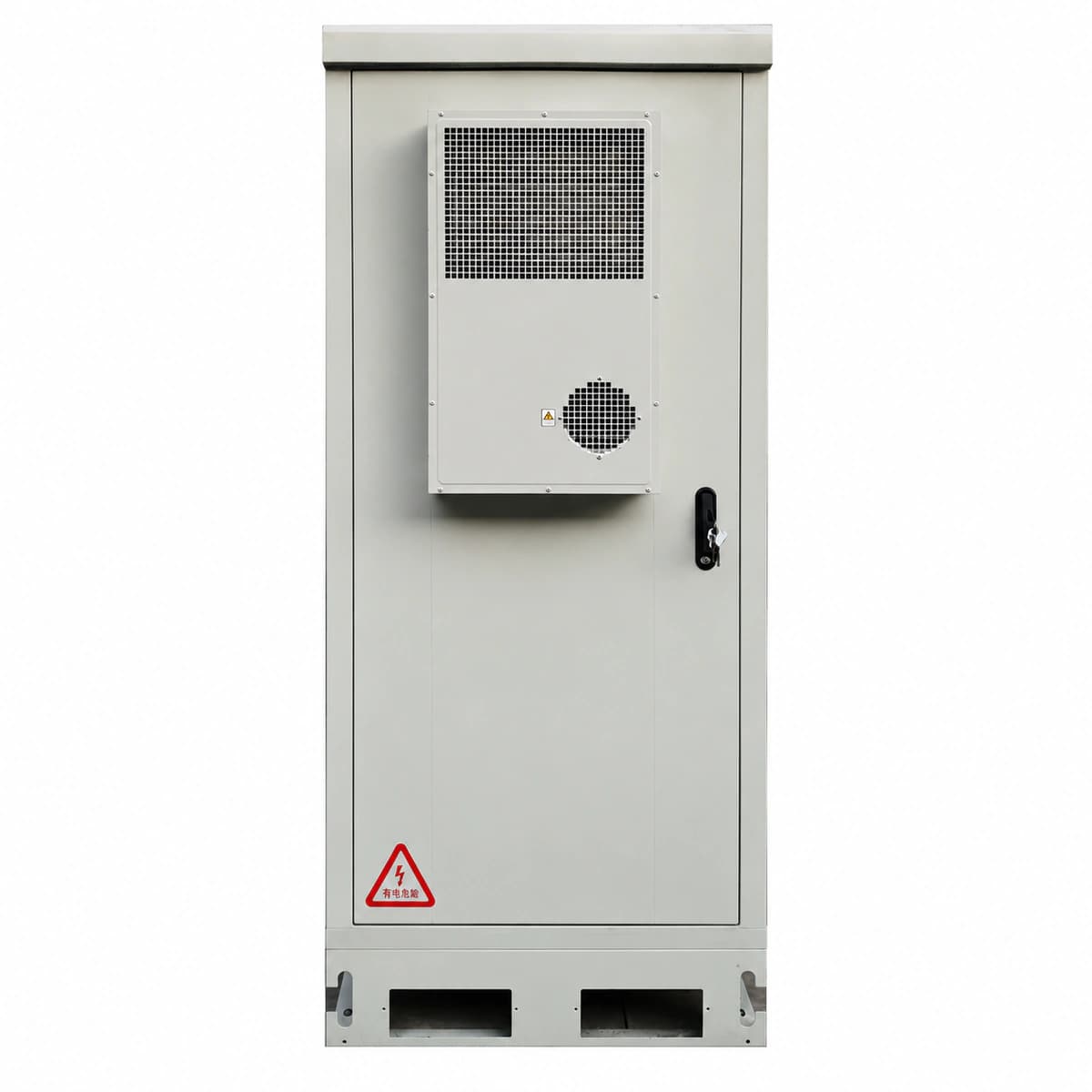

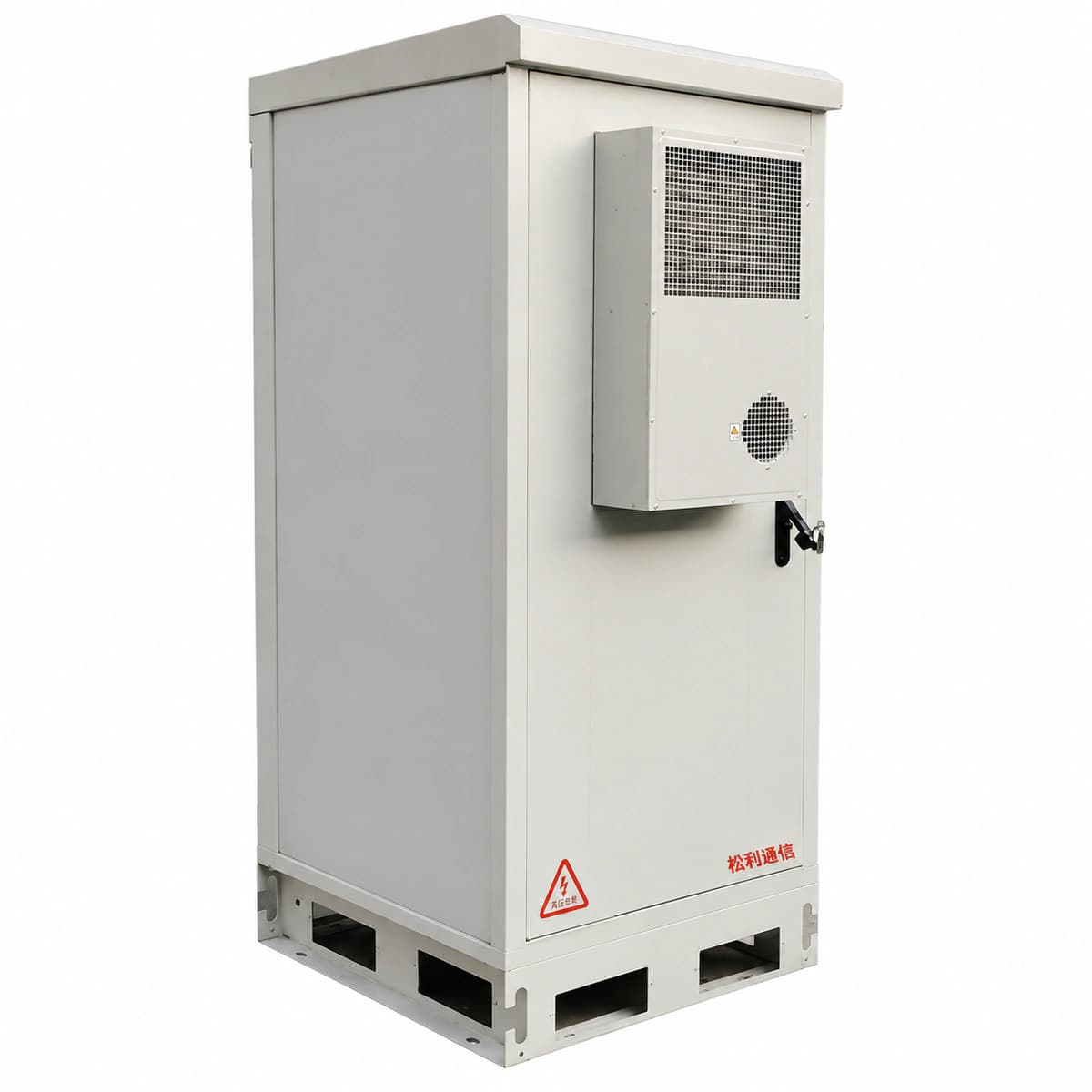

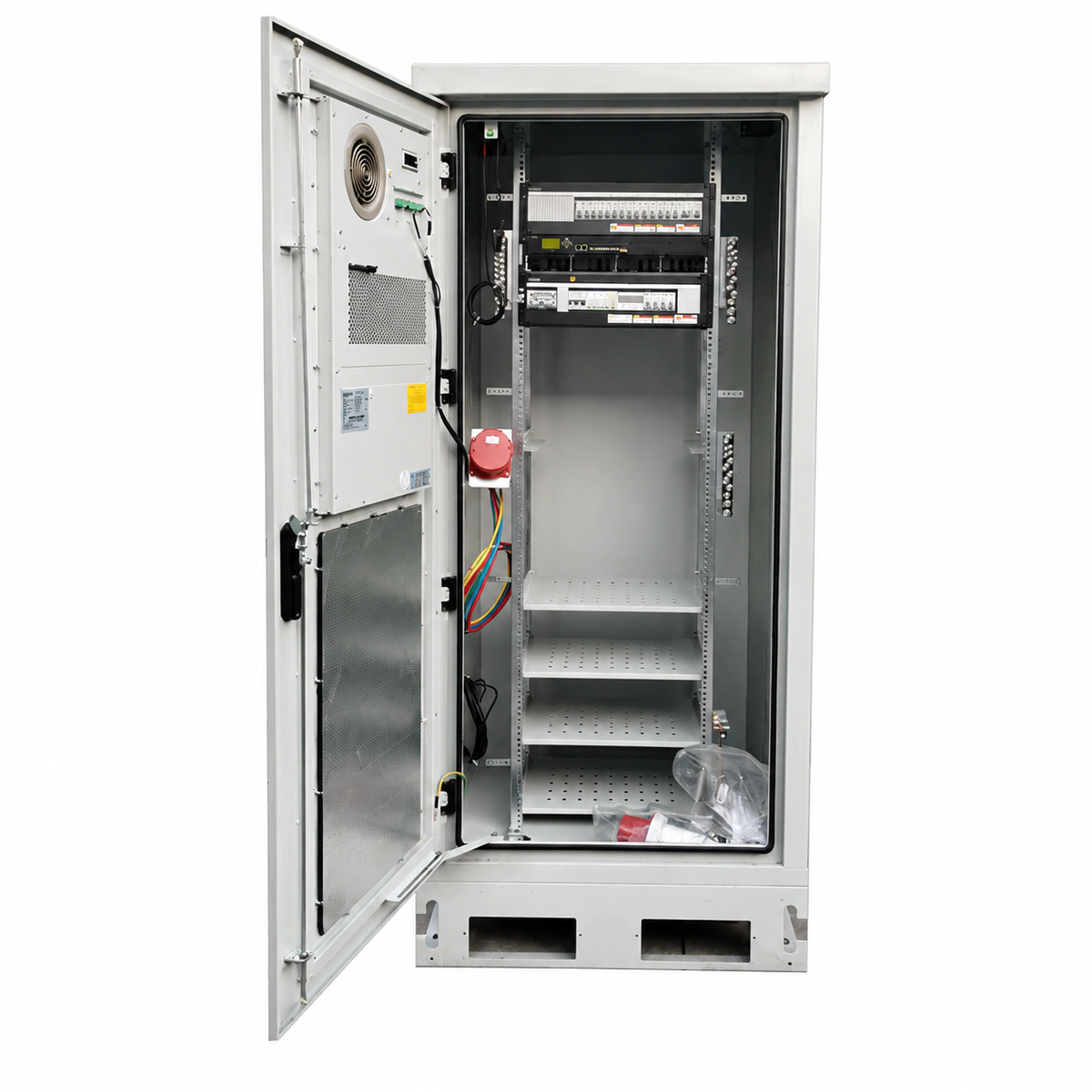

HuaweiModel: Huawei TP483000D Outdoor Power Cabinet
Huawei TP483000D Outdoor Telecom DC Power Cabinet System (3000A / -48V / 60×R4850G2 / IP55 Enclosure)
Huawei TP483000D is a hub-level outdoor ultra-large capacity telecom DC power system delivering up to 3000A at -48V DC via up to 60 R4850G2 rectifiers, integrating IP55-rated dual-door heavy protection, plate heat exchanger thermal management, and an advanced SMU02C controller for mission-critical macro and aggregation sites.
Pricing is confirmed by project configuration and quantity
Request a quote- System Output Capacity
- 3000A (-48V DC) Carrier-Class Telecom Hub Ultra-Capacity
- Cabinet Dimensions & Type
- 2.1m Heavy-Duty Outdoor Dual-Cabinet Suite (IP55 Rated)
- Rectifier Configuration
- Supports up to 60x R4850G2 50A Ultra-HE Rectifiers in Parallel
- Heat Exchange Cooling System
- High-Capacity Industrial Plate Heat Exchanger + Emergency DC Fans
- Environment Monitoring Unit
- SMU02C Intelligent Supervisory Unit (SNMP, Web & Modbus)
- DC Distribution & LVD Protection
- High-Current DC MCCBs + Intelligent Dual-Stage LVD (LLVD/BLVD)
What this product is
What this product is
Huawei TP483000D is a hub-level outdoor ultra-large capacity telecom DC power system delivering up to 3000A at -48V DC via up to 60 R4850G2 rectifiers, integrating IP55-rated dual-door heavy protection, plate heat exchanger thermal management, and an advanced SMU02C controller for mission-critical macro and aggregation sites.
What problem it solves
The Huawei TP483000D Outdoor Power Cabinet System is engineered for telecommunication core aggregation hubs and mega macro sites. Featuring an N+X modular architecture, it supports up to 60 units of 50A ultra-efficient R4850G2 rectifier modules, delivering an aggregate output of 3000A at -48V DC. The enclosure adopts an IP55-rated heavy-duty double-door bayed structure with strict isolation between AC, DC, and control sections. DC distribution incorporates high-capacity molded case circuit breakers (MCCB) and intelligent two-stage load shedding (LLVD/BLVD). The advanced thermal system utilizes a high-duty plate heat exchanger combined with emergency DC fans to ensure seamless operation from -40°C to +55°C. Powered by the SMU02C monitoring controller, the system delivers complete remote telemetry and Northbound OSS integration via SNMP, Modbus, and Web interfaces.
Who and where it is for
Huawei TP483000D is a hub-level outdoor ultra-large capacity telecom DC power system delivering up to 3000A at -48V DC via up to 60 R4850G2 rectifiers, integrating IP55-rated dual-door heavy protection, plate heat exchanger thermal management, and an advanced SMU02C controller for mission-critical macro and aggregation sites.
Core advantages
- Hub-level 3000A DC output capacity supporting up to 60 R4850G2 rectifiers
- High rectifier conversion efficiency over 96% cutting operational OPEX
- Heavy-duty IP55 dual-door bayed cabinet impervious to sand, dust and moisture
- Industrial plate heat exchanger cooling ensures internal temperature stability
- SMU02C monitoring controller supports full SNMP, Modbus and Web telemetry
- Integrated LLVD and BLVD two-stage load shedding secures storage battery life
Technical specifications
| Key specifications | Value |
|---|---|
| System Output Capacity | 3000A (-48V DC) Carrier-Class Telecom Hub Ultra-Capacity |
| Cabinet Dimensions & Type | 2.1m Heavy-Duty Outdoor Dual-Cabinet Suite (IP55 Rated) |
| Rectifier Configuration | Supports up to 60x R4850G2 50A Ultra-HE Rectifiers in Parallel |
| Heat Exchange Cooling System | High-Capacity Industrial Plate Heat Exchanger + Emergency DC Fans |
| Environment Monitoring Unit | SMU02C Intelligent Supervisory Unit (SNMP, Web & Modbus) |
| DC Distribution & LVD Protection | High-Current DC MCCBs + Intelligent Dual-Stage LVD (LLVD/BLVD) |
| Battery Compartment | Thermally Controlled Battery Bay for High-Density LiFePO4 Strings |
| Operating Temperature | -40°C to +55°C |
Applications
01
Telecom 5G core aggregation and super macro outdoor site power systems
02
Shared infrastructure telecommunication towers with multi-carrier loads
03
Harsh desert, maritime, and coastal high-humidity communication nodes
04
Trans-regional optical fiber repeater hubs and microwave backbone sites
