Huawei 5G Micro Power Blade Outdoor Telecom Power Supply (-48V 60A IP65)
Huawei 5G Micro Power blade outdoor DC power supply delivering -48V output with IP65 weatherproofing, designed for pole-mount and wall-mount simplified 5G small cells.
HuaweiModel: Huawei TP482000B 2.1m Outdoor Cabinet

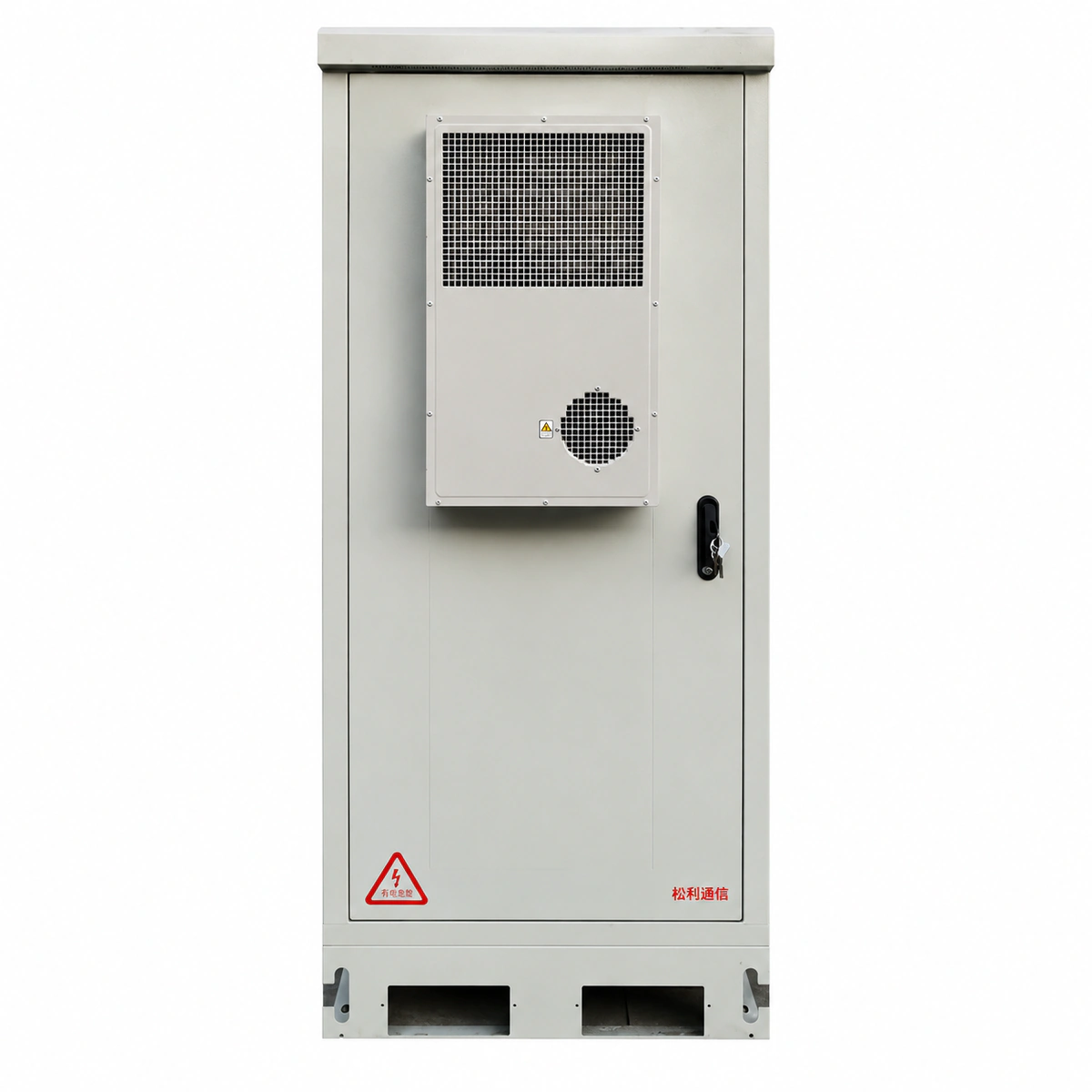

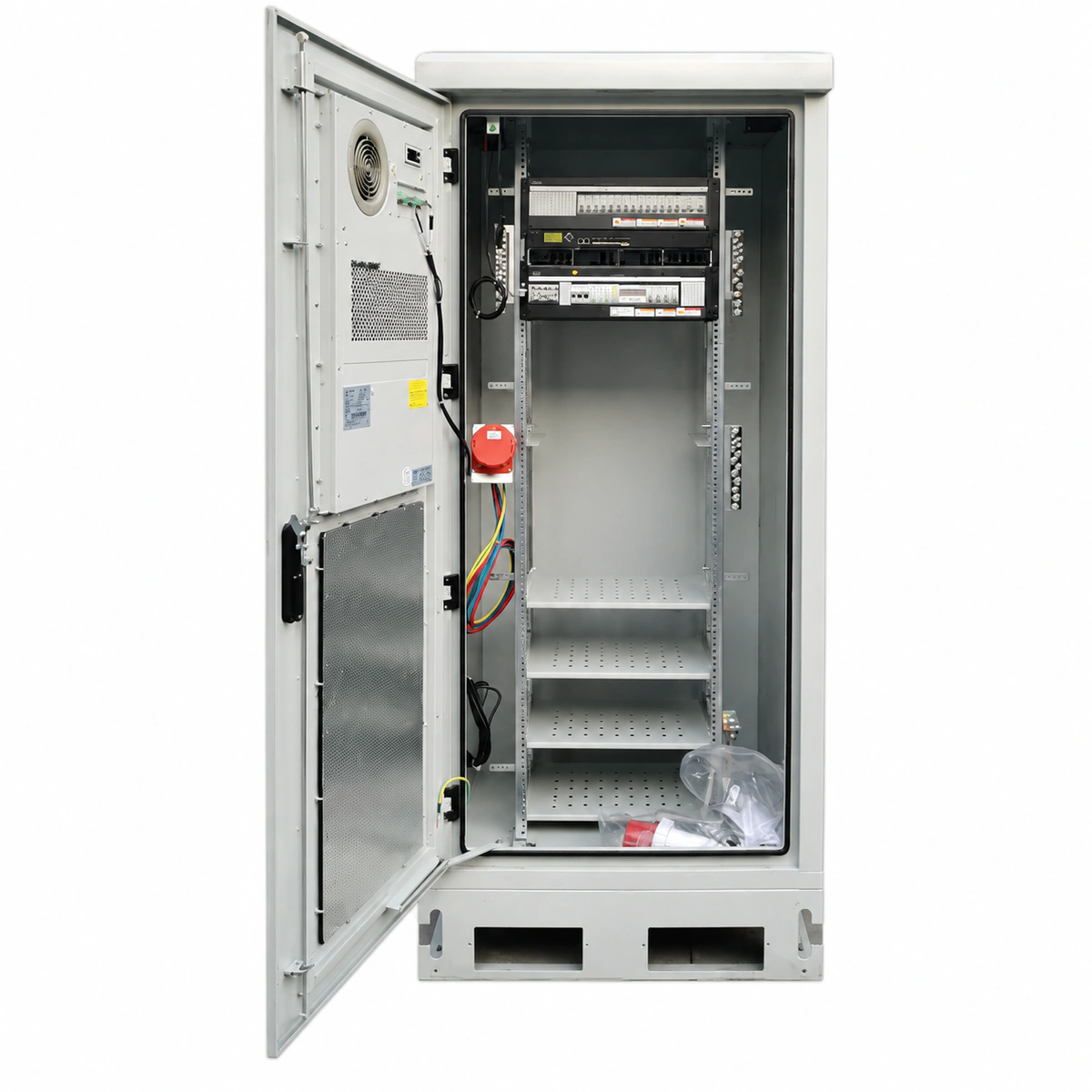

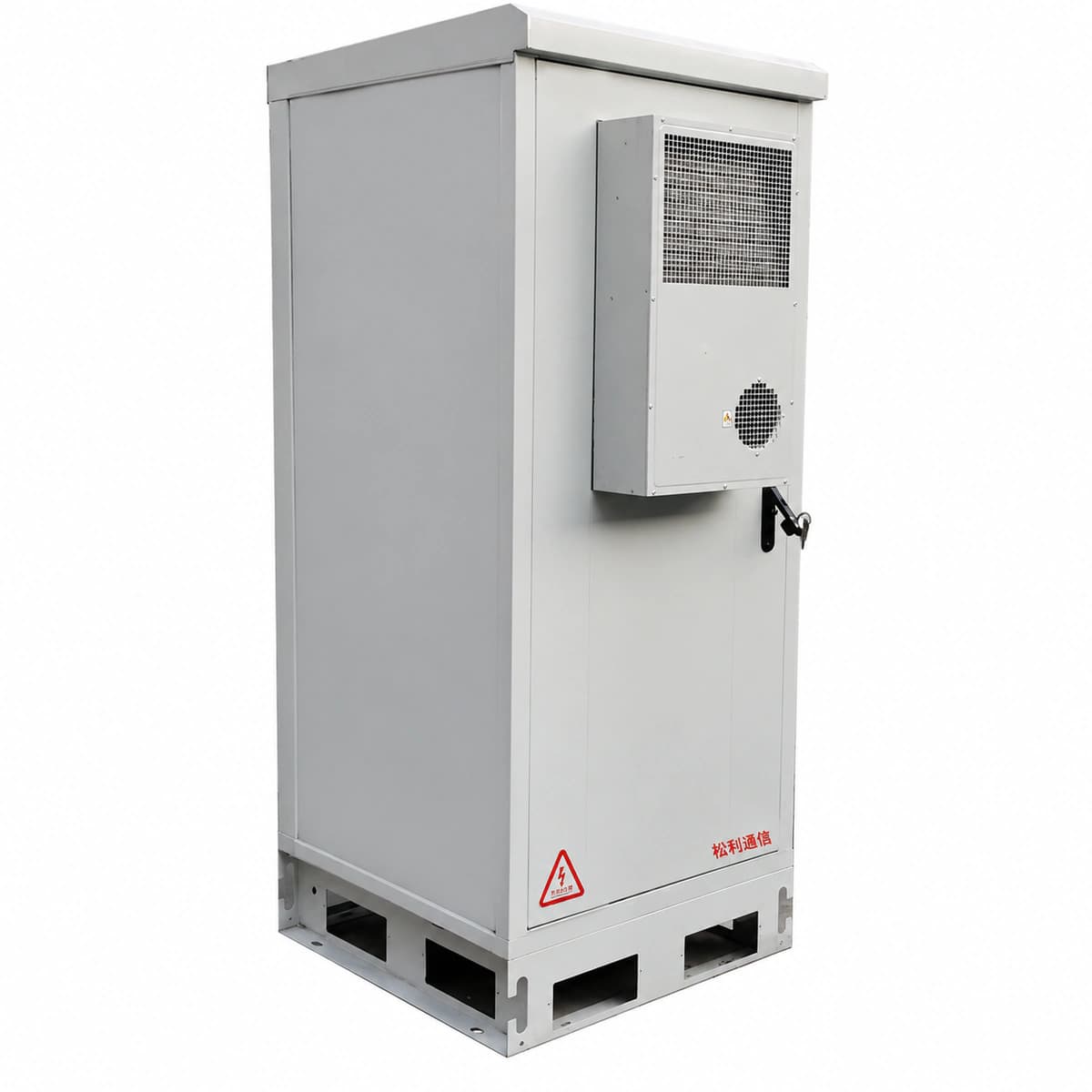

Huawei TP482000B-N20B1 2.1m Outdoor Telecom Power Cabinet System -48V 2000A IP55
Huawei TP482000B-N20B1 is a 2.1-meter industrial-grade outdoor telecom power cabinet delivering -48V DC rated output up to 2000A with IP55 protection, engineered for 5G macro sites and remote aggregation nodes requiring high-capacity, footprint-free deployment.
Pricing is confirmed by project configuration and quantity
Request a quote- System Output Capacity
- 2000A (-48V DC)
- Cabinet Physical Height
- 2.1m Standard High-Protection Outdoor Cabinet (2100×900×900mm)
- Ingress Protection Rating
- IP55 Industrial All-Weather Dust, Water & Corrosion Proof
- Rectifier Module Config
- Accommodates up to 40x R4850G2 50A Ultra-HE Rectifier Modules
- Thermal Management Architecture
- Internal Heat Exchanger + DC Ventilation Dual-Circuit Thermal Control
- Smart Controller Unit
- SMU02C Integrated Centralized Network Supervisory Unit
What this product is
What this product is
Huawei TP482000B-N20B1 is a 2.1-meter industrial-grade outdoor telecom power cabinet delivering -48V DC rated output up to 2000A with IP55 protection, engineered for 5G macro sites and remote aggregation nodes requiring high-capacity, footprint-free deployment.
What problem it solves

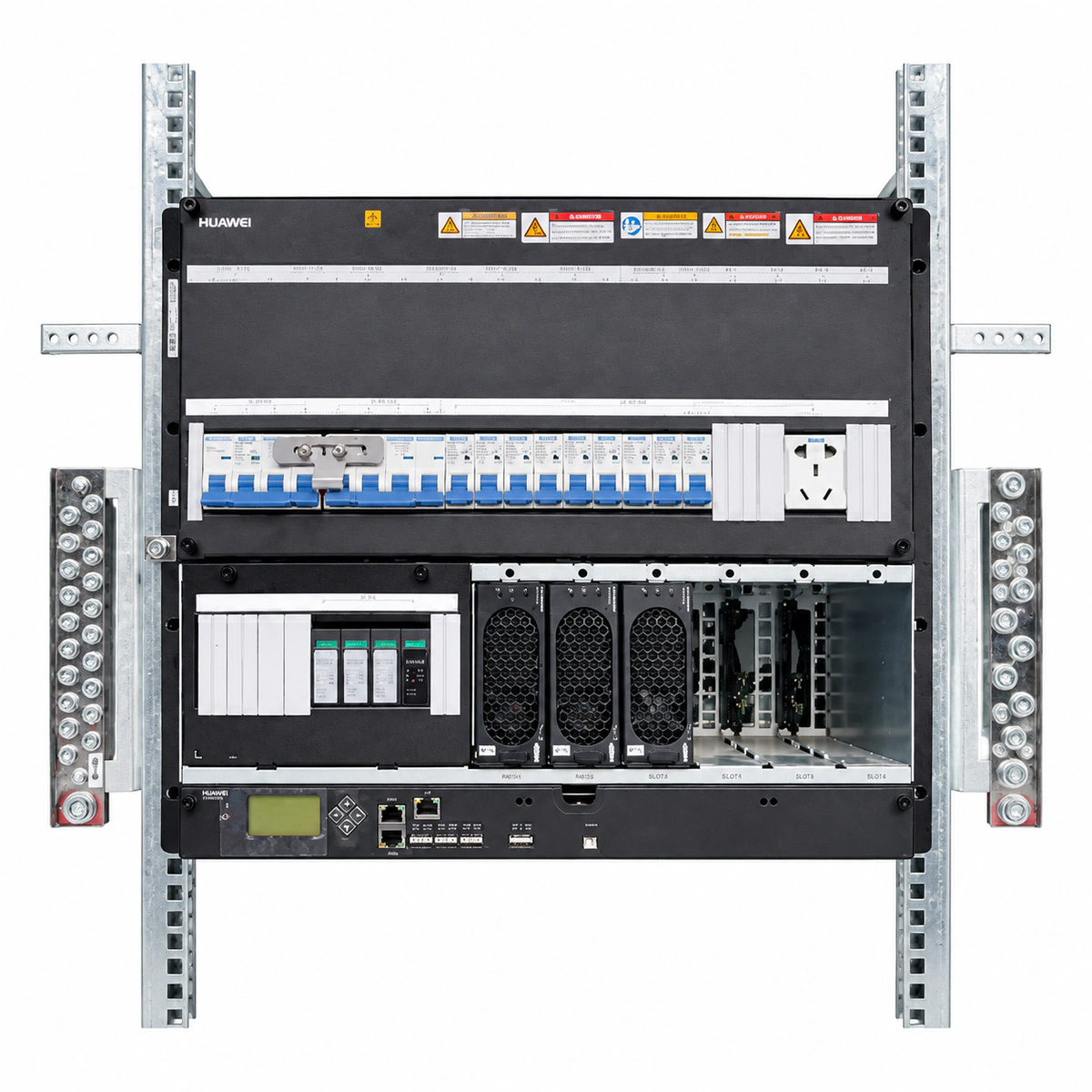

The Huawei TP482000B-N20B1 2.1m outdoor telecom power system represents an industry-leading standard for resilient outdoor infrastructure. System Overview: Built into a robust 2100x900x900mm enclosure, it delivers an enormous 2000A DC capacity without requiring a physical equipment room. Structural & Thermal Architecture: Featuring an isolated dual-compartment structure with integrated door-mounted heat exchangers and intelligent direct ventilation, it ensures complete internal dust isolation while efficiently dissipating high heat loads. Rectification & Distribution: The cabinet accommodates up to 40 units of R4850G2 50A ultra-efficient rectifiers (>96% efficiency) alongside heavy-duty AC/DC distribution units supporting multi-level load management. Rugged Field Protection: Certified to IP55 ingress protection, the system operates reliably across -40°C to +55°C, boasting robust surge protection and marine-grade anti-corrosion coatings for uninterrupted performance in extreme deserts, coastal regions, and arctic frontiers.
Who and where it is for
Huawei TP482000B-N20B1 is a 2.1-meter industrial-grade outdoor telecom power cabinet delivering -48V DC rated output up to 2000A with IP55 protection, engineered for 5G macro sites and remote aggregation nodes requiring high-capacity, footprint-free deployment.
Core advantages
- Ultra-high efficiency: Houses up to 40x R4850G2 rectifiers delivering >96% peak power efficiency
- IP55 ruggedized housing: Hermetically sealed anti-corrosion shell shielding against rain and dust
- Smart heat exchanger cooling: Door-mounted dual-circulation thermal system isolates harsh outdoor air
- Full hot-swappable modularity: Online hot-swap rectifiers and SMU02C unit ensure zero-downtime maintenance
- Advanced battery preservation: Features LLVD/BLVD dual disconnection protection and intelligent cycling
- Comprehensive network management: SMU02C controller supports SNMP/Web/Modbus for remote unattended sites
Technical specifications
| Key specifications | Value |
|---|---|
| System Output Capacity | 2000A (-48V DC) |
| Cabinet Physical Height | 2.1m Standard High-Protection Outdoor Cabinet (2100×900×900mm) |
| Ingress Protection Rating | IP55 Industrial All-Weather Dust, Water & Corrosion Proof |
| Rectifier Module Config | Accommodates up to 40x R4850G2 50A Ultra-HE Rectifier Modules |
| Thermal Management Architecture | Internal Heat Exchanger + DC Ventilation Dual-Circuit Thermal Control |
| Smart Controller Unit | SMU02C Integrated Centralized Network Supervisory Unit |
| Internal Battery Storage Space | Supports Multi-Tier Internal High-Capacity LiFePO4 or VRLA Battery Bays |
| Operating Temperature | -40°C ~ +55°C (Engineered for Extreme Freezing & Desert Climates) |
Applications
01
Outdoor 5G/4G macro station zero-footprint standalone power
02
Railway and highway transit corridor high-salinity repeaters
03
Extreme temperature desert and arctic border telecom shelters
04
Coastal island and humid tropical communications hubs
