HuaweiModel: I23003G1

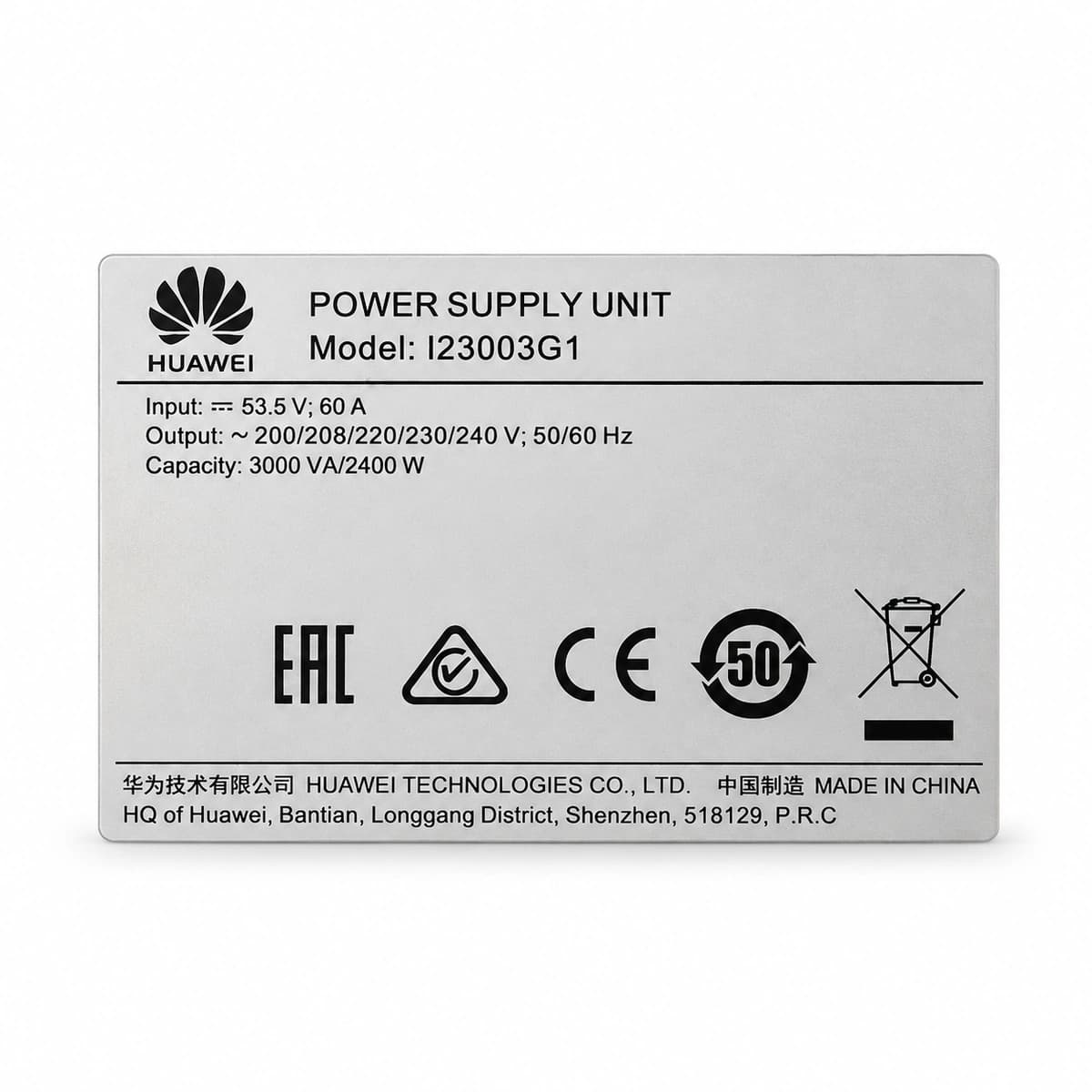

Huawei I23003G1 Carrier-Grade Industrial Telecom Inverter Module (230V 3kVA/2.4kW Pure Sine Wave)
The Huawei I23003G1 is a high-reliability, carrier-grade pure sine wave industrial telecom inverter module rated at 3000VA (2400W active power), engineered to convert nominal -48V DC telecom battery power into a clean, regulated 220V/230V single-phase AC output.
Pricing is confirmed by project configuration and quantity
Request a quote- RATED OUTPUT VOLTAGE
- 230V AC 50/60Hz Pure Sine
- Peak Conversion Efficiency
- ≥ 96.0%
- Operating Temperature Range
- -40°C to +75°C
- Cooling Method
- Forced Air Cooling with Intelligent Speed Fan
- PROTECTION FEATURES
- Over-voltage, Short-circuit, Over-temperature, Surge
- Hot-Swappable Support
- Yes (Live Plug-and-Play Support)
What this product is
What this product is
The I23003G1 is an intelligent plug-in rack-mounted module containing an input EMI/RFI filter, galvanic isolation DC-DC booster, full-bridge SPWM DC-AC inverter, and internal bypass switching circuitry. Controlled by high-speed DSP processing, it maintains precise output regulation with less than 2.5% THD on linear loads, coordinating status telemetry and parallel operation via internal CAN bus to a centralized system supervisor.
What problem it solves
It eliminates the field challenge of powering critical AC networking hardware from existing telecom DC battery banks, mitigates mains grid voltage spikes and harmonics that compromise sensitive IT gear, eradicates single-point-of-failure risks through modular N+X parallelism, and optimizes cabinet footprint in thermally constrained sites.
Who and where it is for
5G macro sites, telecom central offices, edge computing data centers, railway signaling substations, and industrial SCADA automation systems.
Core advantages
- 2.4kW pure sine wave output with ultra-low THD, fully compatible with non-linear loads
- Full DSP digital control architecture enabling accurate active load sharing in N+X redundancy
- Live hot-swap capability ensuring zero-downtime maintenance and simplified capacity expansion
- Robust environmental hardening with dynamic fan control and wide operating temperature range
Technical specifications
| Key specifications | Value |
|---|---|
| RATED OUTPUT VOLTAGE | 230V AC 50/60Hz Pure Sine |
| Peak Conversion Efficiency | ≥ 96.0% |
| Operating Temperature Range | -40°C to +75°C |
| Cooling Method | Forced Air Cooling with Intelligent Speed Fan |
| PROTECTION FEATURES | Over-voltage, Short-circuit, Over-temperature, Surge |
| Hot-Swappable Support | Yes (Live Plug-and-Play Support) |
| THD | ≤ 5% (Total Harmonic Distortion) |
| POWER FACTOR | ≥ 0.99 at Rated Load |
| STANDARD COMPLIANCE | CE, UL, RoHS, IEC 60950, EN 300 386 |
Applications
01
Telecom central offices converting -48VDC infrastructure to power standard AC servers and switches
02
Railway wayside signaling, train traffic control centers, and station automation cabinets
03
Mission-critical industrial IoT edge cabinets and programmable logic controller (PLC) installations
04
High-voltage electrical substation SCADA, teleprotection, and environmental monitoring systems
