The Huawei 2.1m Outdoor Telecom Power Cabinet is an industrial-grade infrastructure integrating the ETP4850G high-efficiency rectifier system and DC PDU within an IP55 dual-compartment enclosure, delivering 200A to 300A regulated -48V DC power for macro base stations and remote aggregation sites.
Pricing is confirmed by project configuration and quantity
Request a quoteThe Huawei 2.1m Outdoor Telecom Power Cabinet is an industrial-grade infrastructure integrating the ETP4850G high-efficiency rectifier system and DC PDU within an IP55 dual-compartment enclosure, delivering 200A to 300A regulated -48V DC power for macro base stations and remote aggregation sites.

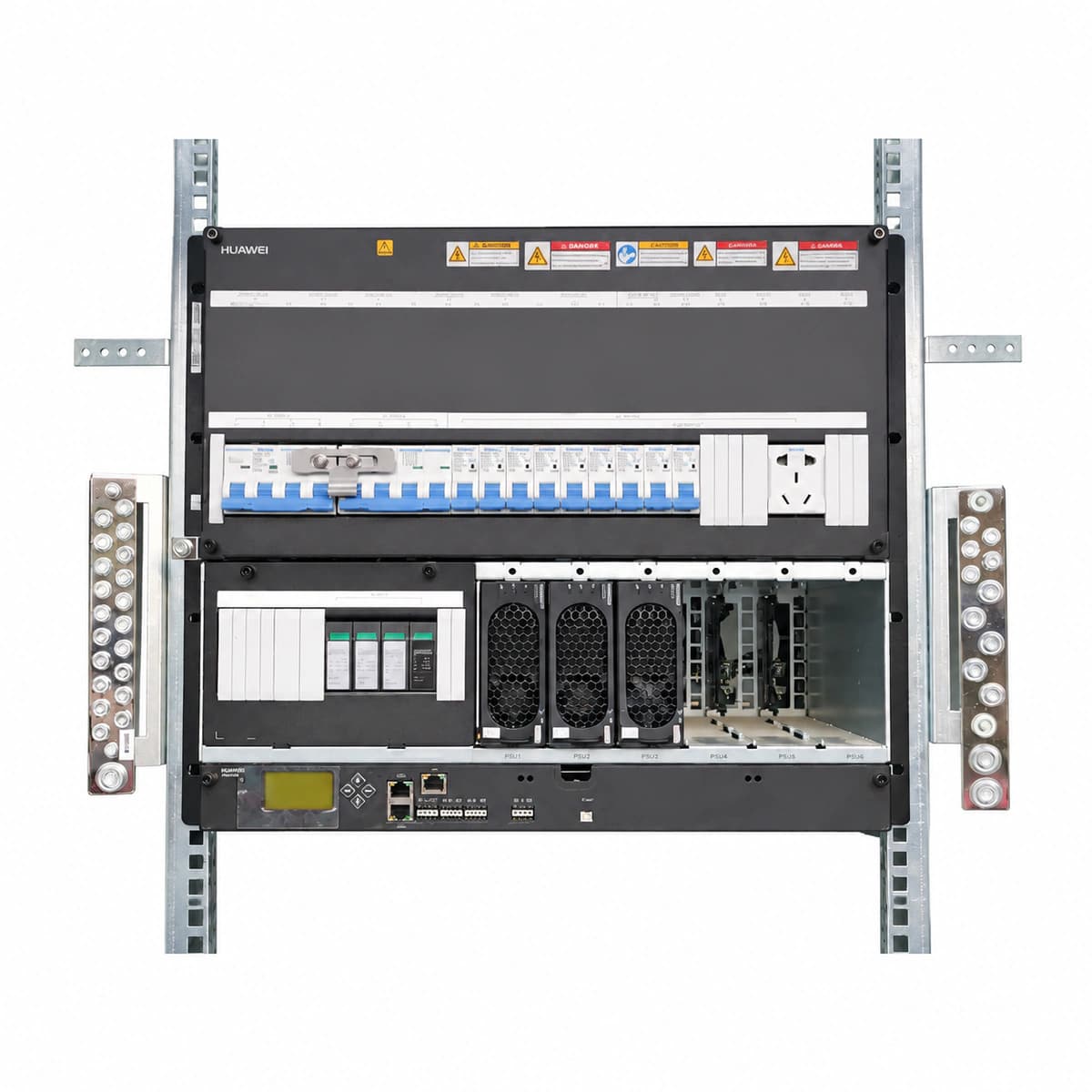

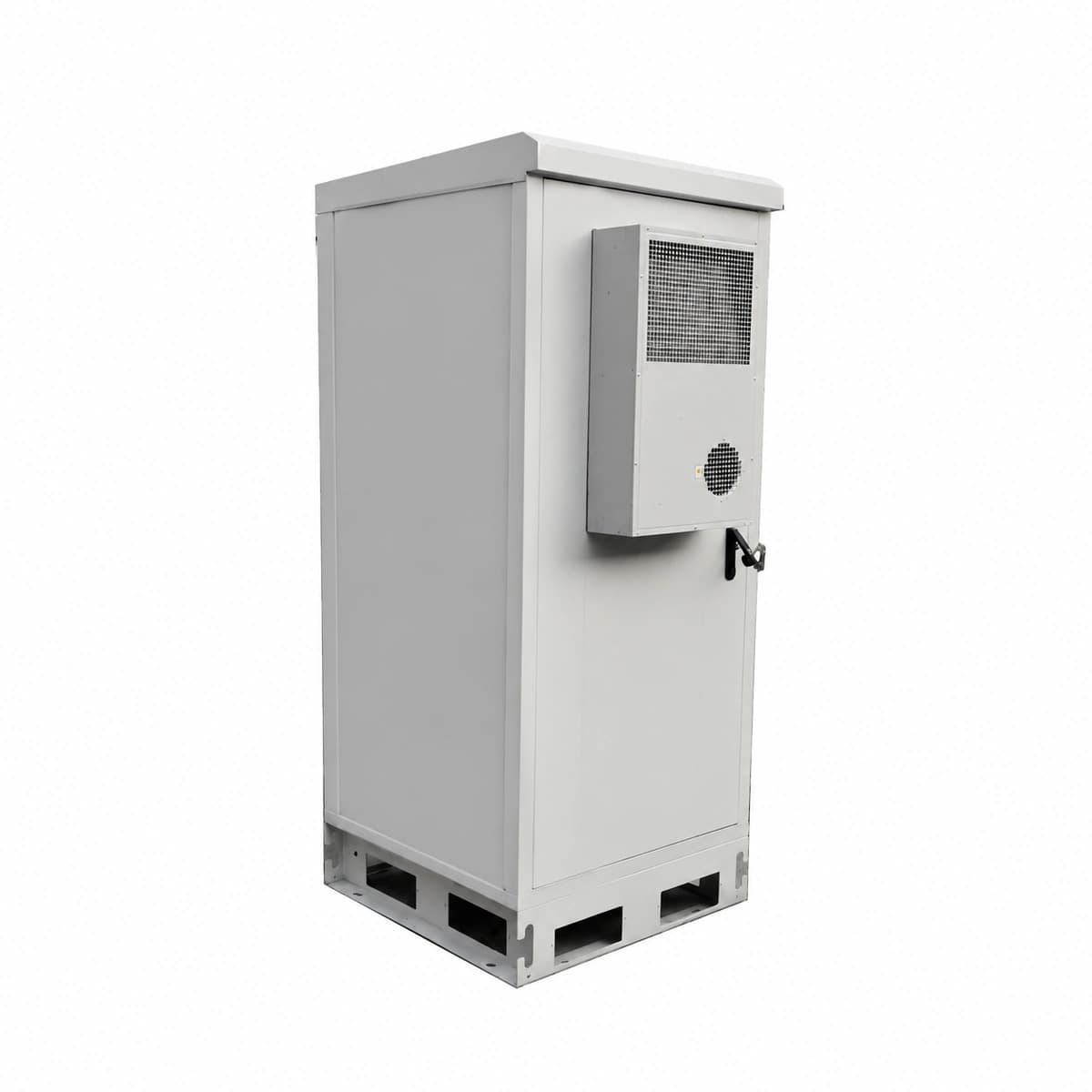

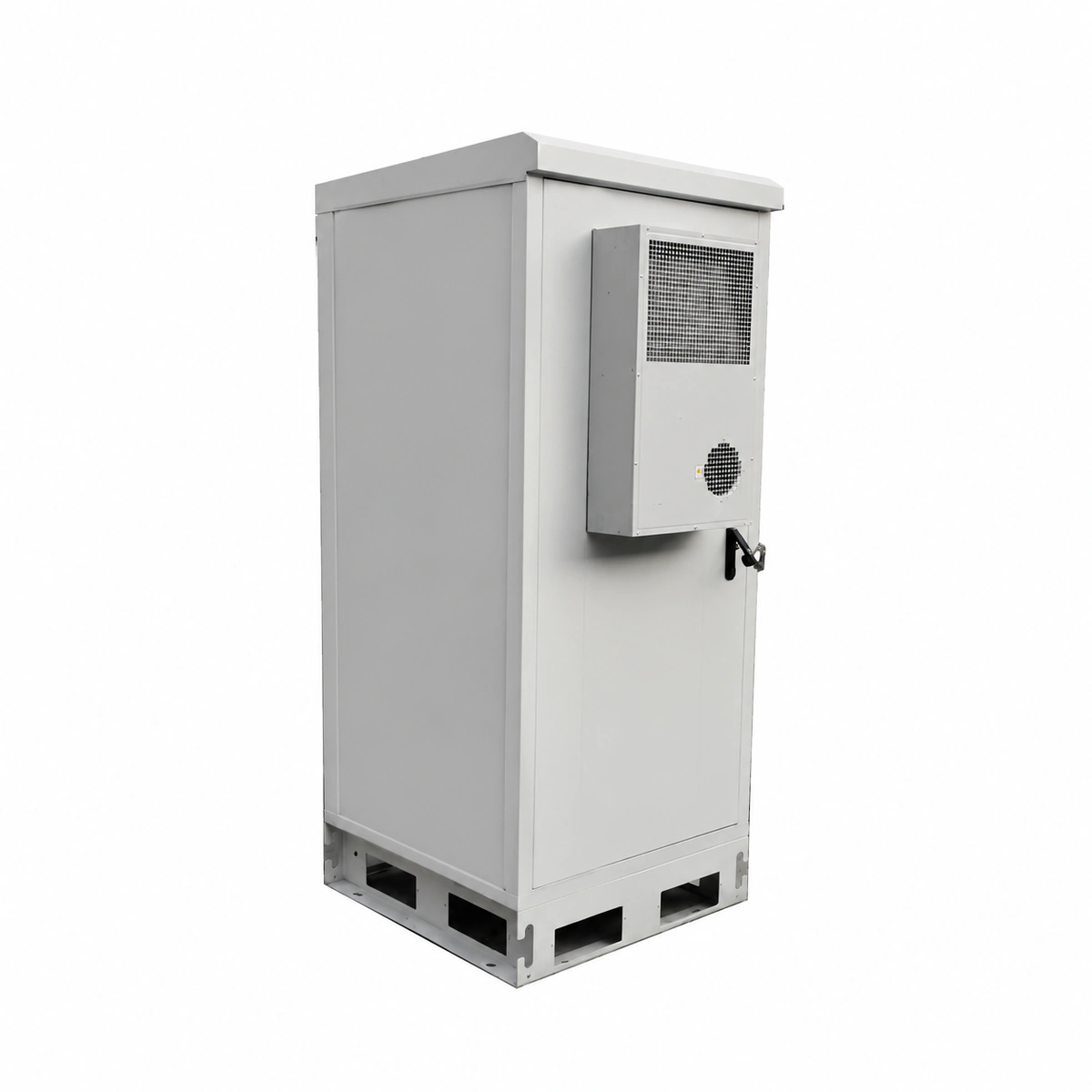

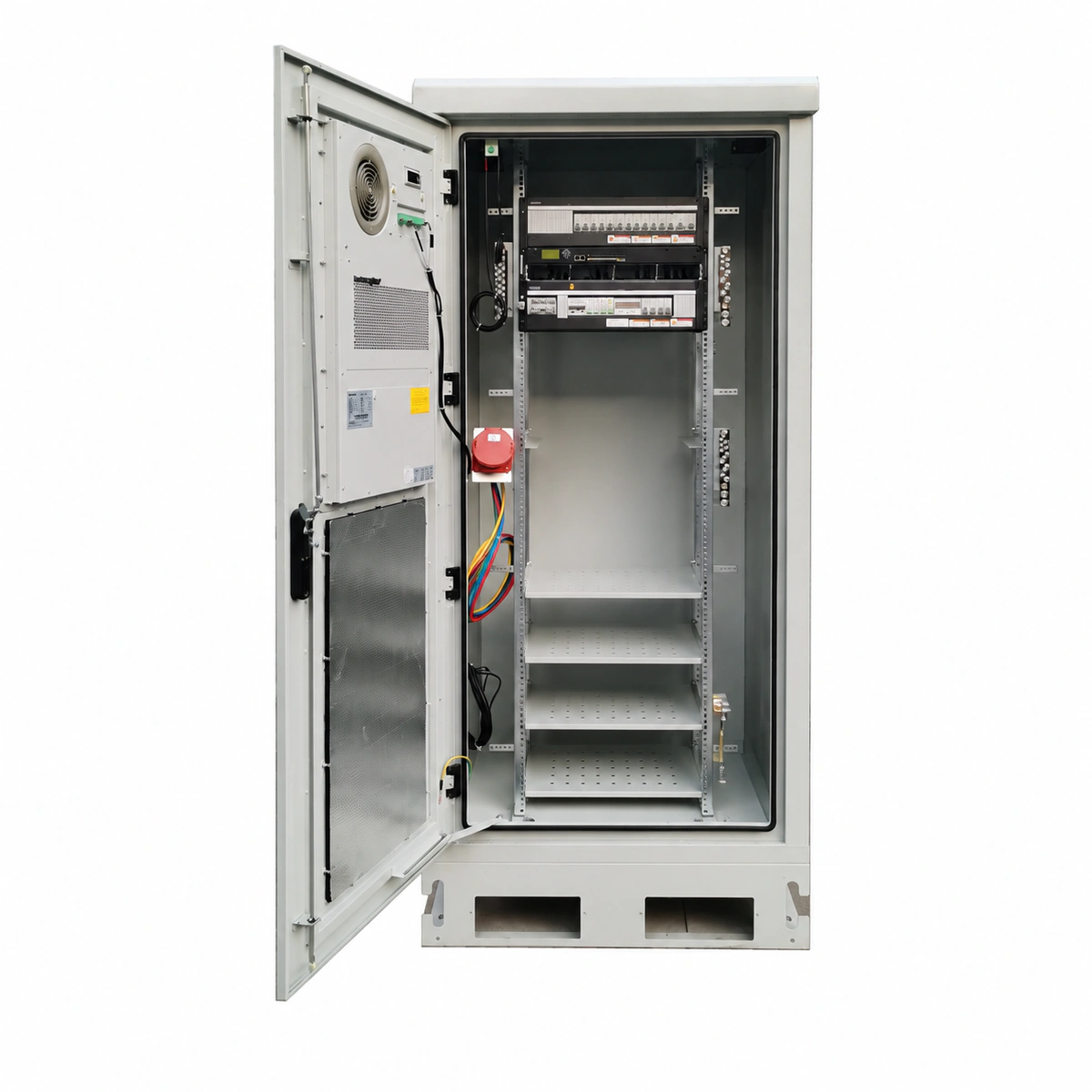

The Huawei 2.1m Outdoor Telecom Power Cabinet delivers mission-critical power for demanding telecom environments. Constructed with dimensions of 900×900×2100 mm, it features a dual-compartment isolation structure that separates active transmission hardware from energy storage batteries. Integrated with Huawei's ETP4850G embedded power sub-rack, it accommodates modular 50A hot-swappable rectifiers delivering >96% conversion efficiency and 200A–300A continuous DC capacity. Thermal regulation is managed through independent heat exchanger/air conditioning for the equipment chamber and dedicated direct ventilation for the battery compartment. With rugged IP55 ingress sealing, anti-theft locking, and a wide operating temperature span of -40°C to +55°C, this system ensures uninterrupted operational stability.
The Huawei 2.1m Outdoor Telecom Power Cabinet is an industrial-grade infrastructure integrating the ETP4850G high-efficiency rectifier system and DC PDU within an IP55 dual-compartment enclosure, delivering 200A to 300A regulated -48V DC power for macro base stations and remote aggregation sites.
| Key specifications | Value |
|---|---|
| Cabinet Physical Height | 2.1m Heavy-Duty Outdoor Dual-Bay Compartmentalized Enclosure (2100mm H) |
| Built-in Power Subsystem | Integrated Huawei ETP4850G 50A Ultra-HE Power Shelf |
| Total DC Distribution Capacity | 200A ~ 300A Generous DC Distribution Capacity & Battery Landings |

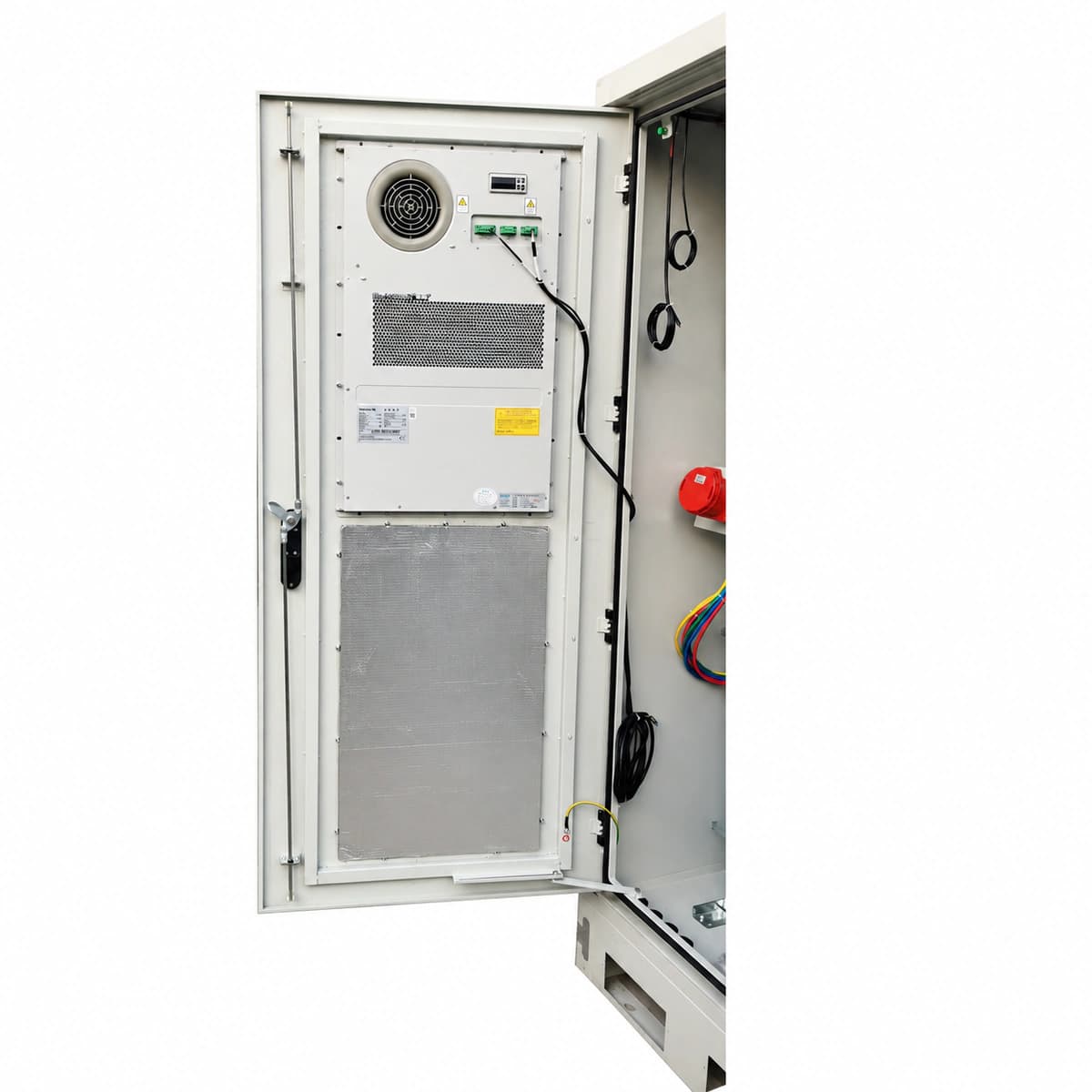

| Thermal Management Architecture | Equipment Bay Heat Exchanger/AC + Battery Bay Direct Air Ventilation |
| Protection Rating | IP55 Industrial Vandal-Resistant Anti-Corrosion Sealed Structure |
| Internal Battery Storage Space | Supports Installation of 2~4 Strings of 100Ah~150Ah LiFePO4/VRLA Batteries |
| Physical Dimensions Spec | 900 × 900 × 2100 mm (Includes Base Plinth with Vermin Mesh) |
| Operating Temperature | -40°C ~ +55°C Harsh All-Weather Outdoor Operational Rating |
