DpcModel: DUMC-4850H

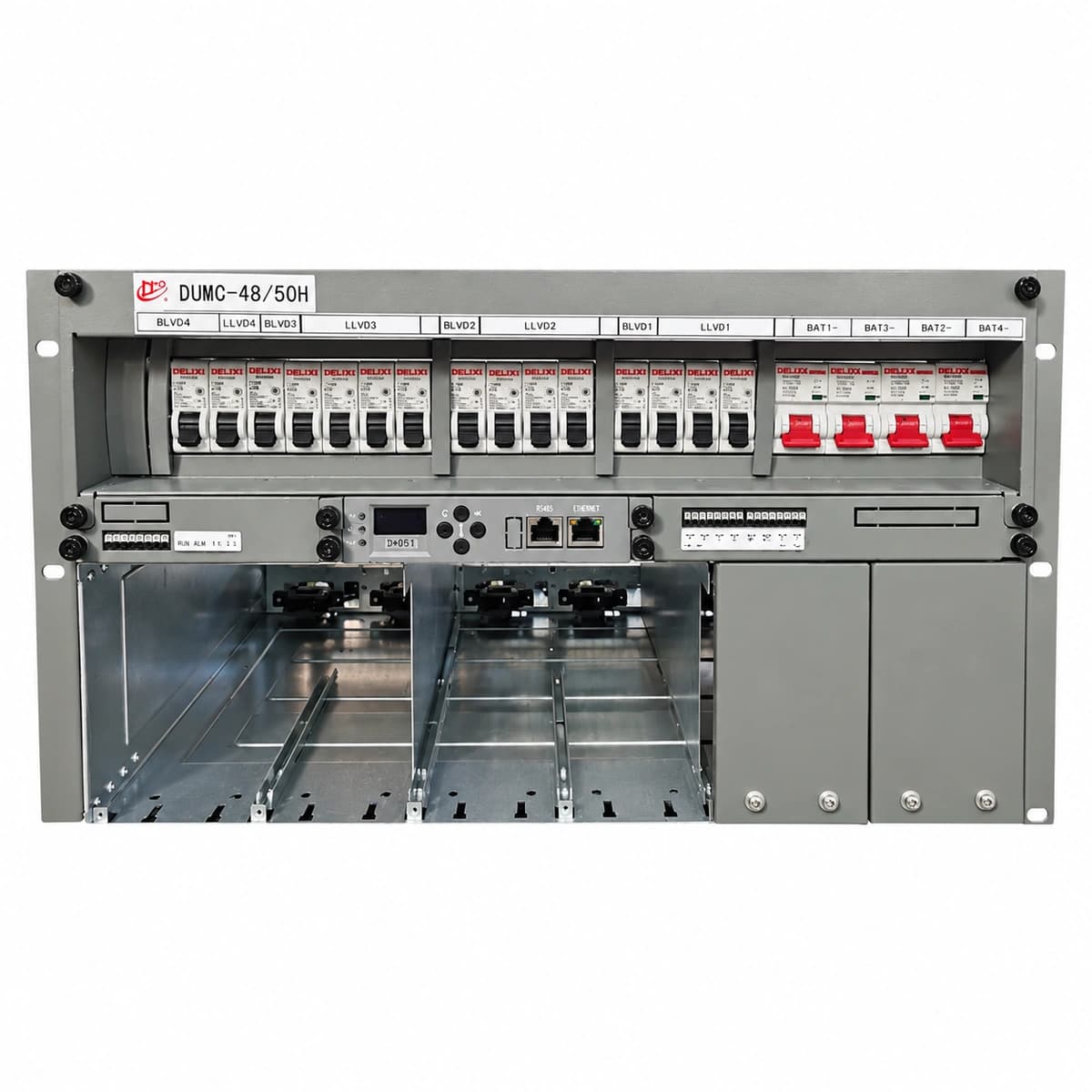

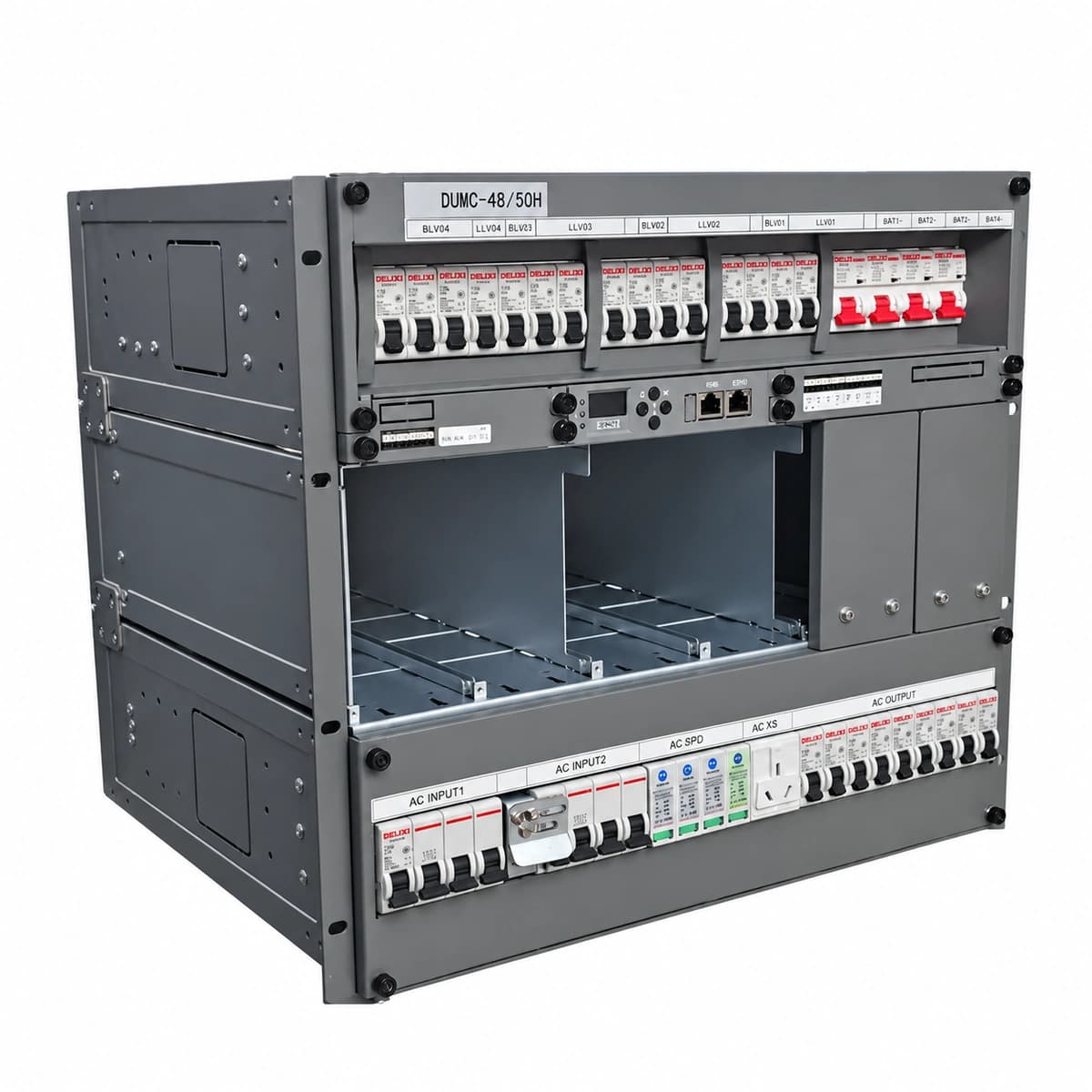

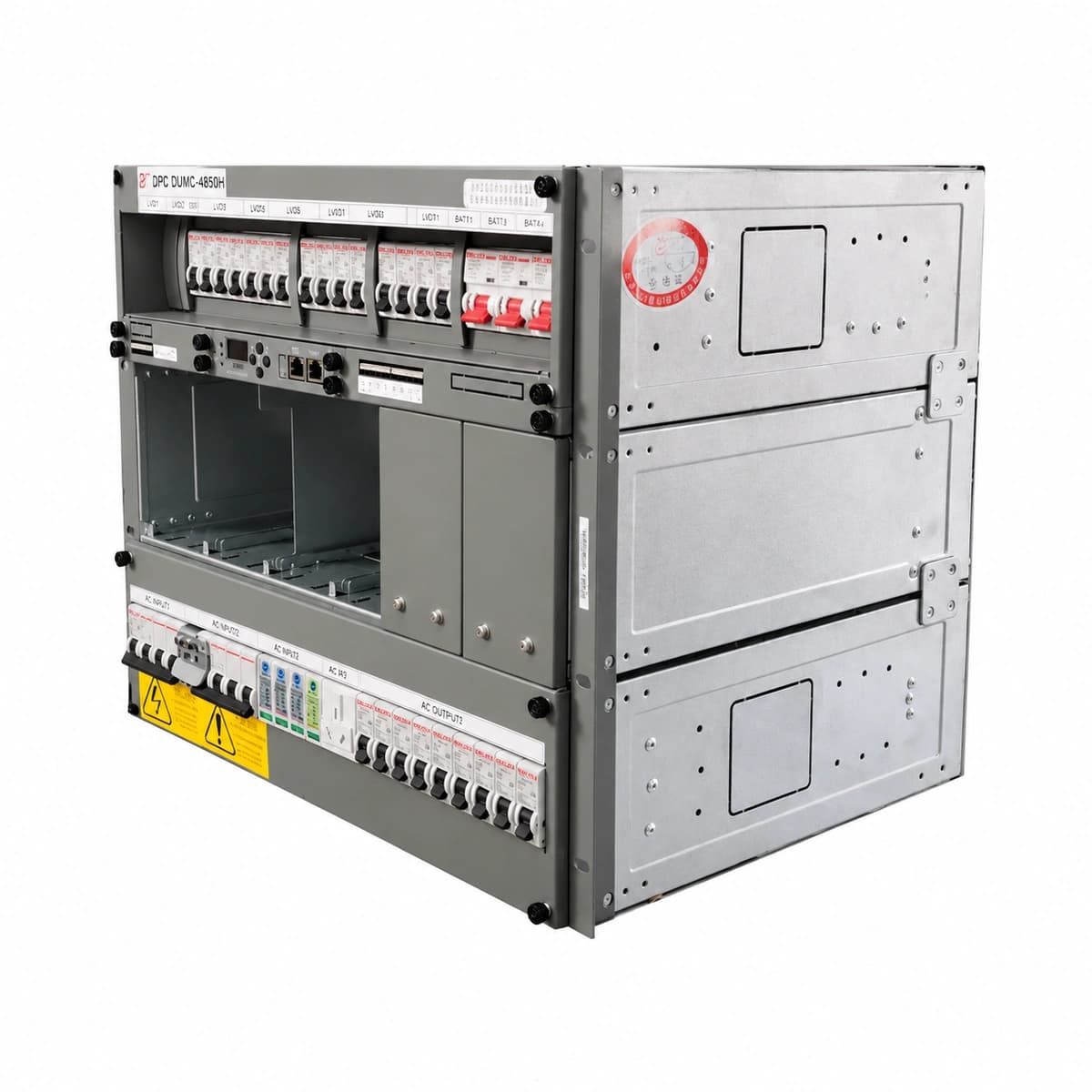

DPC DUMC-4850H Compact Subrack Telecom DC Power System (-48V 50A 1U)
The DUMC-4850H is a 1U compact -48V 50A embedded high-frequency switched-mode DC power system engineered for telecom access networks, wireless cellular sites, and industrial edge computing nodes.
Pricing is confirmed by project configuration and quantity
Request a quote- Nominal Output Voltage
- -48VDC VDC
- AC Input Voltage Range
- 85VAC ~ 300VAC (Nominal 220VAC) VAC
- Rated Output Current
- 50A (System Capacity 2.9kW)
- Peak Conversion Efficiency
- ≥95.5%
- Managed Rectifier Capacity
- 1 × 50A (Built-in DZY-4850HI Rectifier)
- Smart Monitoring Controller
- DK04 Embedded Controller Unit
What this product is
What this product is
The DPC DUMC-4850H is a standardized 19-inch rack-mounted DC power architecture integrating high-efficiency switch-mode rectifiers, a digital Central Supervisory Unit (CSU), and an integrated AC/DC distribution block. It converts raw utility or generator AC power into clean, regulated -48V DC to power sensitive telecom active loads while maintaining float charging on back-up batteries with zero-millisecond transition during grid dropouts.
What problem it solves
Mitigates severe physical footprint constraints inside outdoor telecom enclosures, protects critical communications electronics against severe grid fluctuations (85VAC to 300VAC), and prevents catastrophic battery degradation through precision multi-stage charging and dual LVD controls.
Who and where it is for
4G/5G small cell base stations, RRU distributed power feeds, broadband enterprise access nodes, rail signaling shelters, roadside ITS cabinets, and ruggedized edge computing hubs.
Core advantages
- Ultra-dense 1U rack-mount chassis optimizes valuable vertical payload capacity in cramped telecom cabinets.
- High conversion efficiency of ≥96.0%, reducing operational thermal dissipation and overall site HVAC cooling overhead.

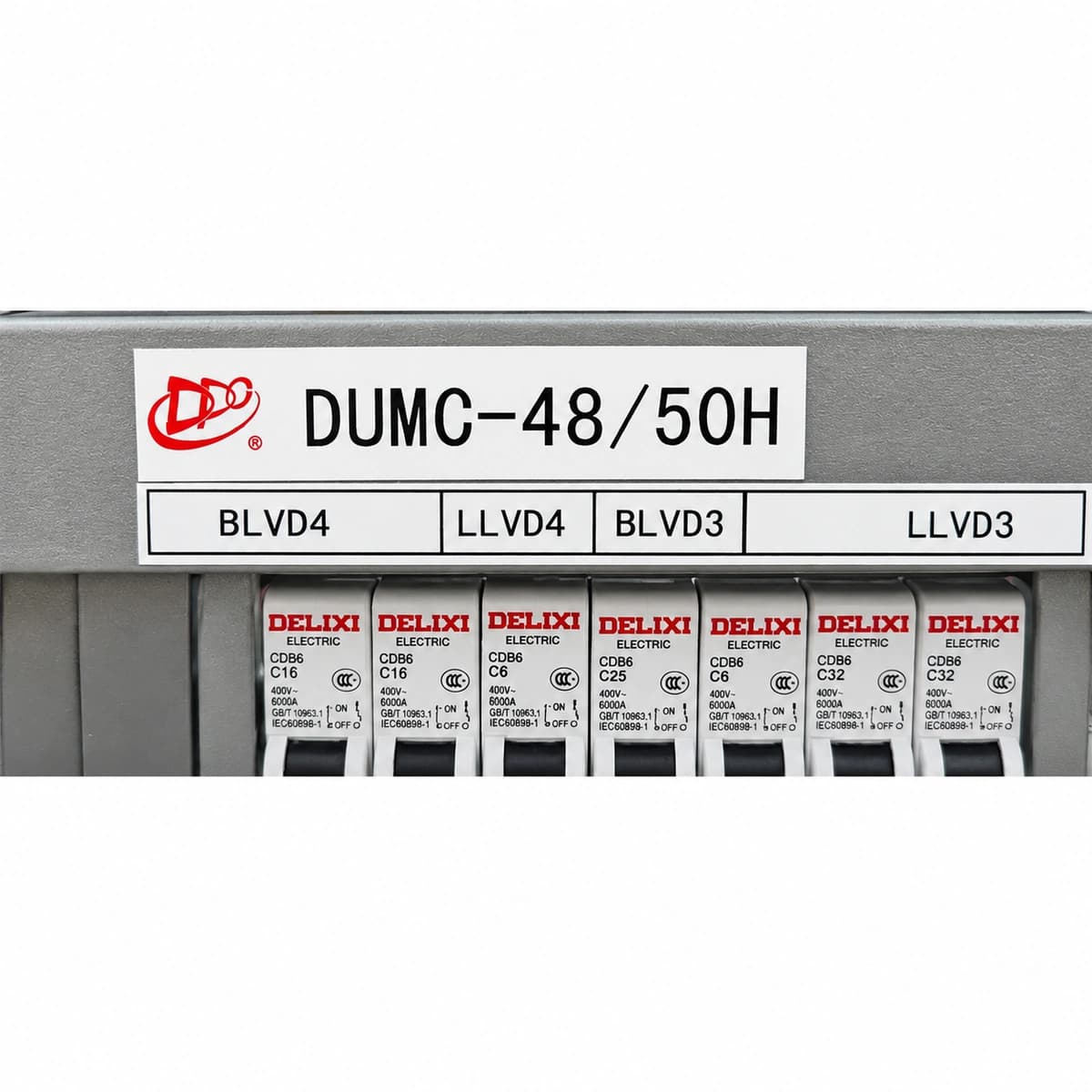

- Integrated dual-level Low Voltage Disconnect (LLVD non-critical load drop and BLVD battery protection) to avert permanent battery pack sulfation or over-discharge.
Technical specifications
| Key specifications | Value |
|---|---|
| Smart Monitoring Controller | DK04 Embedded Controller Unit |
| AC Input Voltage Range | 85VAC ~ 300VAC (Nominal 220VAC) VAC |
| Cooling Method | Low-noise temperature-controlled cooling |
| Nominal Output Voltage | -48VDC VDC |
| Managed Rectifier Capacity | 1 × 50A (Built-in DZY-4850HI Rectifier) |
| Rated Output Current | 50A (System Capacity 2.9kW) |
| Form Factor Dimensions (HxWxD) | 44 (1U) × 482 × 290 mm |
| Peak Conversion Efficiency | ≥95.5% |
| Operating Temperature Range | -30°C ~ +60°C |
Applications
01
Cellular macro and small-cell 48V telecom infrastructure
02
FTTH/FTTC optical line terminal (OLT) DC central distribution
03
Edge computing and intelligent highway ITS telemetry power
Frequently asked questions
Continue exploring
Dpc

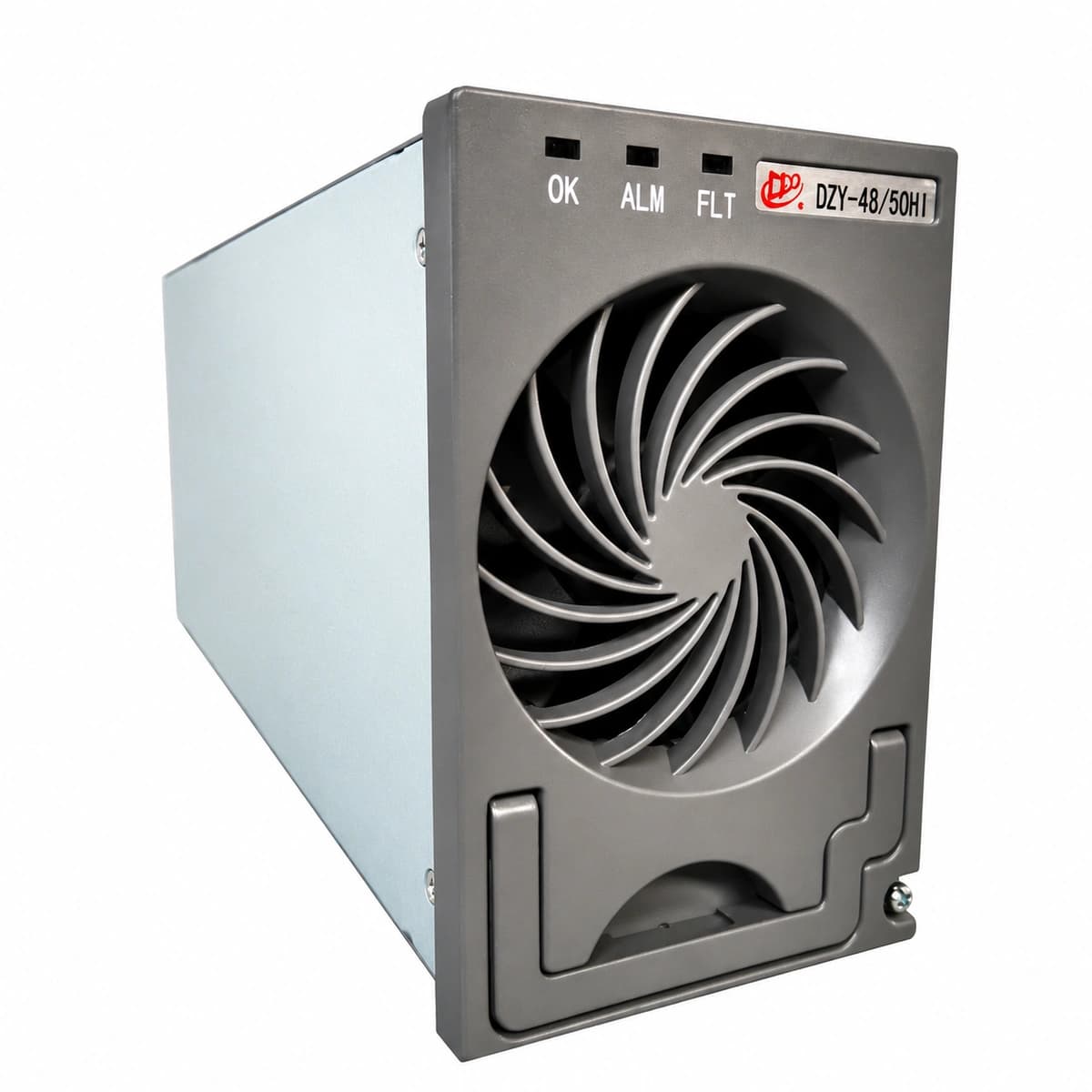

DPC DZY-4850HI High-Efficiency Telecom Switch-Mode Rectifier Module (-48V 50A 2900W)
