DpcModel: DPC DZY-48/50H III Telecom Rectifier Module

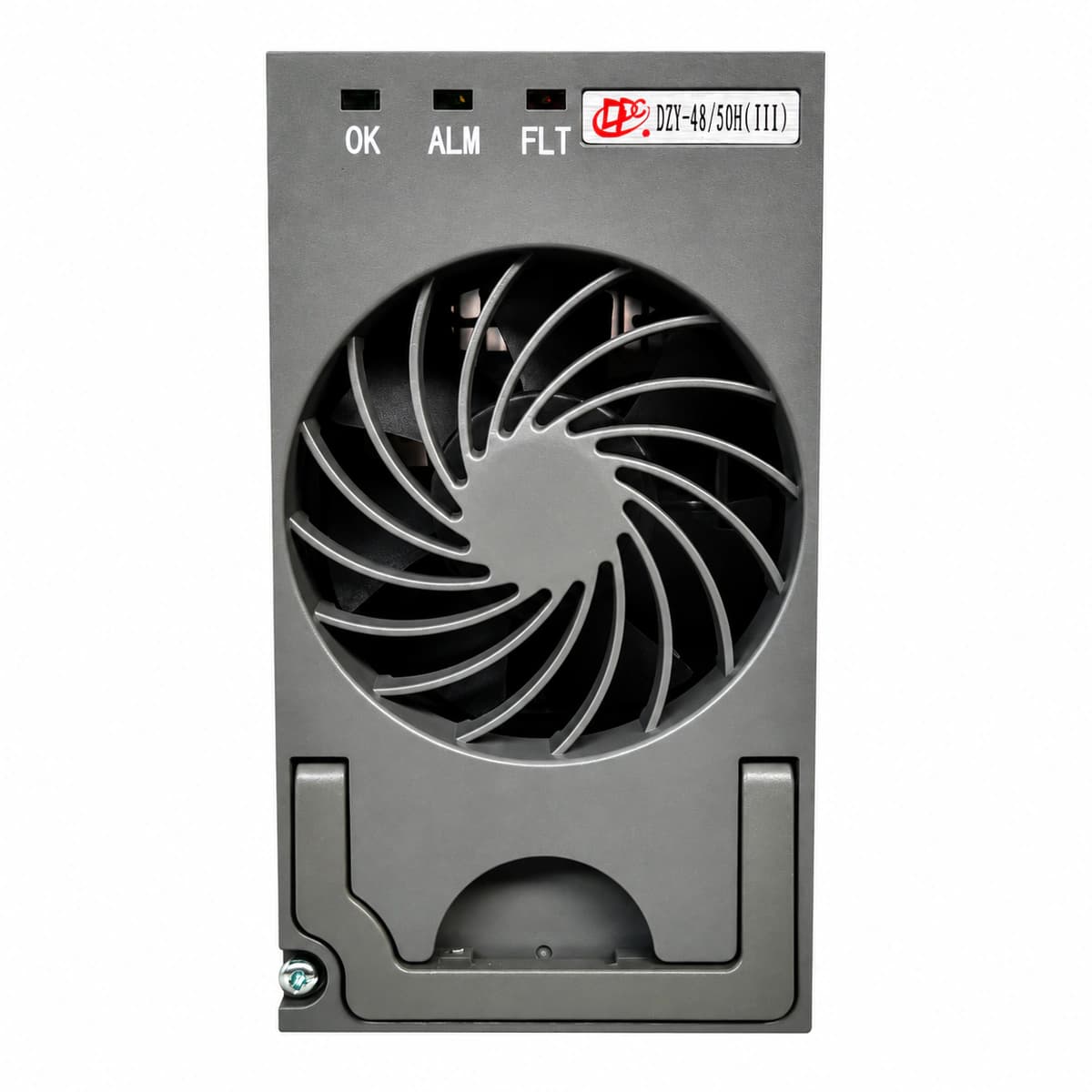

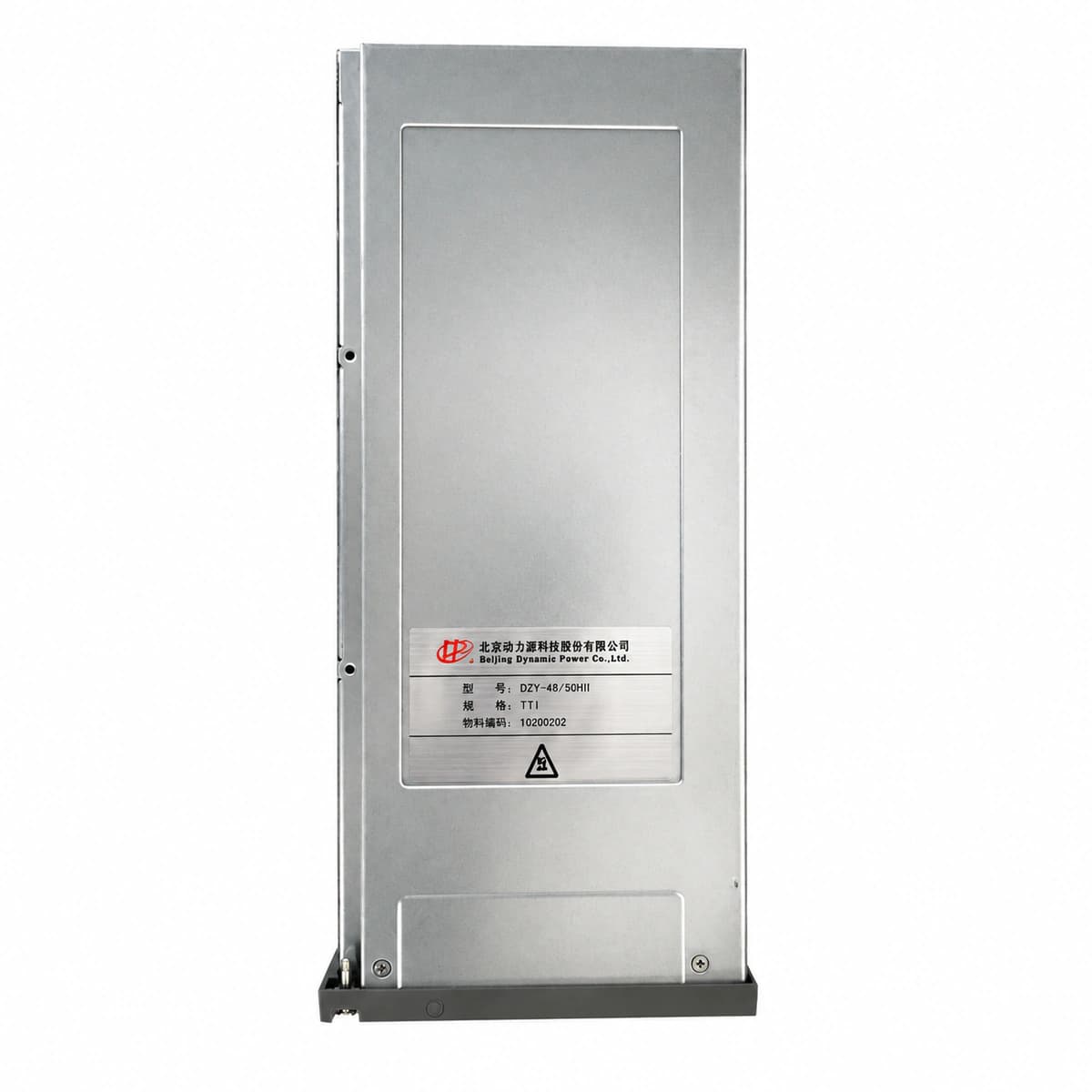

DPC DZY-48/50H III Telecom Rectifier Module -48V 50A 2900W Hot-Swappable PSU
The DPC DZY-48/50H III is an industrial-grade 2900W -48V/50A switch-mode telecom rectifier module designed for BTS and DC plant cabinets. Utilizing full digital DSP control and soft-switching topology, it converts 85V~300V AC utility power into stabilized -48V DC, supporting hot-swap insertion and active autonomous current sharing.
Pricing is confirmed by project configuration and quantity
Request a quote- Rated Output Power
- 2900W industrial telecom-grade rated output power
- Nominal DC Output Voltage
- -48V DC (float/equalize charge range -42V to -58V DC)
- Rated Output Current
- 50A continuous stable high-current supply
- Power Conversion Efficiency
- ≥ 95.5% digital high-frequency soft-switching conversion efficiency
- AC Input Voltage Range
- 85V AC to 300V AC (ultra-wide single-phase AC adaptive)
- Hot-Swap Capability
- Fully digital intelligent hot-swappable design with autonomous current sharing control
What this product is
What this product is
The DPC DZY-48/50H III is an industrial-grade 2900W -48V/50A switch-mode telecom rectifier module designed for BTS and DC plant cabinets. Utilizing full digital DSP control and soft-switching topology, it converts 85V~300V AC utility power into stabilized -48V DC, supporting hot-swap insertion and active autonomous current sharing.
What problem it solves
The DPC DZY-48/50H III rectifier module combines advanced pulse-width modulation (PWM) with zero-voltage switching (ZVS) resonant topology. It delivers a nominal -48V DC output, continuous 50A load capability, and 2900W rated output power with peak conversion efficiency exceeding 95.5%. Integrated power factor correction (PFC) achieves up to 0.99 under fluctuating grid conditions. Engineered for 19-inch telecom sub-racks, the module features a front-to-back intelligent forced-air cooling duct with dynamic thermal speed regulation. The gold-plated rear blind-mate connector enables safe, live hot-swapping. Autonomous analog/digital bus current sharing ensures load unbalance remains under 3% across multi-module parallel architectures without central controller dependency. Comprehensive monitoring is established via isolated RS485 and CAN serial buses, supporting standard industrial monitoring protocols. Protection circuits provide AC over/under-voltage shutdown, DC over-voltage latching, continuous short-circuit protection, and intelligent thermal power derating, ensuring over 300,000 hours MTBF across extreme ambient conditions from -25°C to +70°C.
Who and where it is for
The DPC DZY-48/50H III is an industrial-grade 2900W -48V/50A switch-mode telecom rectifier module designed for BTS and DC plant cabinets. Utilizing full digital DSP control and soft-switching topology, it converts 85V~300V AC utility power into stabilized -48V DC, supporting hot-swap insertion and active autonomous current sharing.
Core advantages
- Advanced full-digital soft-switching technology delivering ≥95.5% efficiency
- Ultra-wide 85V to 300V AC input tolerance for volatile grid conditions
- Active autonomous current-sharing circuitry keeps unbalance under 3%
- Telecom-standard blind-mate hot-pluggable design for zero-downtime maintenance
- Temperature-governed dual-ball fan lowers acoustic noise and dust accumulation
- Robust hardware protection against overvoltage, overload, and thermal stress
Technical specifications
| Key specifications | Value |
|---|---|
| Rated Output Power | 2900W industrial telecom-grade rated output power |
| Nominal DC Output Voltage | -48V DC (float/equalize charge range -42V to -58V DC) |
| Rated Output Current | 50A continuous stable high-current supply |
| Power Conversion Efficiency | ≥ 95.5% digital high-frequency soft-switching conversion efficiency |
| AC Input Voltage Range | 85V AC to 300V AC (ultra-wide single-phase AC adaptive) |
| Hot-Swap Capability | Fully digital intelligent hot-swappable design with autonomous current sharing control |
| Cooling Method | Built-in intelligent temperature-controlled forced-air cooling duct |
| Operating Temperature | -25°C to +70°C |
Applications
01
Carrier-grade 4G/5G macro and micro base transceiver stations (BTS)
02
Electrical utility substation DC distribution and protection switchgear
03
Railway signaling, communications, and dispatch control power networks
04
Oil & gas offshore platforms and pipeline SCADA automation systems
