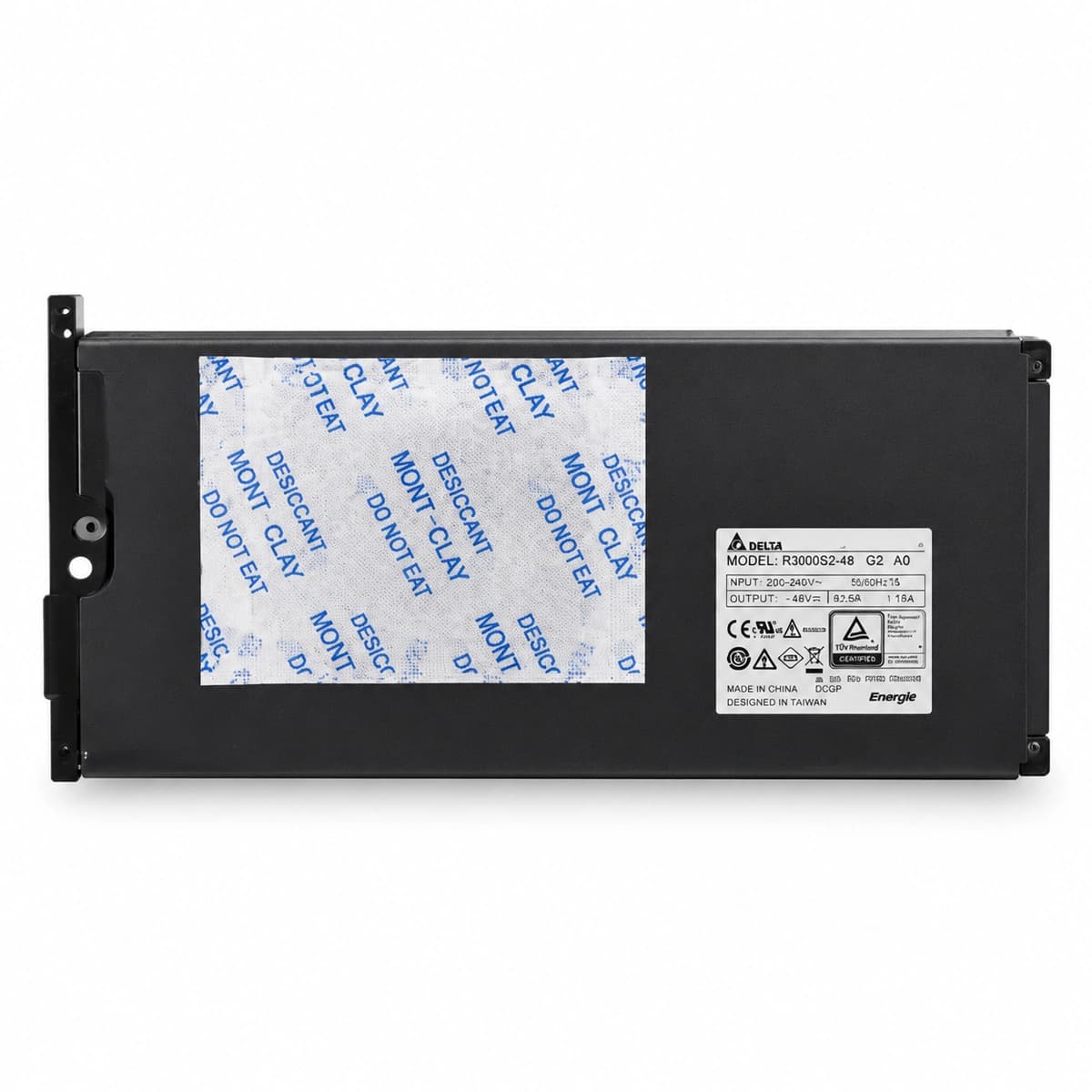

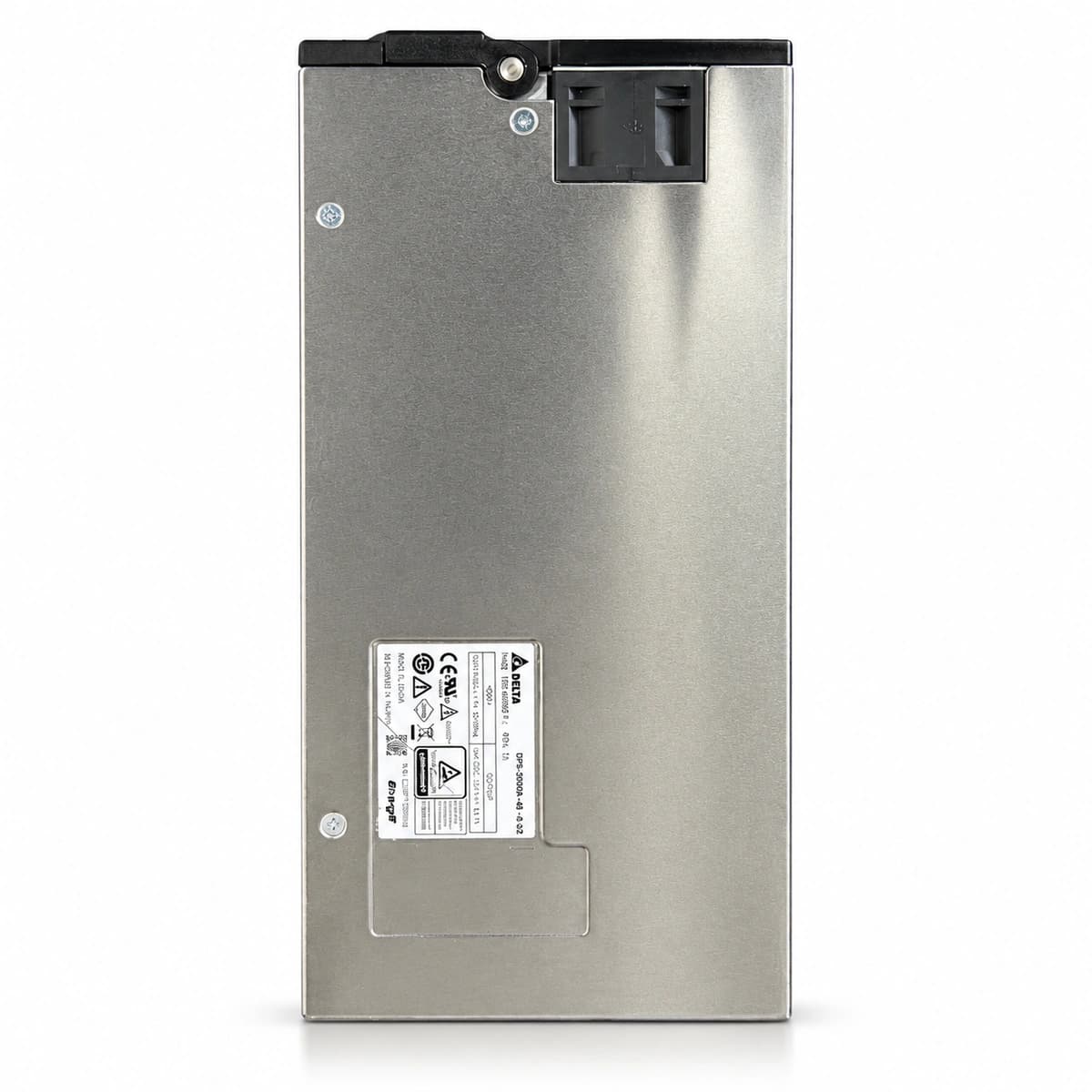

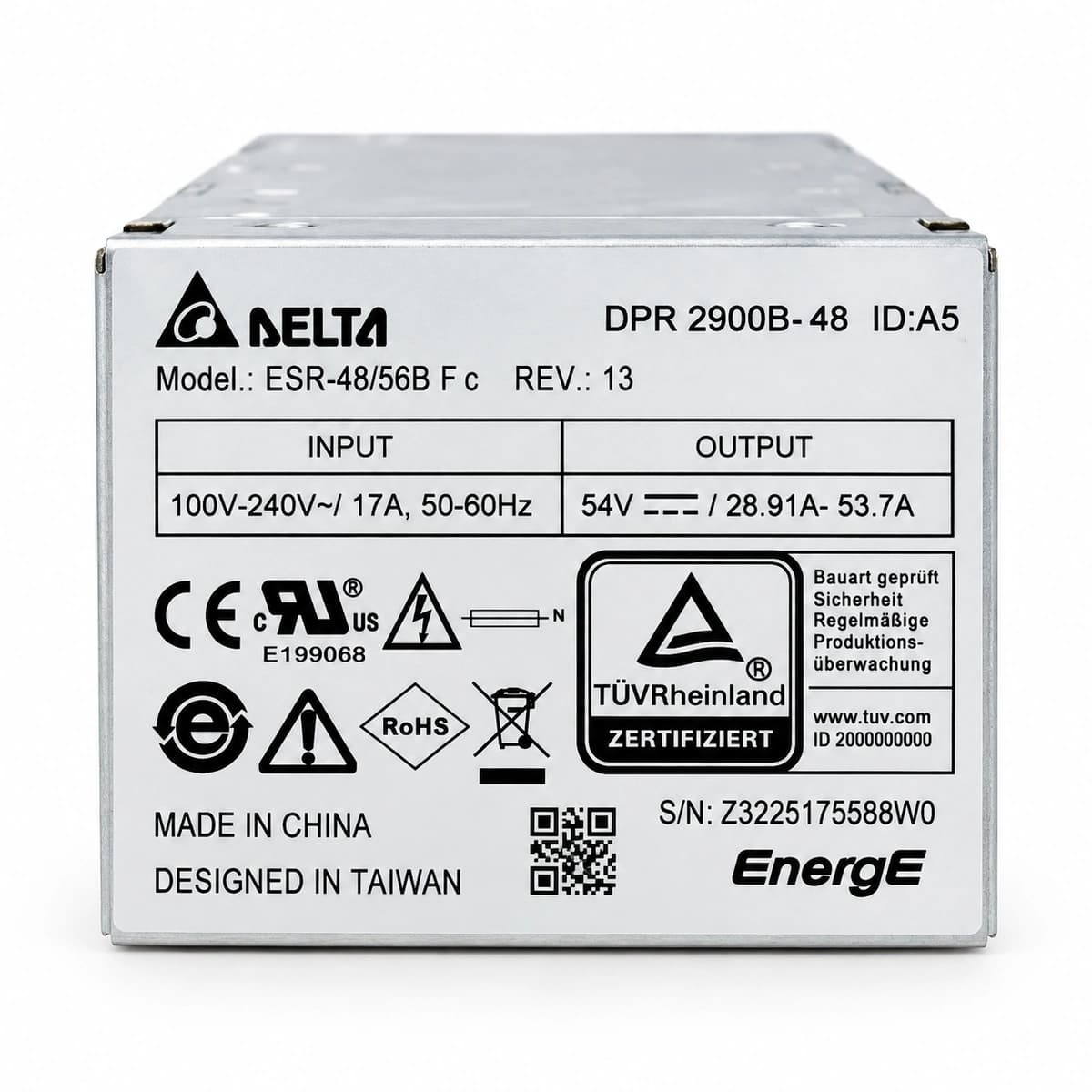

The Delta ESR-48/56BF is a carrier-grade high-frequency switch-mode rectifier module delivering a rated 54V/56A output with a continuous capacity of 3000W, designed for telecom DC power plants and critical industrial infrastructure.
Pricing is confirmed by project configuration and quantity
Request a quoteThe ESR-48/56BF utilizes a sophisticated dual-stage power conversion architecture: the input stage incorporates an active boost power factor correction (PFC) circuit ensuring a power factor near unity with total harmonic distortion (THD) under 5%; the isolated conversion stage employs a full-bridge LLC resonant DC-DC topology governed by a high-performance digital signal processor (DSP). An auxiliary microcontroller (MCU) alongside an isolated CAN bus interface continuously monitors AC mains status, DC bus ripple, power MOSFET thermal dissipation, and internal fan tachometer feedback, executing real-time control and diagnostic reporting to the system supervisory unit.
Eliminates power failure risks caused by severe grid sags, surges, and overvoltage events in remote utility environments; resolves thermal throttling and component degradation in high-density outdoor cabinets via an optimized internal aerodynamic wind tunnel; and prevents single-point cascade failures through precise autonomous active current-sharing among parallel modules.
Tailored for 5G/4G macro base station cabinets, centralized radio access networks (C-RAN BBU pools), enterprise edge computing data centers, railway signaling DC microgrids, and mission-critical SCADA power networks.
| Key specifications | Value |
|---|---|
| Rated Output Voltage | -48V DC (42V~58V) |
| Peak Conversion Efficiency | ≥ 96.0% |
| Operating Temperature Range | -40°C to +75°C |
| Cooling Method | Forced Air Cooling with Intelligent Speed Fan |
| Protection Features | Over-voltage, Short-circuit, Over-temperature, Surge |
| Hot-Swappable Support | Yes (Live Plug-and-Play Support) |
| Total Harmonic Distortion (THD) | ≤ 5% (Total Harmonic Distortion) |
| Rated Power Factor | ≥ 0.99 at Rated Load |
| Standard Compliance & Certifications | CE, UL, RoHS, IEC 60950, EN 300 386 |
