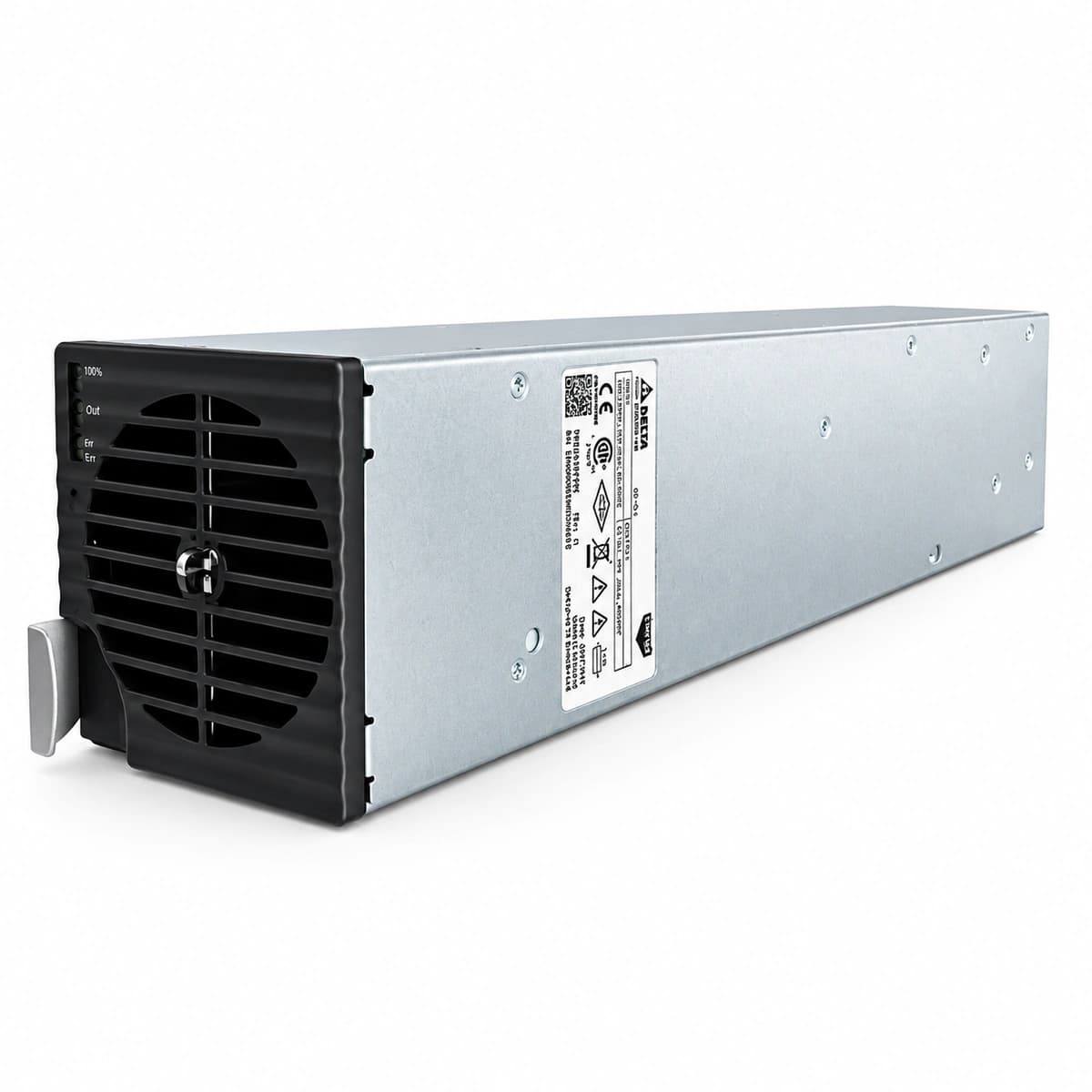

The Delta DPR4000B-48 is a carrier-grade, subrack-mountable high-power telecom switch-mode rectifier module delivering a nominal 54V DC output voltage, up to 74A continuous current, and 4000W rated output power to support mission-critical DC loads and battery backup systems.
Pricing is confirmed by project configuration and quantity
Request a quoteThe DPR4000B-48 consists of an input differential/common-mode EMI filter, transient surge suppression circuitry, a boost PFC stage, an isolated full-bridge LLC resonant DC-DC converter, and secondary synchronous rectification. Supervised by high-speed DSP controllers, the internal firmware regulates active input current wave-shaping, fast transient response, and active current-sharing bus communications, while feeding operational metrics to subrack controllers via an isolated CAN bus interface.
It eliminates telecom site outages caused by volatile rural grid profiles, extreme harmonic distortion, and deep voltage sags through an ultra-wide input envelope (85V to 300V AC). Furthermore, its intelligent thermal foldback management prevents sudden operational tripping under thermal stress, while true hot-plug modularity mitigates single points of failure without interrupting operational load buses.
5G and 4G macro telecom base stations, edge computing micro-datacenters, central office DC distribution systems, industrial automation DC auxiliary buses, and railway signaling and communication uninterruptible power systems.
| Key specifications | Value |
|---|---|
| Rated Output Voltage | -48V DC (42V~58V) |
| Peak Conversion Efficiency | ≥ 96.0% |
| Operating Temperature Range | -40°C to +75°C |

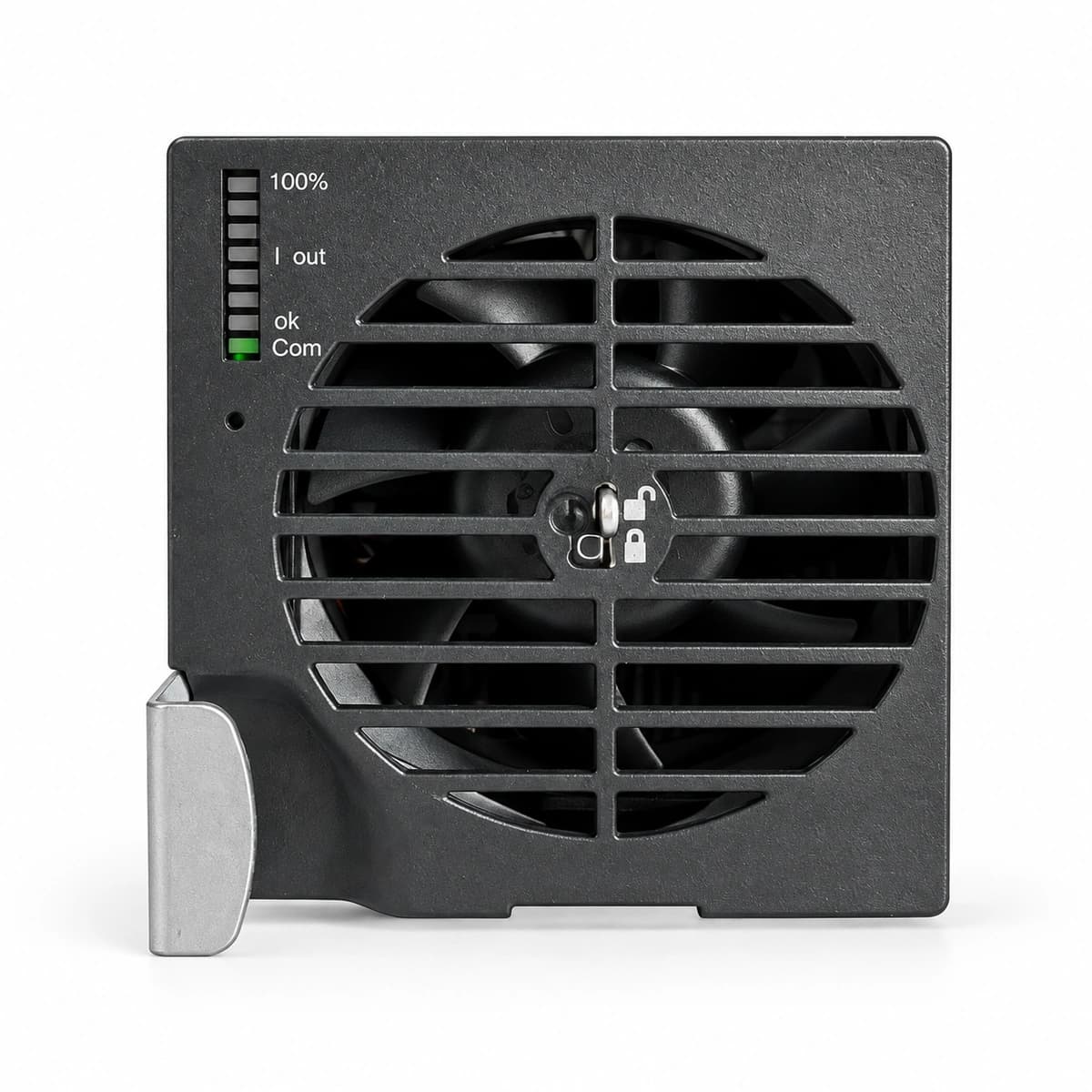

| Cooling Method | Forced Air Cooling with Intelligent Speed Fan |
| Protection Features | Over-voltage, Short-circuit, Over-temperature, Surge |
| Hot-Swappable Support | Yes (Live Plug-and-Play Support) |
| Total Harmonic Distortion (THD) | ≤ 5% (Total Harmonic Distortion) |
| Rated Power Factor | ≥ 0.99 at Rated Load |
| Standard Compliance & Certifications | CE, UL, RoHS, IEC 60950, EN 300 386 |
