HEFENGQIModel: Cabinet AC 1500W

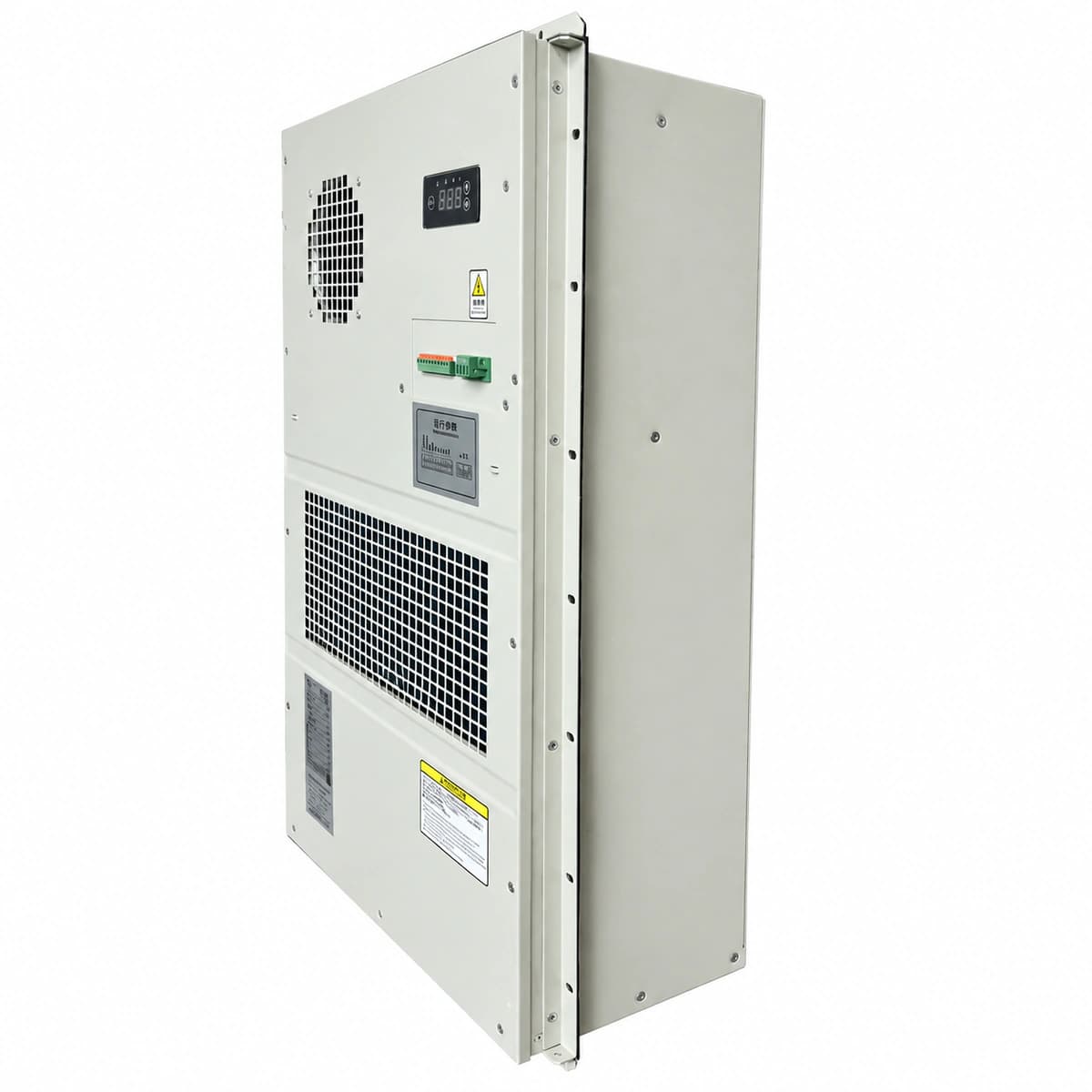

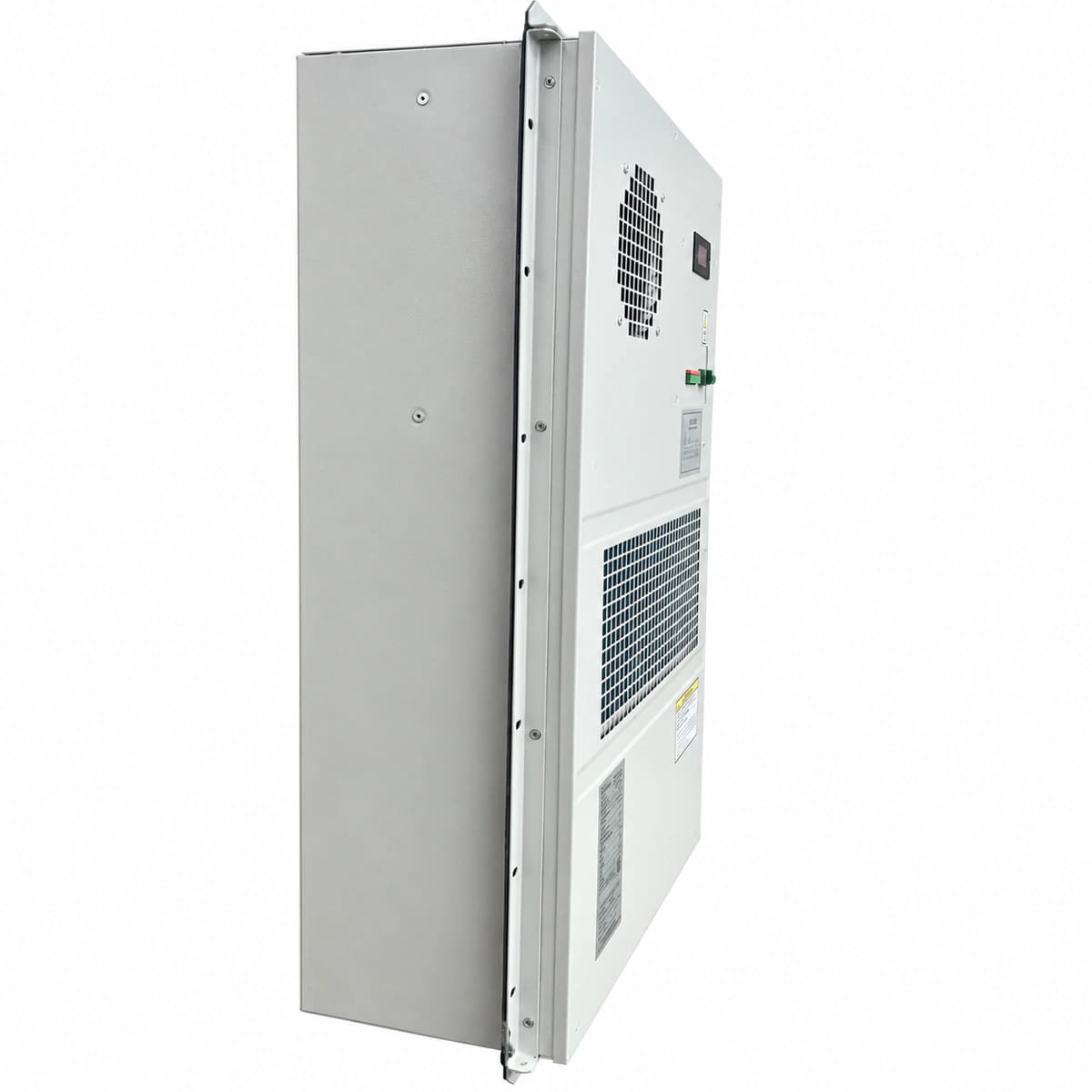

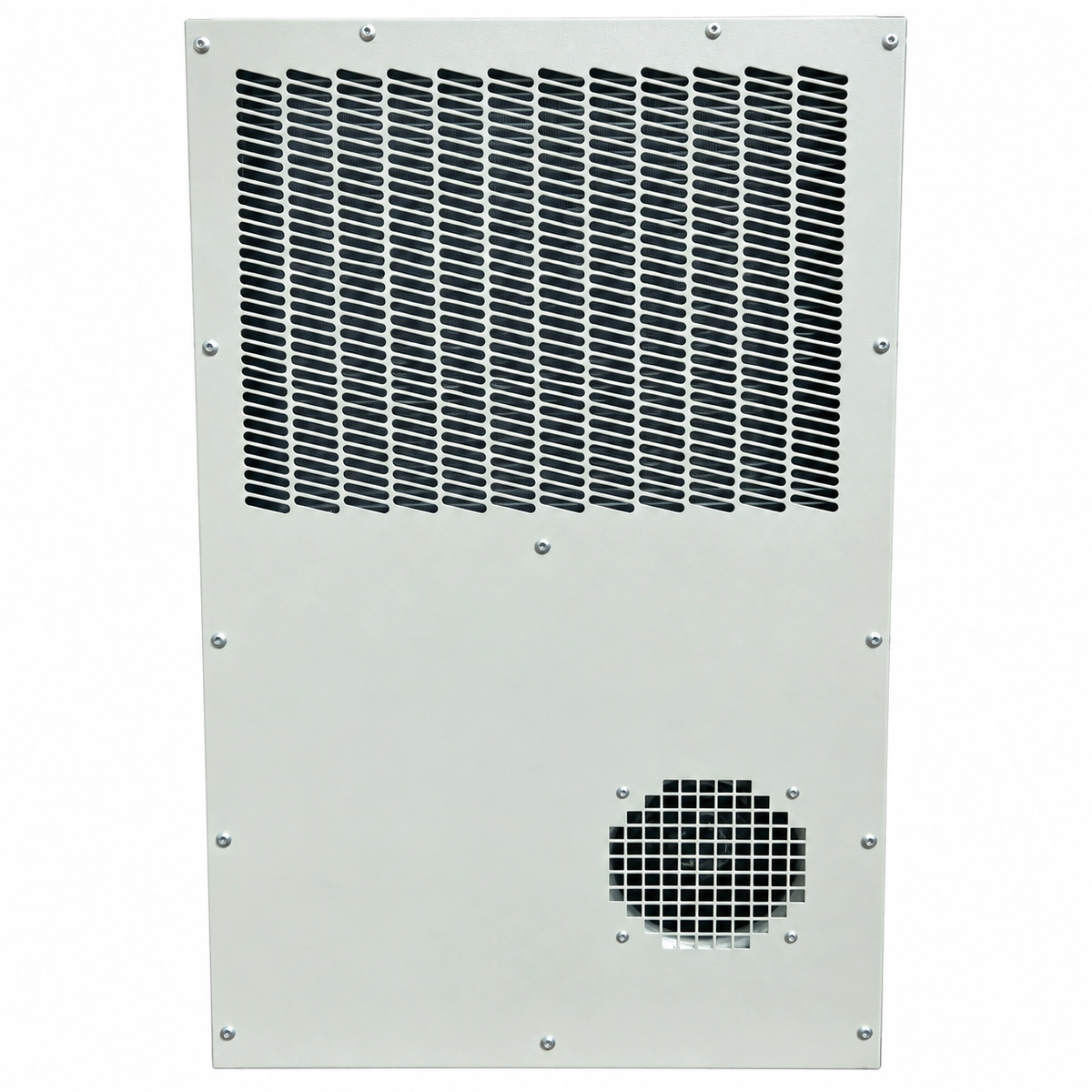

Outdoor Telecom Cabinet Industrial Air Conditioner AC 1500W (IP55 Door/Side Mount)
The Cabinet AC 1500W is an industrial-grade outdoor enclosure cooling unit providing 1500W of sensible refrigeration with IP55 internal loop isolation for telecom battery and electronics cabinets.
Pricing is confirmed by project configuration and quantity
Request a quote- Rated Cooling Capacity
- 1500 W
- Grid Power Supply System
- 220VAC / 50Hz (Single Phase) V AC
- Ingress Protection (IP Rating)
- Internal Loop IP55 / External Loop IP34 (Sealed Dust & Water Proof)
- Operating Temperature
- -40°C ~ +55°C (supports low-temperature startup)
- Physical Dimensions Spec
- 800 × 400 × 220 mm
- Installation / Mounting Mode
- Outdoor Cabinet External (Door-Mounted / Side Wall-Mounted)
What this product is
What this product is
External door-mount / side-mount industrial enclosure precision cooling system.
What problem it solves
Prevents thermal runaway and electronic equipment overheating inside sealed outdoor enclosures subjected to extreme solar radiation and ambient heat.
Who and where it is for
5G outdoor battery enclosures, highway ITS control cabinets, solar inverter housings, and industrial automation kiosks.
Core advantages
- 1500W robust cooling capacity with superior sensible heat ratio
- Closed-loop design provides complete IP55 dust and moisture isolation
- Digital microcomputer controller with auto-restart and dry contact alarms
- Anti-corrosion hydrophilic fins withstand harsh outdoor marine and industrial air
Technical specifications
| Key specifications | Value |
|---|---|
| Rated Cooling Capacity | 1500 W |
| Grid Power Supply System | 220VAC / 50Hz (Single Phase) V AC |
| Rated Input Power | 580 W |
| Max Operating Current | 3.2 A |
| Refrigerant Type | R134a Eco Refrigerant |
| Ingress Protection (IP Rating) | Internal Loop IP55 / External Loop IP34 (Sealed Dust & Water Proof) |
| Internal Airflow Volume | 320 m³/h |
| Operating Temperature | -40°C ~ +55°C (supports low-temperature startup) |
| Operating Noise Level | ≤ 60 dB(A) |
| Physical Dimensions Spec | 800 × 400 × 220 mm |
| Net Weight | 28.0 kg |
| Installation / Mounting Mode | Outdoor Cabinet External (Door-Mounted / Side Wall-Mounted) |
| Communication Interface | RS485 (Standard Modbus-RTU) + Dry Contact Alarm |
Applications
01
Outdoor telecom battery shelters
02
Highway electronic toll collection enclosures
03
Industrial automation harsh environment cabinets
Frequently asked questions
