Q: How does the ZXDU58 W121 withstand harsh operational environments, and what are its surge and battery protection mechanisms?

Engineered for robust enterprise applications, the system operates across -25°C to +65°C ambient temperatures (with linear derating starting above +55°C) utilizing speed-regulated forced-air cooling. It integrates Class C AC surge protection (Nominal In: 20kA, Max Imax: 40kA, 8/20μs surge waveform) against severe grid transients. For DC integrity, the distribution section features dual-stage Low Voltage Disconnect: LLVD (Load Low Voltage Disconnect for shedding non-critical loads) and BLVD (Battery Low Voltage Disconnect preventing catastrophic deep discharge), combined with CSU-driven precision battery thermal compensation.

Question 1

What are the core electrical specifications and power efficiency metrics of the ZTE ZXDU58 W121 DC power subrack?

Accepted Answer

The ZTE ZXDU58 W121 is a 3U 19-inch rack-mount -48V DC power system engineered for continuous output currents up to 120A. It features an ultra-wide AC input operating window of 85VAC to 290VAC (linear derating applies between 85VAC and 176VAC; full rated output between 176VAC and 290VAC, 45–65Hz). The DC output voltage is continuously regulated between -42V and -58V DC. Configured with high-efficiency rectifiers (such as ZXD1500 or ZXD2400 modules), system peak conversion efficiency exceeds 96%, with a power factor (PF) ≥0.99 and total harmonic distortion (THD) ≤5%, ensuring optimal thermal stability and energy conservation across telecommunication loads.

Question 2

What are the module slot compatibility, expansion architecture, and current-sharing capabilities of ZXDU58 W121?

Accepted Answer

Featuring standard 19-inch 3U dimensions (132mm H × 482mm W × 360mm D), the subrack accommodates either 4 × ZXD1500 (30A/unit) or 3 × ZXD2400 (50A/unit configured for capacity) rectifier module slots. Rectifiers support live hot-swapping and active autonomous current sharing with imbalance limited to <±5%. The architecture integrates an intelligent ZTE CSU-series supervisor via internal CAN/RS485 communication bus, enabling automated module topology discovery, autonomous cycle sleep-mode energy efficiency management, and precision bus telemetry without system disruption.

Question 3

How does the ZXDU58 W121 withstand harsh operational environments, and what are its surge and battery protection mechanisms?

Accepted Answer

Engineered for robust enterprise applications, the system operates across -25°C to +65°C ambient temperatures (with linear derating starting above +55°C) utilizing speed-regulated forced-air cooling. It integrates Class C AC surge protection (Nominal In: 20kA, Max Imax: 40kA, 8/20μs surge waveform) against severe grid transients. For DC integrity, the distribution section features dual-stage Low Voltage Disconnect: LLVD (Load Low Voltage Disconnect for shedding non-critical loads) and BLVD (Battery Low Voltage Disconnect preventing catastrophic deep discharge), combined with CSU-driven precision battery thermal compensation.

Key specifications	Value
AC Input Voltage Range	85VAC ~ 290VAC VAC
Nominal DC Output Voltage	-48 V DC
System Output Capacity	A
Rectifier Module Slots	4 × ZXD1500 / 3 × ZXD2400 Slots
Physical Dimensions Spec	132 (3U) × 482 × 360 mm
System Monitoring Controller	CSU series intelligent monitoring controller

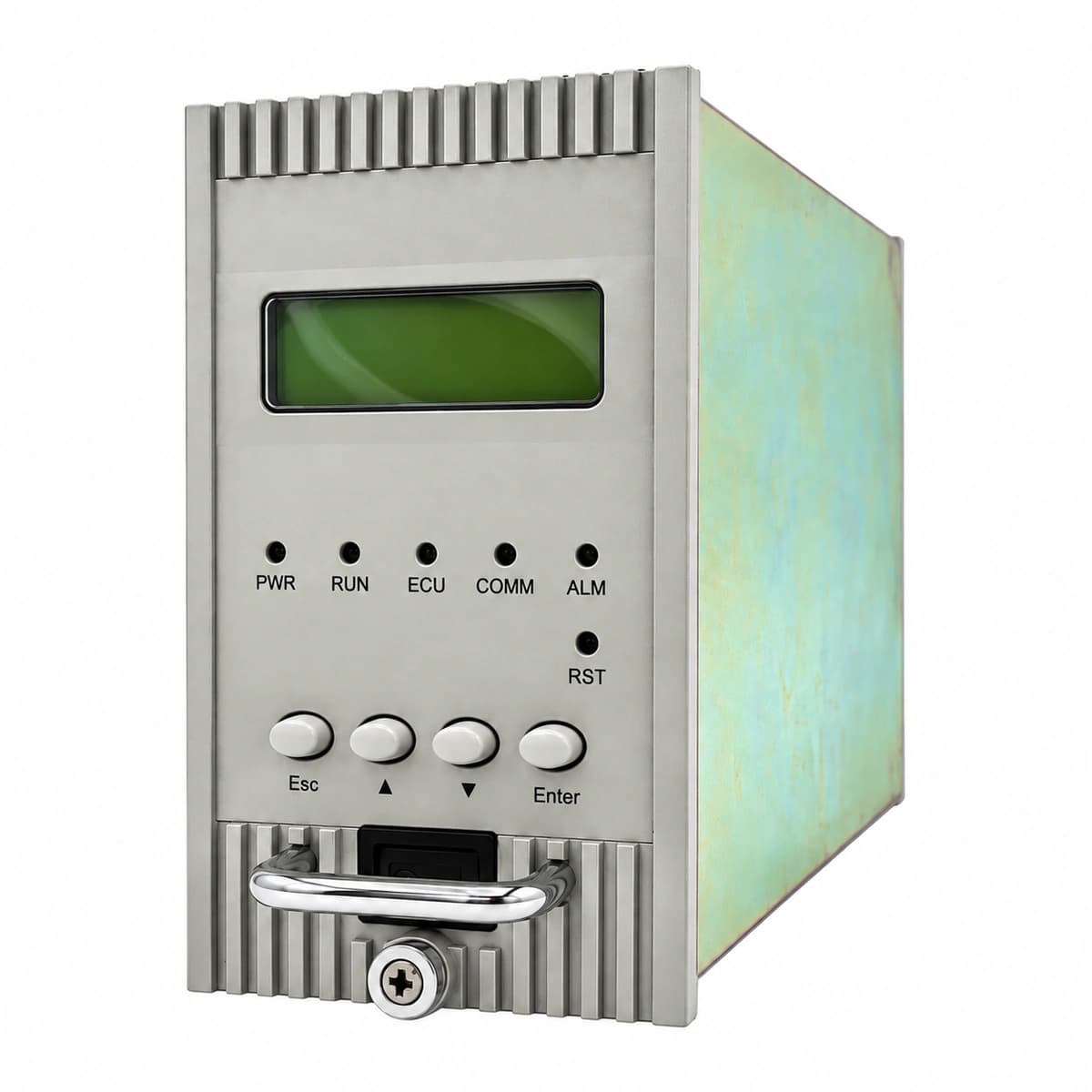

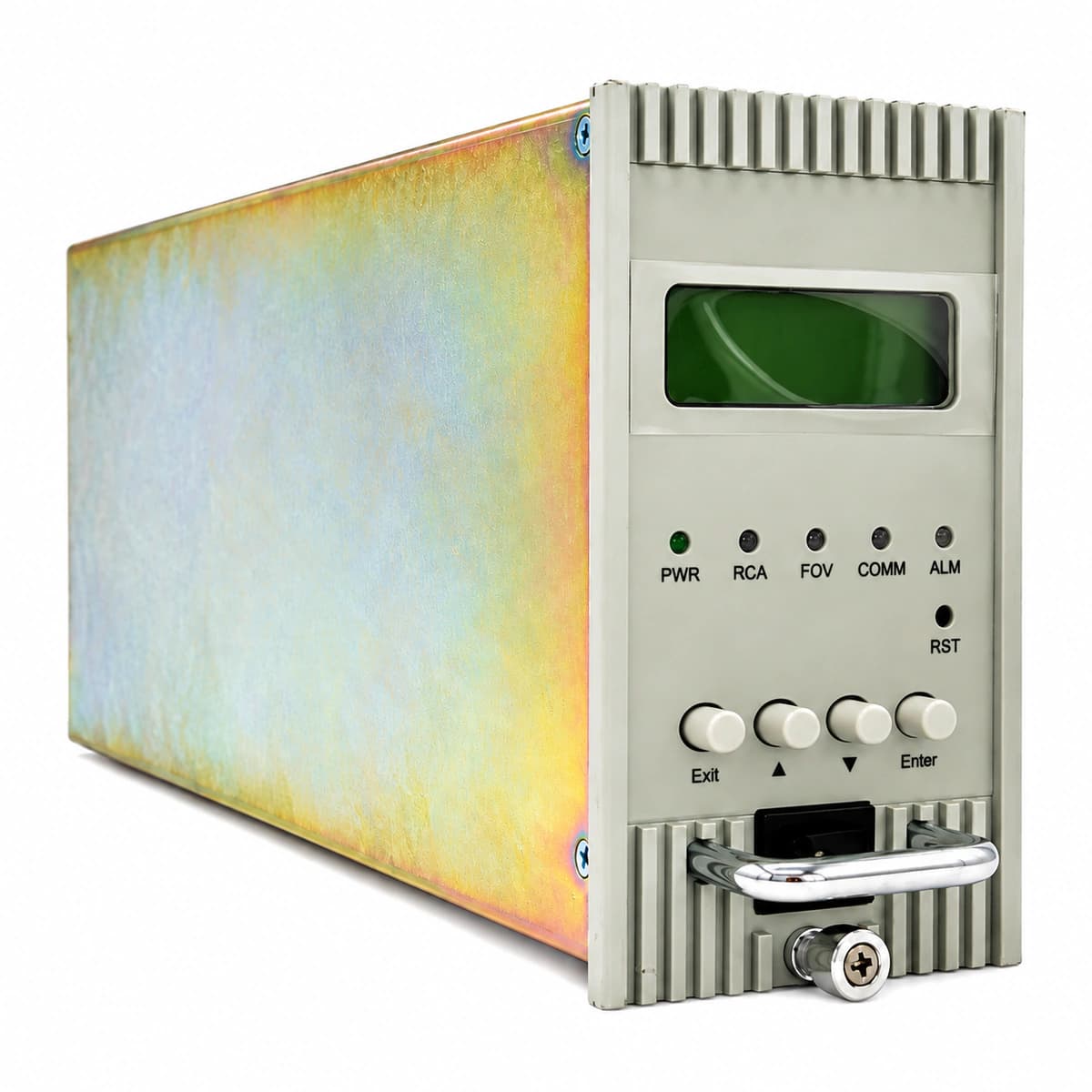

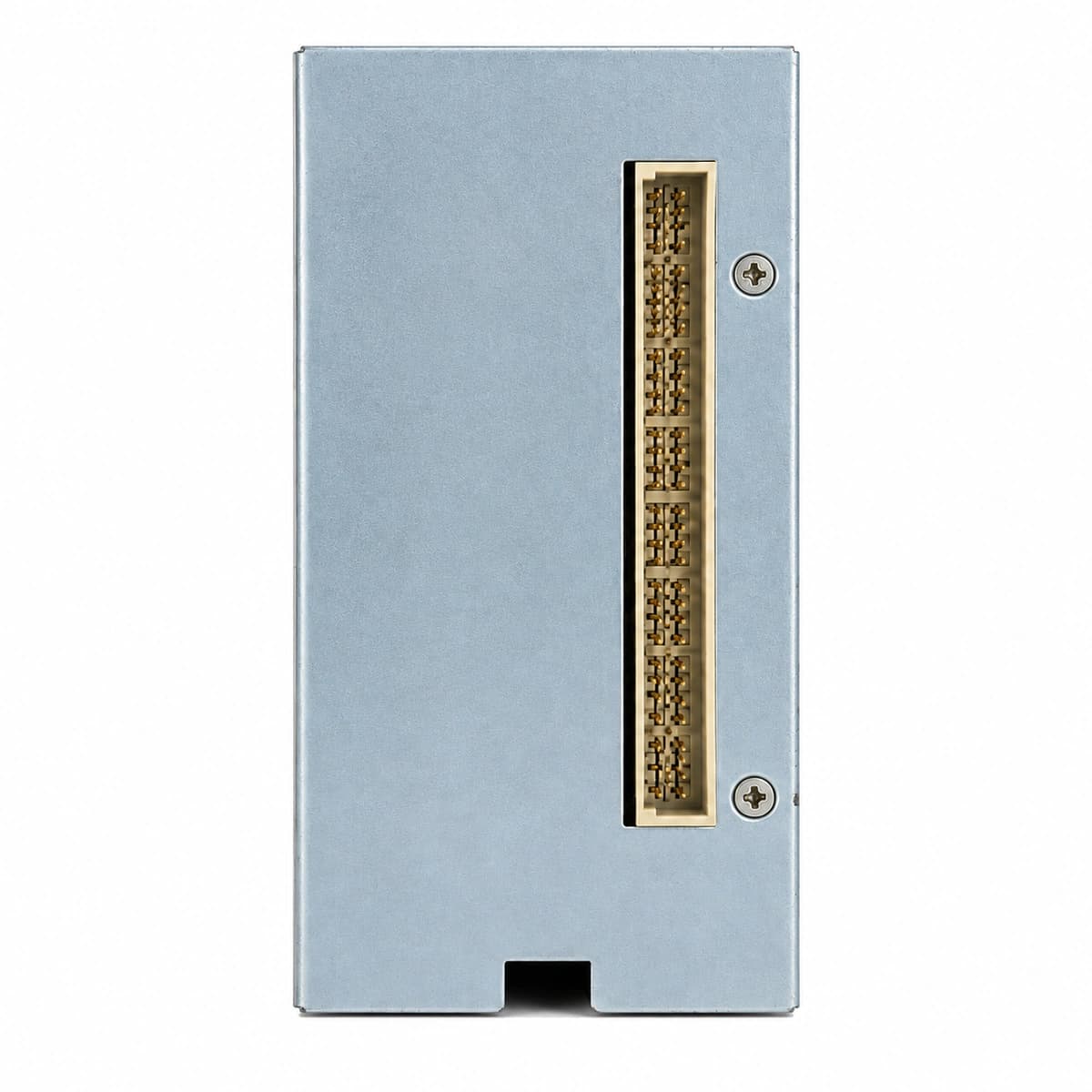

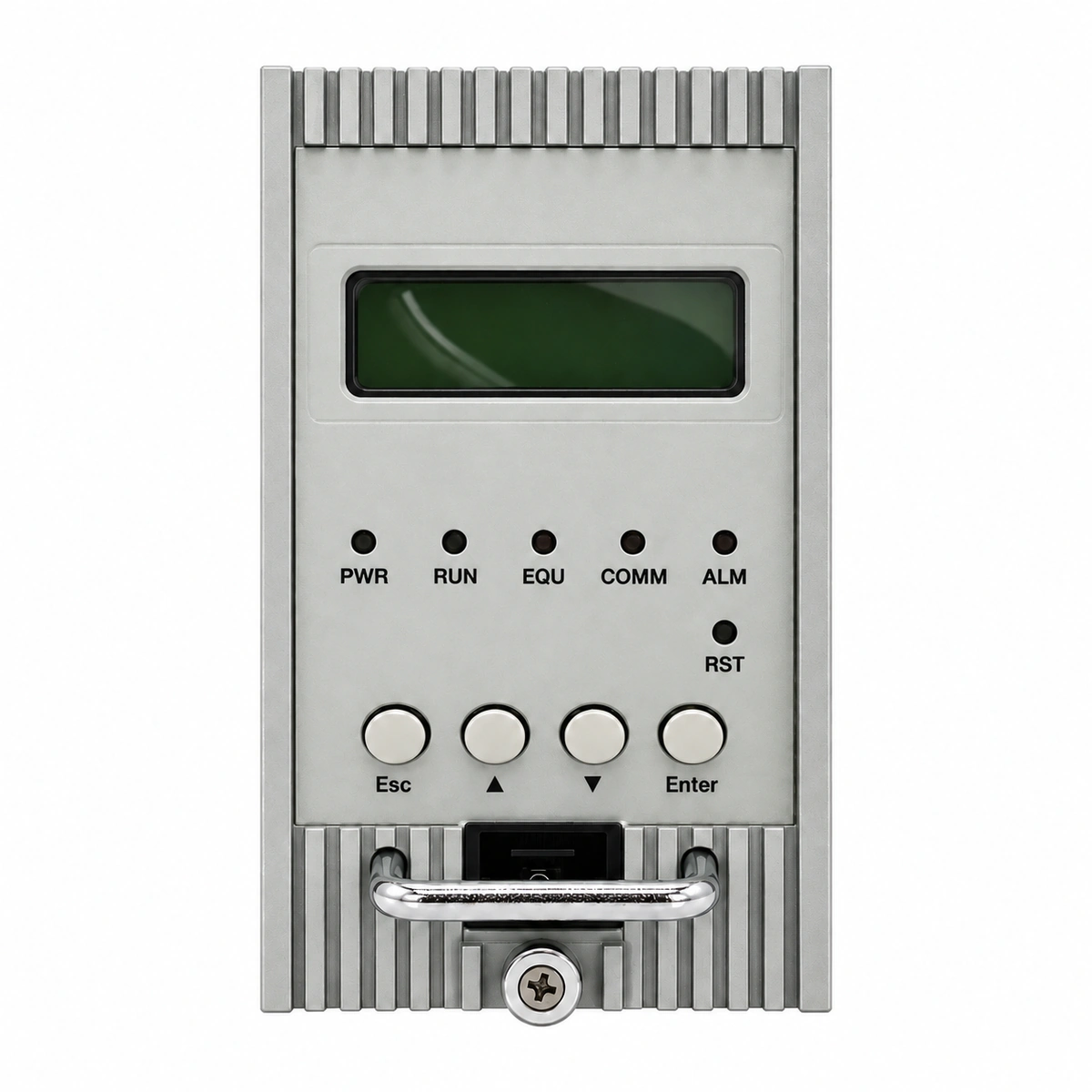

ZTE ZXDU58 W121 Embedded DC Power Subrack -48V 120A 3U

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

Cellular Macro BTS Shelters

Core Optical Fiber Transmission Offices

Transit Traction Communication Rooms

Frequently asked questions
