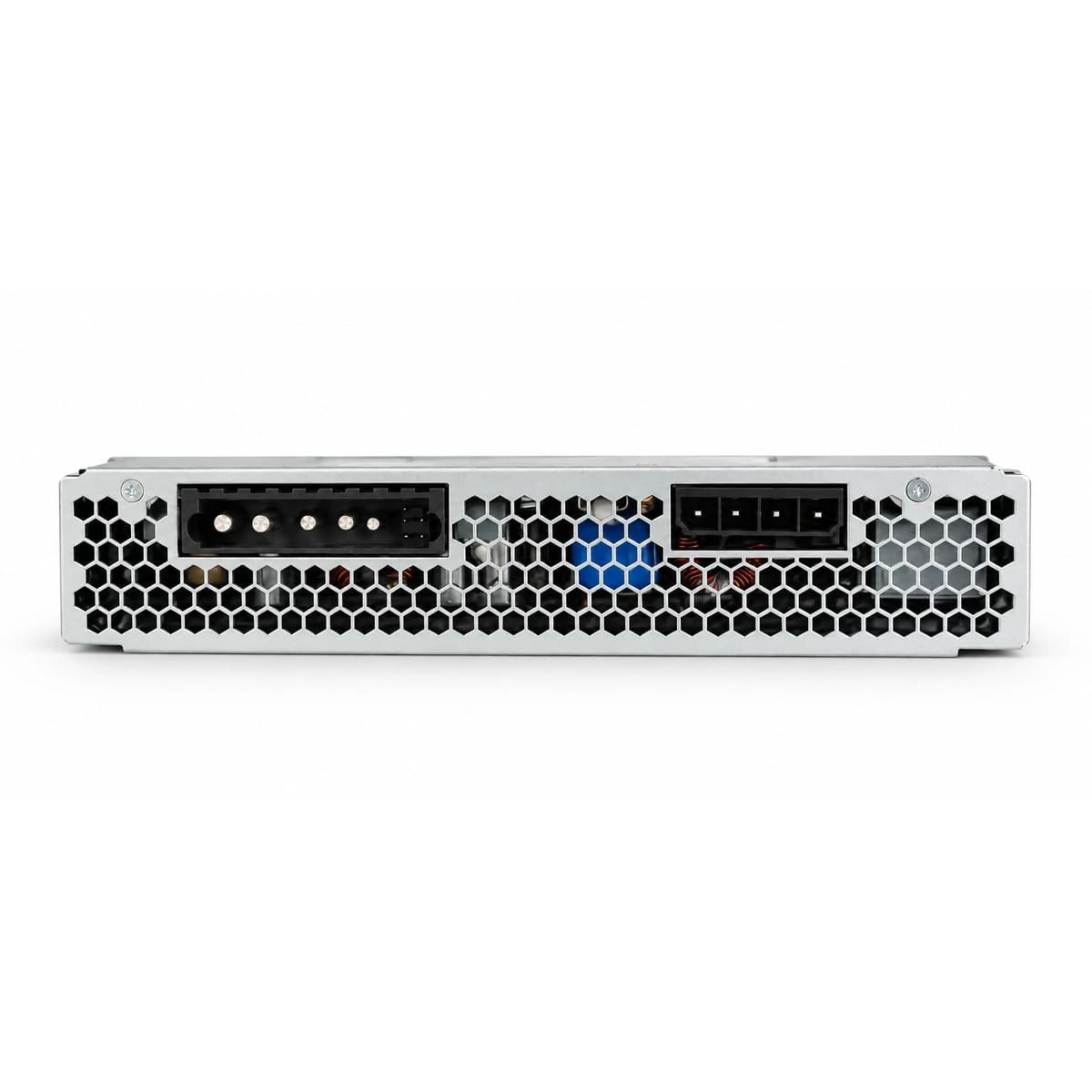

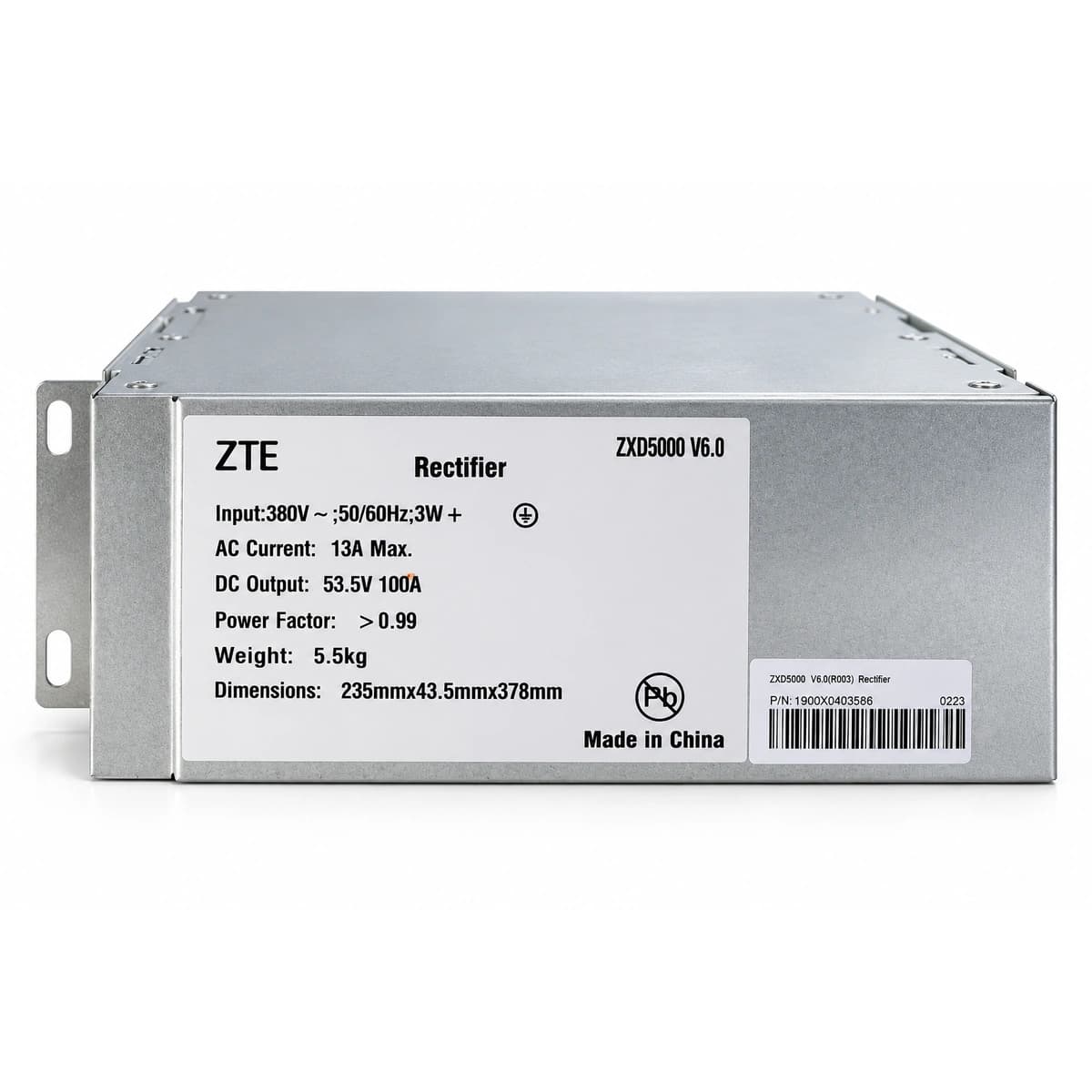

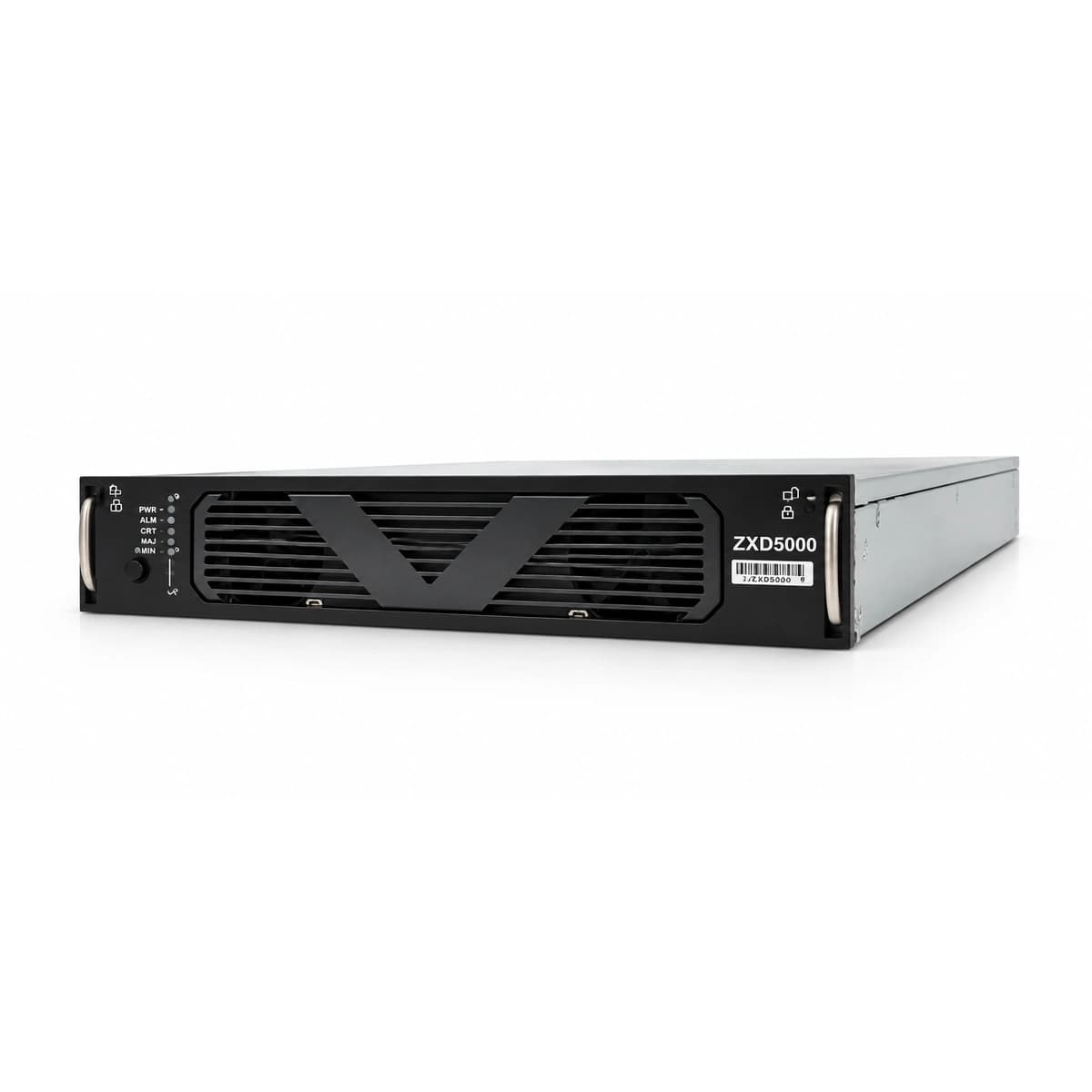

The ZTE ZXD5000 V6.0 is a carrier-grade, fully digital telecom switching rectifier module engineered for modern telecommunications and mission-critical industrial infrastructures. It supplies a nominal output of -48V DC, delivers a continuous current of up to 100A, and generates an exceptional power output of 5000W with benchmark-setting power density and electrical efficiency.
Pricing is confirmed by project configuration and quantity
Request a quoteThe internal architecture of the ZXD5000 V6.0 combines a double-boost Active Power Factor Correction (APFC) front-end with an interleaved LLC resonant zero-voltage switching (ZVS) DC-DC bridge. High-speed digital signal processors continuously monitor all intermediate rail dynamics, driving high-frequency planar transformers and ultra-low RDS(on) synchronous rectifiers. An integrated CAN/RS485 interface delivers high-speed hardware telemetry directly to central controllers, guaranteeing sub-millisecond dynamic loop response and galvanic system isolation.
This unit directly addresses field challenges including wide AC grid fluctuations, lightning surges, severe enclosure thermal saturation, and unscheduled maintenance downtime. Its wide operating voltage window minimizes unwanted transfers to backup batteries, preventing premature battery wear. Furthermore, the true N+X hot-pluggable architecture with ultra-fast solid-state fault clearance eradicates single points of failure across demanding telecom payloads.
5G/4G macro base transceiver stations (BTS), Central Office (CO) power distribution plants, edge computing shelters, micro-datacenter DC PDUs, transit signaling power networks, and heavy-duty industrial automation backup systems.
| Key specifications | Value |
|---|---|
| Rated Output Voltage | -48V DC (42V~58V) |
| Peak Conversion Efficiency | ≥ 96.0% |
| Operating Temperature Range | -40°C to +75°C |
| Cooling Method | Forced Air Cooling with Intelligent Speed Fan |
| Protection Features | Over-voltage, Short-circuit, Over-temperature, Surge |
| Hot-Swappable Support | Yes (Live Plug-and-Play Support) |
| Total Harmonic Distortion (THD) | ≤ 5% (Total Harmonic Distortion) |
| Rated Power Factor | ≥ 0.99 at Rated Load |
| Standard Compliance & Certifications | CE, UL, RoHS, IEC 60950, EN 300 386 |
ZTE
Featuring conversion efficiency exceeding 96%, the subrack incorporates active power factor correction (PFC) and intelligent variable-speed forced-air cooling. It integrates a centralized digital supervision unit with active busbar current sharing, meeting stringent telecom-grade seismic resilience and EMC standards for continuous high-availability service across harsh thermal environments.
