Does the ZTE ZXD5000 V5.0 support live hot-swapping in field operations?

Yes, ZTE ZXD5000 V5.0 is engineered with full hardware-level hot-plug protection, allowing live module insertion and extraction without interrupting critical site loads.

How can this unit integrate into third-party DCIM or network management software?

It features native RS485/CAN/Ethernet interfaces supporting standard SNMP v3 and Modbus protocols, facilitating direct plug-and-play integration into centralized management platforms.

What protection measures engage during over-voltage or thermal stress events?

The unit deploys multi-tier protection circuits: automatic lock-out on severe AC input surge/over-voltage with auto-recovery, and smart fan speed ramp-up with thermal derating under high ambient heat.

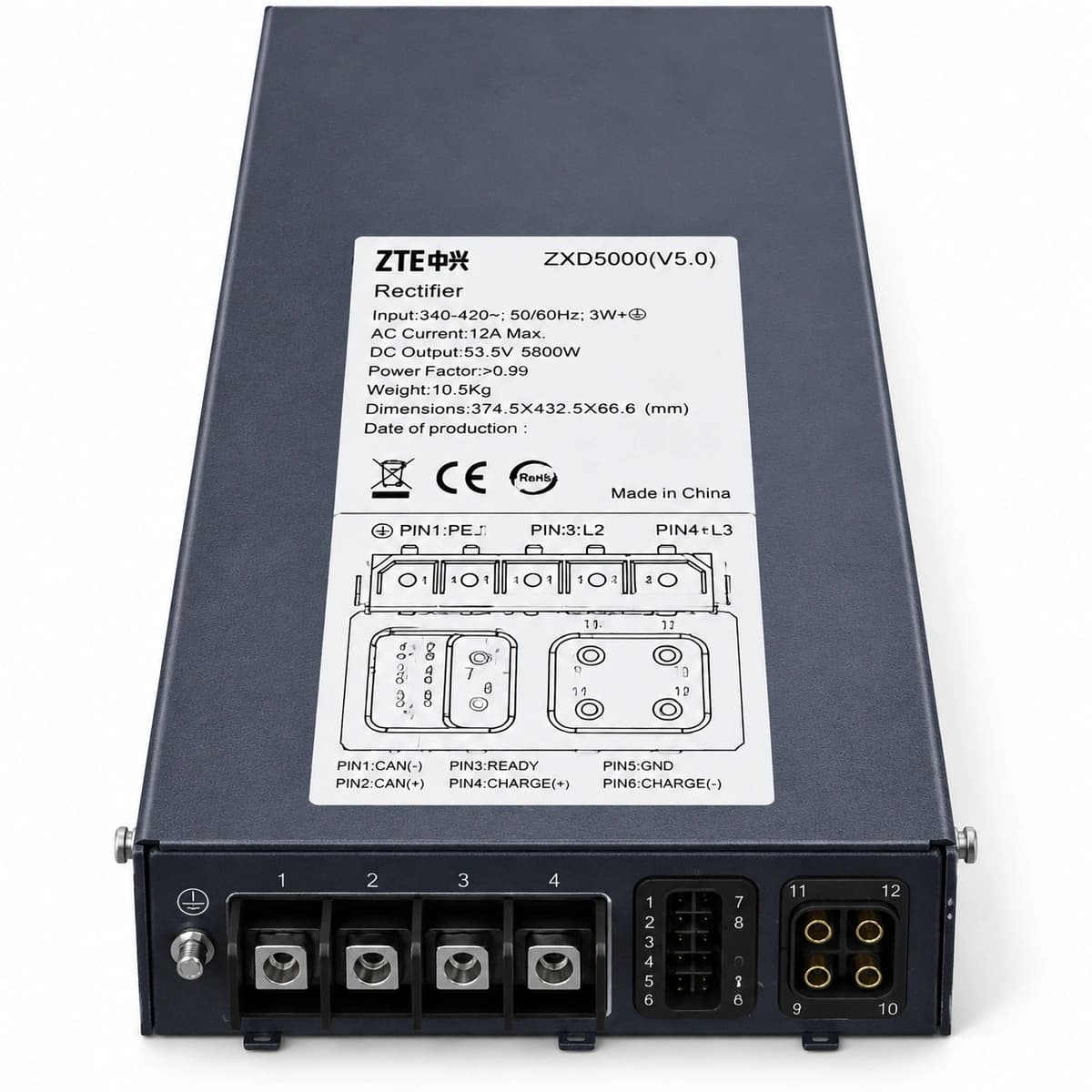

ZTE ZXD5000 V5.0 pure white studio product shot

ZTEModel: ZXD5000 V5.0

ZTE ZXD5000 V5.0 Telecom Carrier-Grade High-Power Switch-Mode Rectifier Module (-48V 100A 5000W)

ZTE ZXD5000 V5.0 is an industrial-grade, high-reliability solution engineered for mission-critical telecom sites, data centers, and power applications.

Pricing is confirmed by project configuration and quantity

Request a quote

Rated Output Voltage: 53.5V DC (42V~58V)
Peak Conversion Efficiency: ≥ 96.0%
Operating Temperature Range: -40°C to +75°C
Cooling Method: Forced Air Cooling with Intelligent Speed Fan
Protection Features: Over-voltage, Short-circuit, Over-temperature, Surge
Hot-Swappable Support: Yes (Live Plug-and-Play Support)

What this product is

ZTE ZXD5000 V5.0 incorporates carrier-grade components and a high-density modular architecture to ensure exceptional uptime and low operational costs.

What problem it solves

Eliminates downtime risks associated with severe grid fluctuations, harsh ambient temperatures, dense thermal loads, and single-point system failures.

Who and where it is for

Telecom base stations, hyperscale data centers, enterprise server rooms, edge computing nodes, and harsh industrial automation setups.

Core advantages

Industry-leading energy conversion efficiency minimizing long-term OPEX and site PUE.
Ultra-wide input voltage and temperature operating envelope designed for extreme grid conditions.
Live hot-swappable modularity enabling seamless tool-less field maintenance with zero service downtime.
Intelligent telemetry and monitoring telemetry compatible with open industry management protocols.

Technical specifications

Key specifications	Value
Rated Output Voltage	53.5V DC (42V~58V)
Peak Conversion Efficiency	≥ 96.0%
Operating Temperature Range	-40°C to +75°C
Cooling Method	Forced Air Cooling with Intelligent Speed Fan
Protection Features	Over-voltage, Short-circuit, Over-temperature, Surge
Hot-Swappable Support	Yes (Live Plug-and-Play Support)
Total Harmonic Distortion (THD)	≤ 5% (Total Harmonic Distortion)
Rated Power Factor	≥ 0.99 at Rated Load
Standard Compliance & Certifications	CE, UL, RoHS, IEC 60950, EN 300 386

Applications

5G / 4G RAN mobile telecom power distribution and high-speed interconnects

Enterprise data centers and cloud computing server rack infrastructure

Renewable energy storage microgrids and mission-critical industrial control hubs

Frequently asked questions
