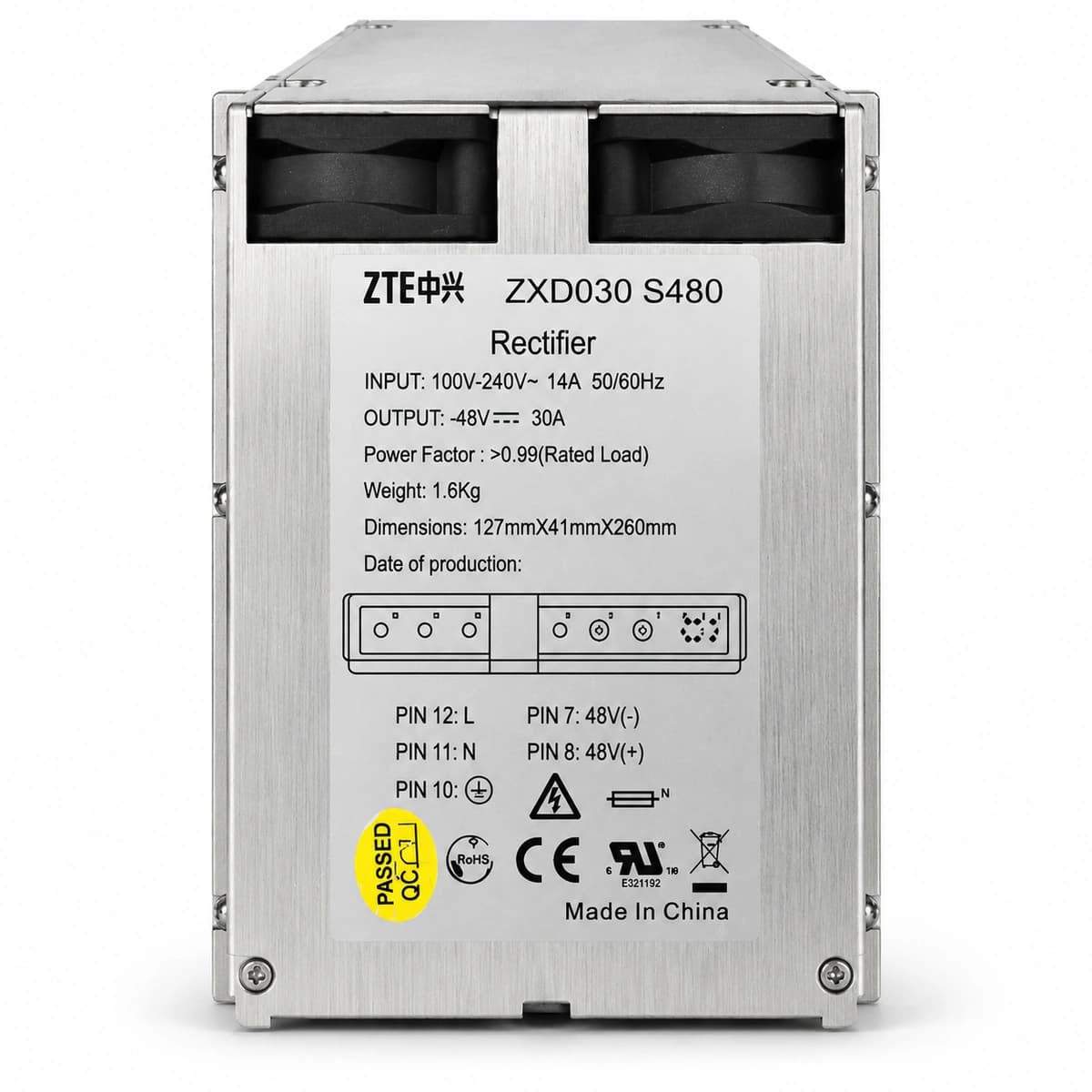

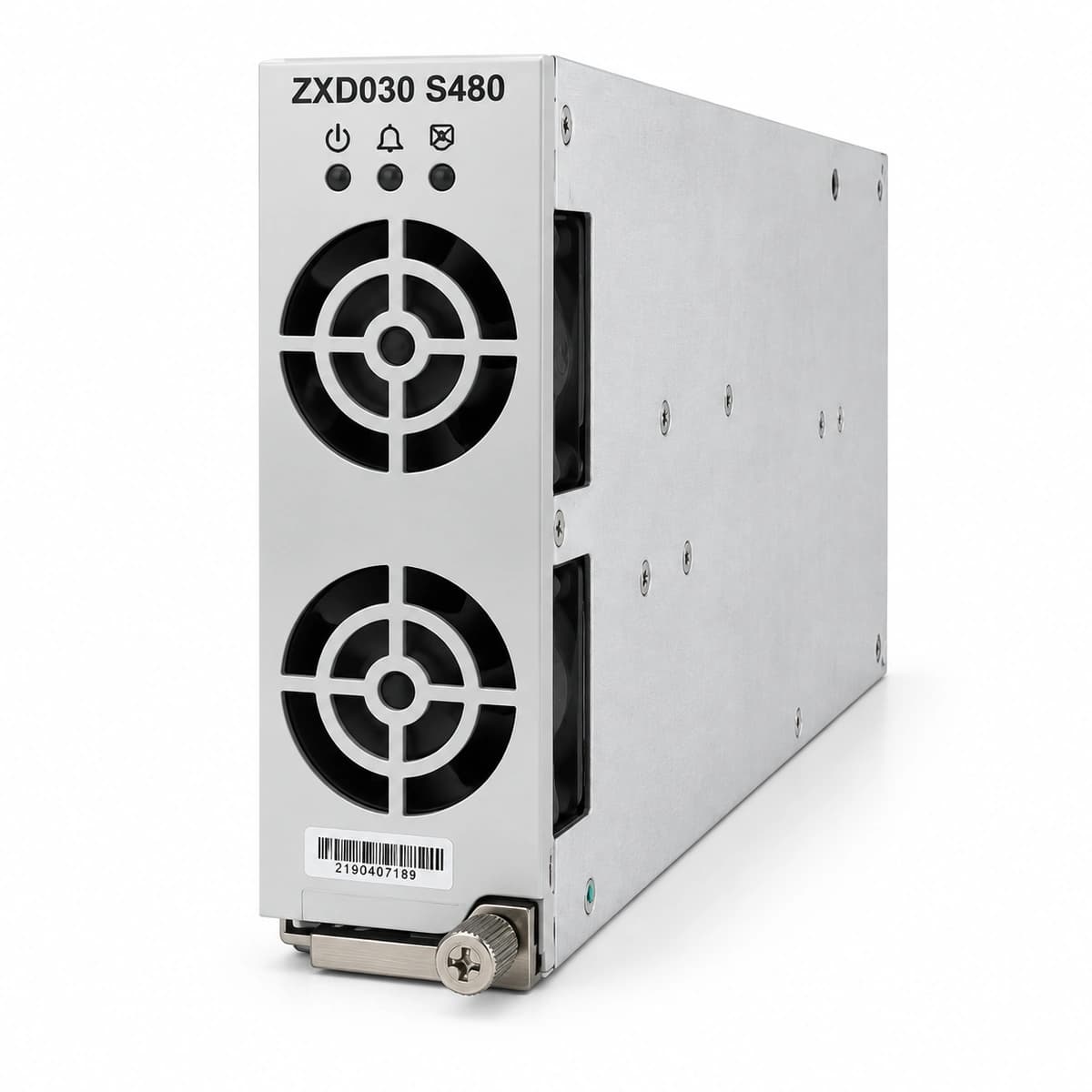

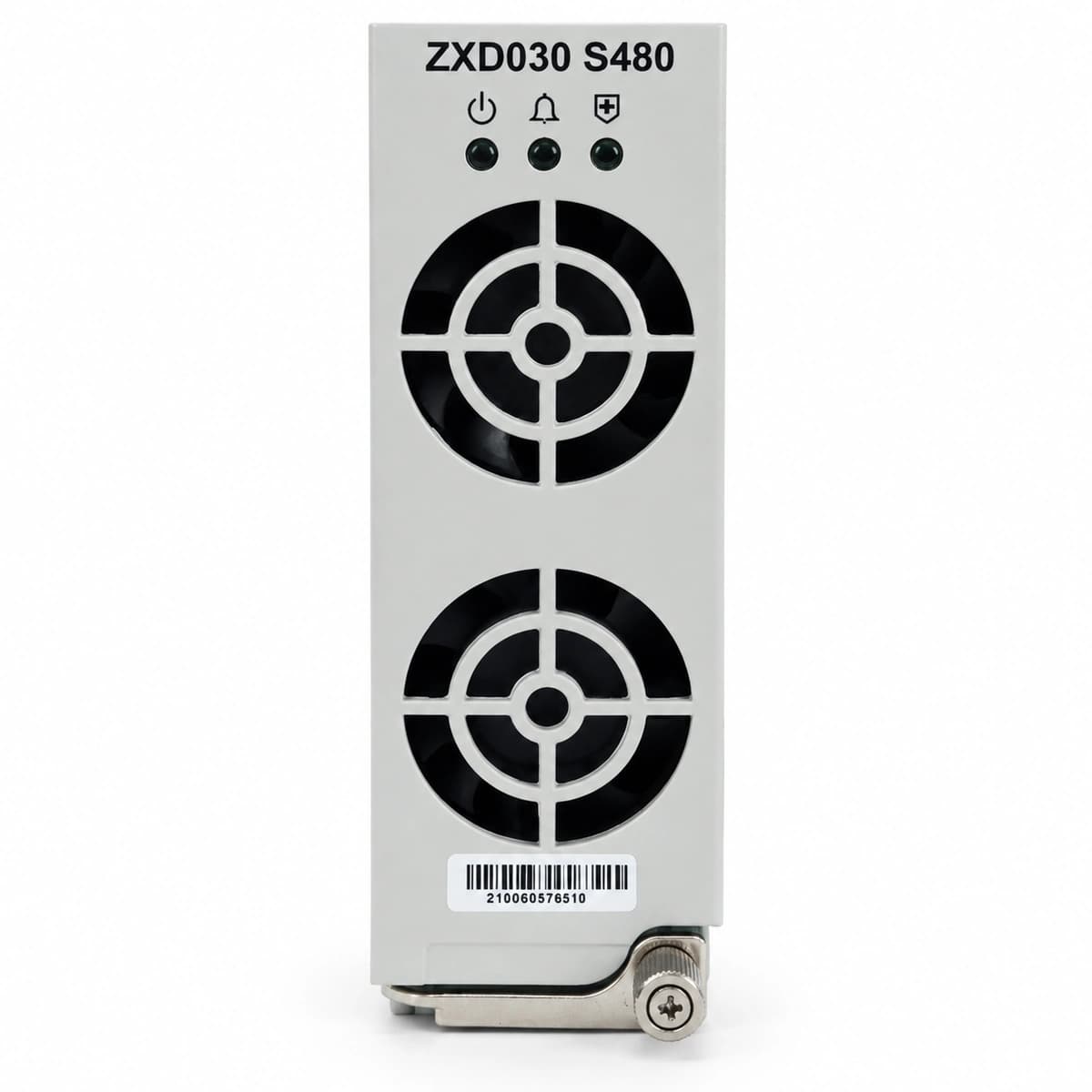

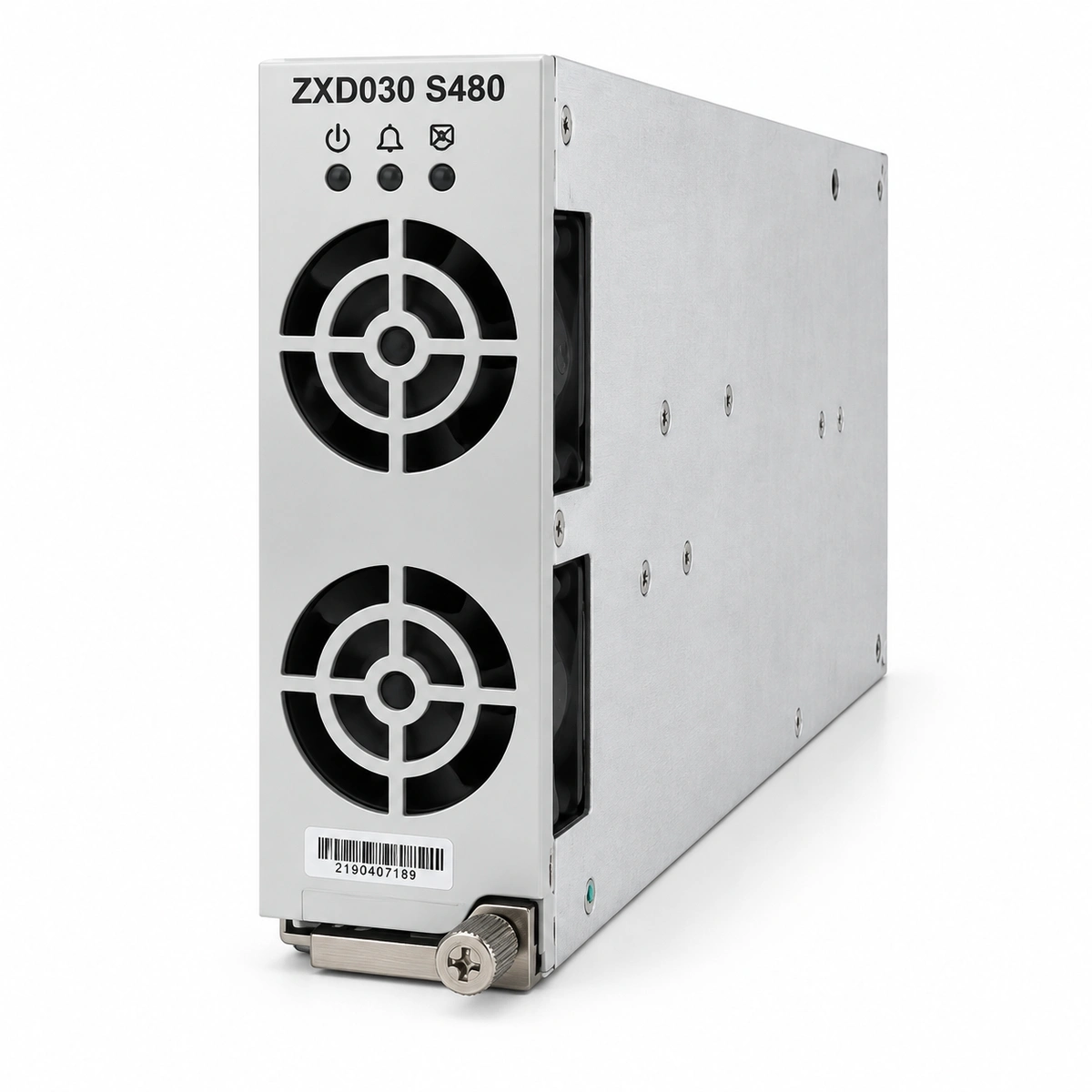

The ZTE ZXD030S480 is a compact, high-efficiency telecom switch-mode rectifier module engineered for continuous carrier-grade operation, delivering a nominal output of -48V DC, a rated current of 30A, and a continuous output capacity of 1600W.
Pricing is confirmed by project configuration and quantity

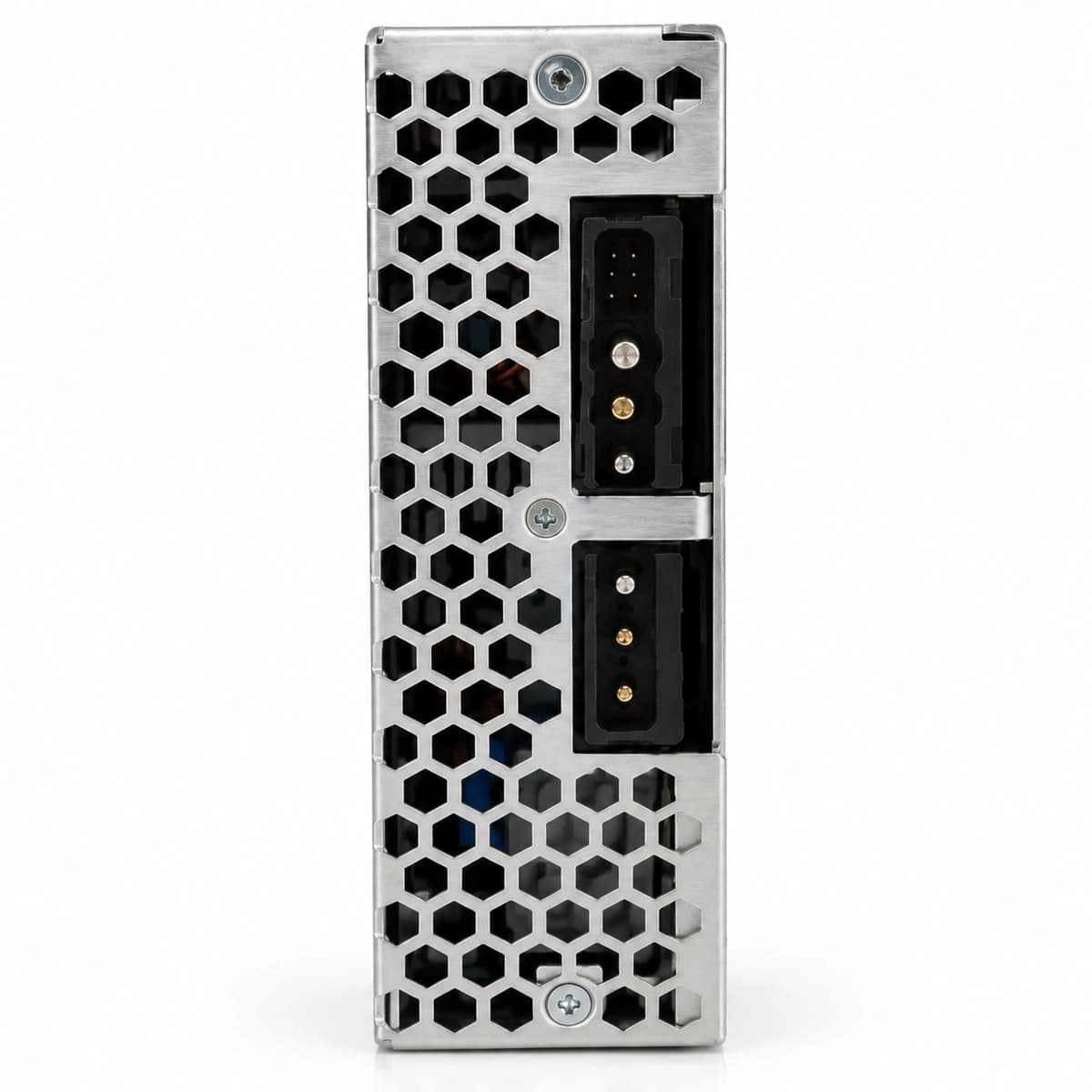

Request a quoteArchitecturally, the ZXD030S480 comprises an input EMI suppression stage, a digital signal processor (DSP/MCU)-driven active power factor correction (PFC) pre-regulator, and an isolated DC-DC resonant LLC converter paired with synchronous rectification. Designed around high-density power electronics, it communicates with the Central Supervisory Unit (CSU) via an internal CAN/RS485 bus through blind-mate hot-pluggable rear connectors, achieving seamless load sharing, dynamic parameter reporting, and hot-swap protection without interrupting system bus voltage.
This module resolves severe network vulnerability issues caused by poor rural and suburban grid stability through its extended input voltage tolerance and robust high-voltage disconnect capabilities. It eliminates thermal-induced shutdowns in densely packaged outdoor enclosures via dynamic fan speed algorithms, and prevents system downtime caused by single points of failure (SPOF) through true N+1 redundant parallel clustering.
Engineered specifically for 5G/4G telecom macro base station outdoor cabinets, enterprise edge computing centers, railway signaling communication systems, and critical industrial automation DC power plants.
| Key specifications | Value |
|---|---|
| Rated Output Voltage | -48V DC (42V~58V) |
| Peak Conversion Efficiency | ≥ 96.0% |
| Operating Temperature Range | -40°C to +75°C |
| Cooling Method | Forced Air Cooling with Intelligent Speed Fan |
| Protection Features | Over-voltage, Short-circuit, Over-temperature, Surge |
| Hot-Swappable Support | Yes (Live Plug-and-Play Support) |
| Total Harmonic Distortion (THD) | ≤ 5% (Total Harmonic Distortion) |
| Rated Power Factor | ≥ 0.99 at Rated Load |
| Standard Compliance & Certifications | CE, UL, RoHS, IEC 60950, EN 300 386 |
ZTE
Featuring conversion efficiency exceeding 96%, the subrack incorporates active power factor correction (PFC) and intelligent variable-speed forced-air cooling. It integrates a centralized digital supervision unit with active busbar current sharing, meeting stringent telecom-grade seismic resilience and EMC standards for continuous high-availability service across harsh thermal environments.
