The Vertiv Liebert LTS UF-LTS16-1P is an industrial-grade 16A 1U rackmount Static Transfer Switch (STS) engineered with high-speed Silicon Controlled Rectifier (SCR) architecture, delivering seamless sub-5ms power transfers between dual independent AC inputs to guarantee power continuity for mission-critical single-cord telecom and IT systems.
Pricing is confirmed by project configuration and quantity
Request a quoteThe Vertiv Liebert LTS UF-LTS16-1P is an industrial-grade 16A 1U rackmount Static Transfer Switch (STS) engineered with high-speed Silicon Controlled Rectifier (SCR) architecture, delivering seamless sub-5ms power transfers between dual independent AC inputs to guarantee power continuity for mission-critical single-cord telecom and IT systems.
The Vertiv Liebert LTS UF-LTS16-1P provides an industry-leading power redundancy solution for single-power-cord mission-critical equipment. Housed in an ultra-compact 1U 19-inch rackmount chassis, it bridges dual independent AC sources (Source 1 and Source 2) through high-speed anti-parallel thyristors. Upon detection of any voltage sag, phase distortion, or power disruption, the onboard high-precision micro-controller executes a seamless transition within 5ms, well within the CBEMA/ITIC curve threshold to eliminate server reboot risks. Output distribution is handled via standardized IEC 320 C13/C19 sockets, protected against overcurrent and short-circuit events. The front panel features a clear dynamic LED mimics path for immediate status diagnostics, while optional SNMP, Web, and RS485 communication interfaces enable Ricewind (ricewind.com) international clients to achieve automated remote telemetry and predictive power infrastructure monitoring.
The Vertiv Liebert LTS UF-LTS16-1P is an industrial-grade 16A 1U rackmount Static Transfer Switch (STS) engineered with high-speed Silicon Controlled Rectifier (SCR) architecture, delivering seamless sub-5ms power transfers between dual independent AC inputs to guarantee power continuity for mission-critical single-cord telecom and IT systems.
| Key specifications | Value |
|---|---|
| Physical Form Factor | Standard 1U 19-inch compact rack-mount chassis structure |
| Rated Switching Current | 16A Single-Phase Static Transfer Switch (STS) |
| Transfer Time | ≤ 5 ms (ultra-fast seamless dual-power synchronized transfer via thyristors) |
| Dual AC Input Spec | Dual-redundant single-phase 220V/230V AC independent power inputs (Source 1 & 2) |

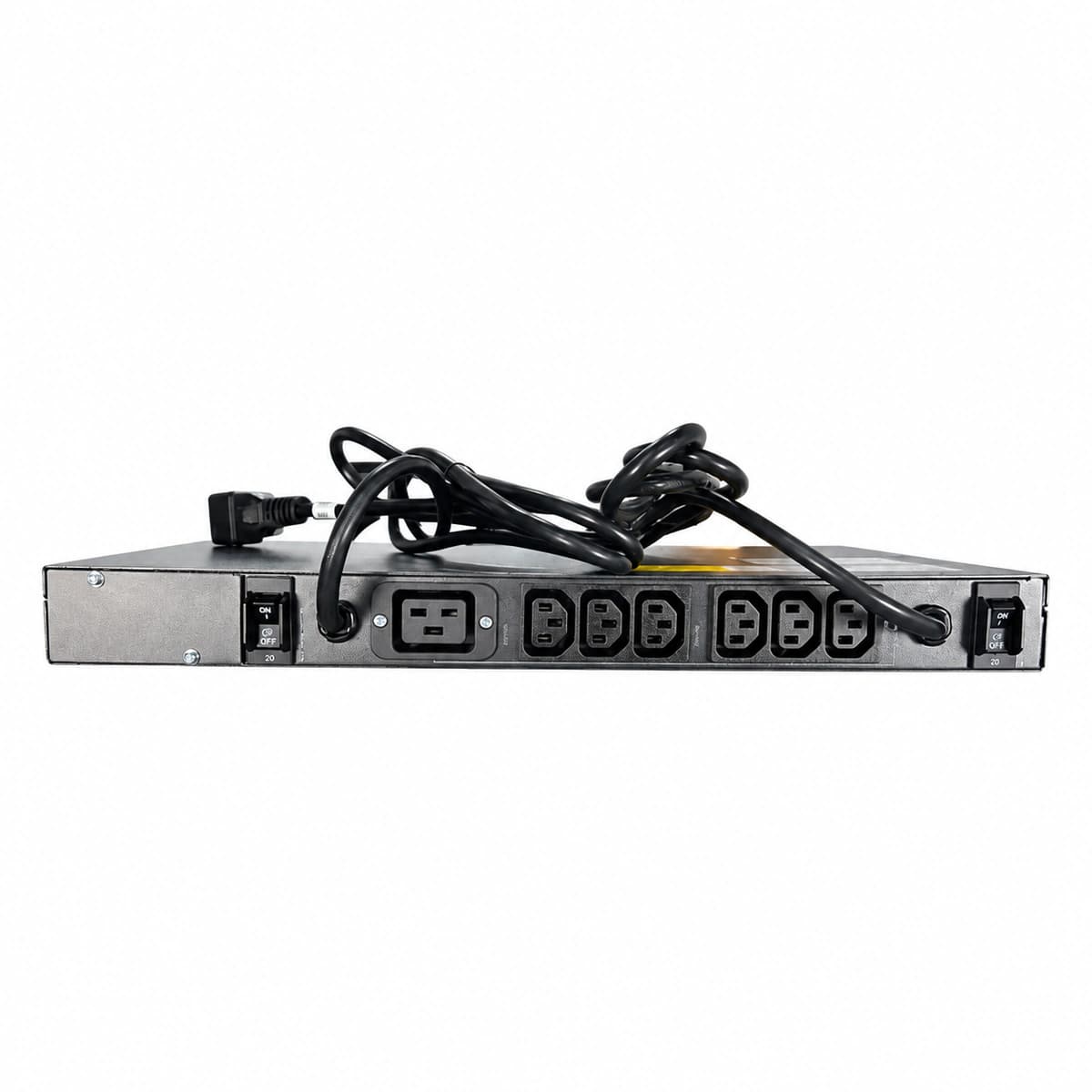

| Output Distribution Sockets | Multiple IEC 320 C13 / C19 branch outlet distribution with overload protection |

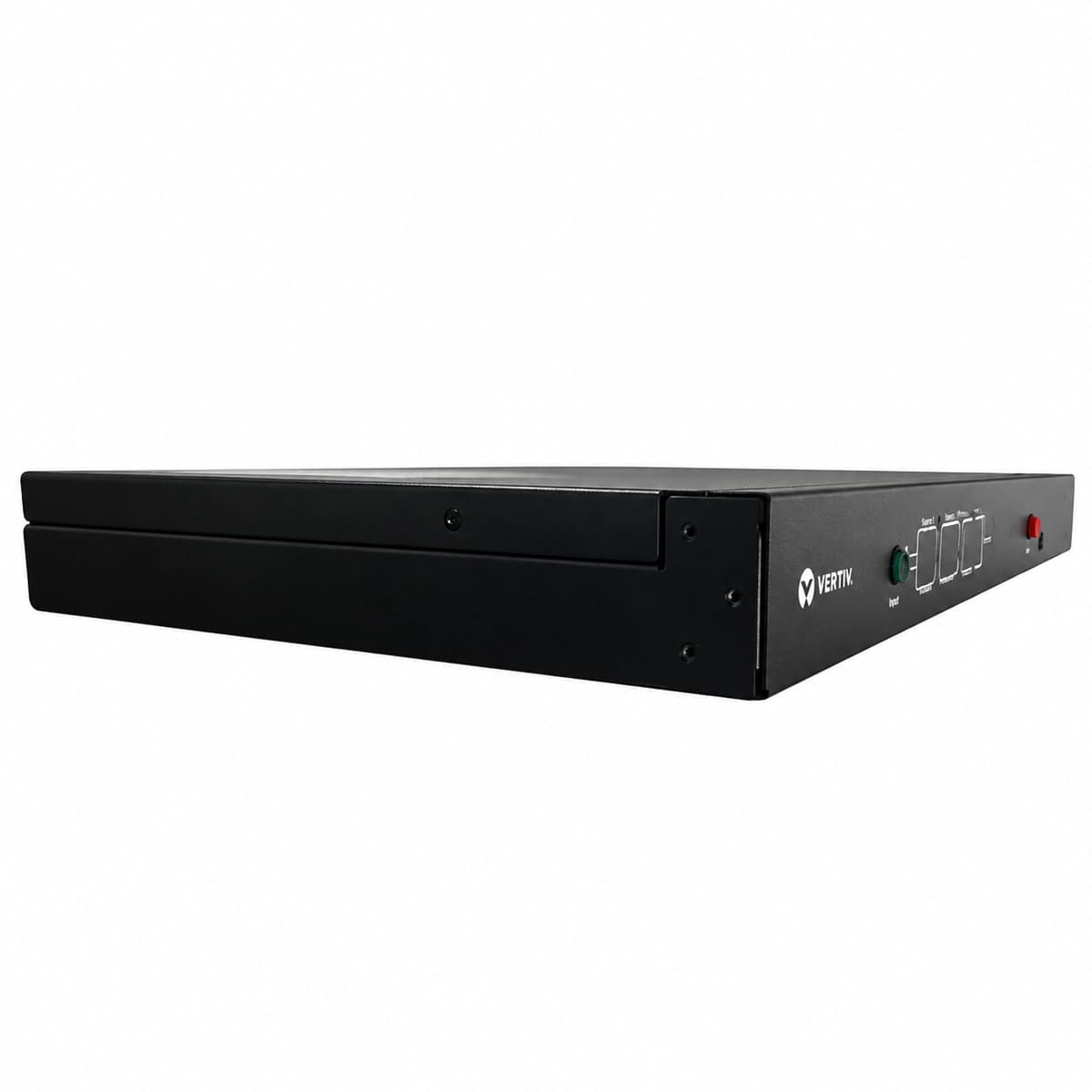

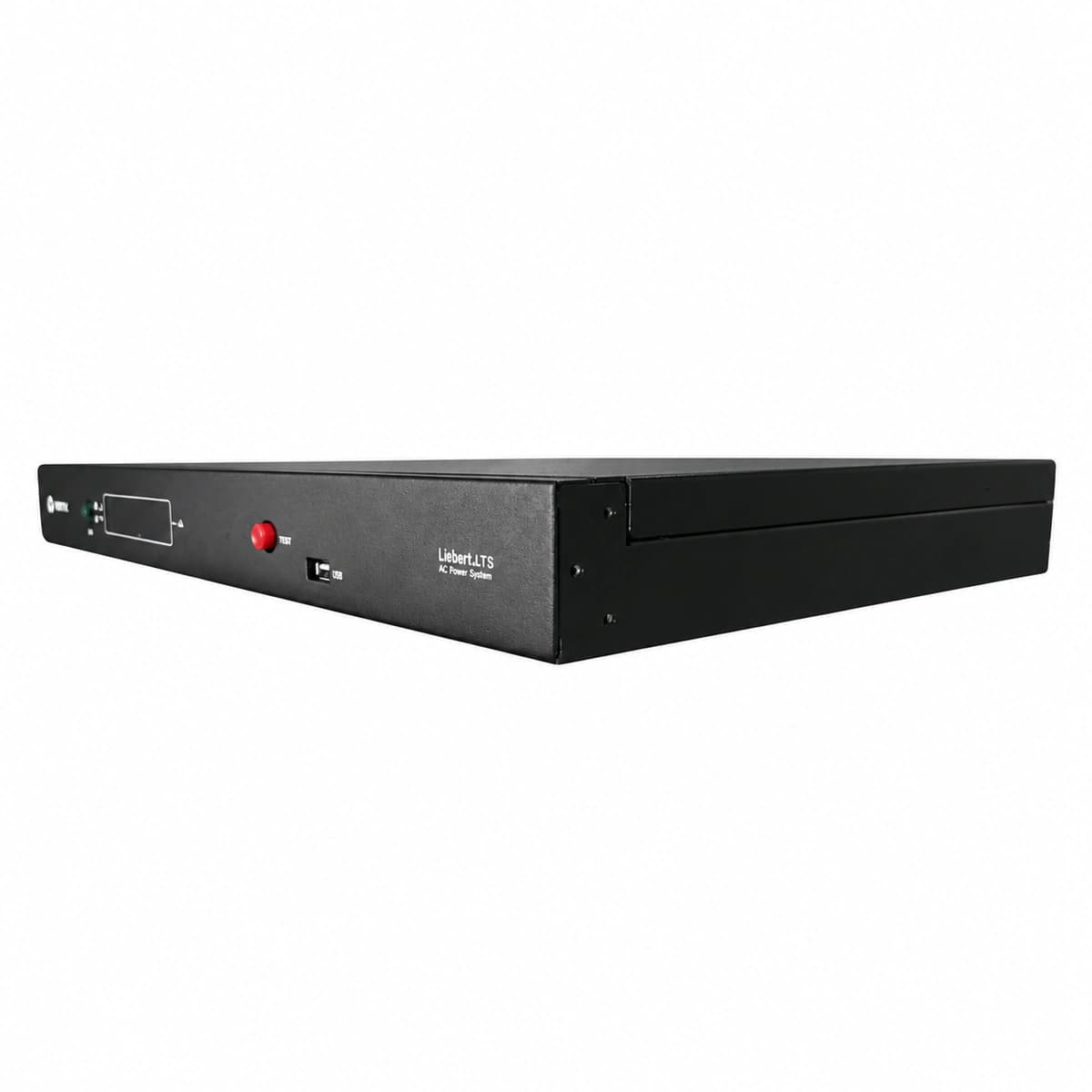

| Status LED Indicators | Front panel clear LED indication for power flow path and fault alarm status |
| Remote Network Card | Supports optional intelligent network management card via SNMP / Web / RS485 |
| Operating Temperature | 0°C to +40°C |
