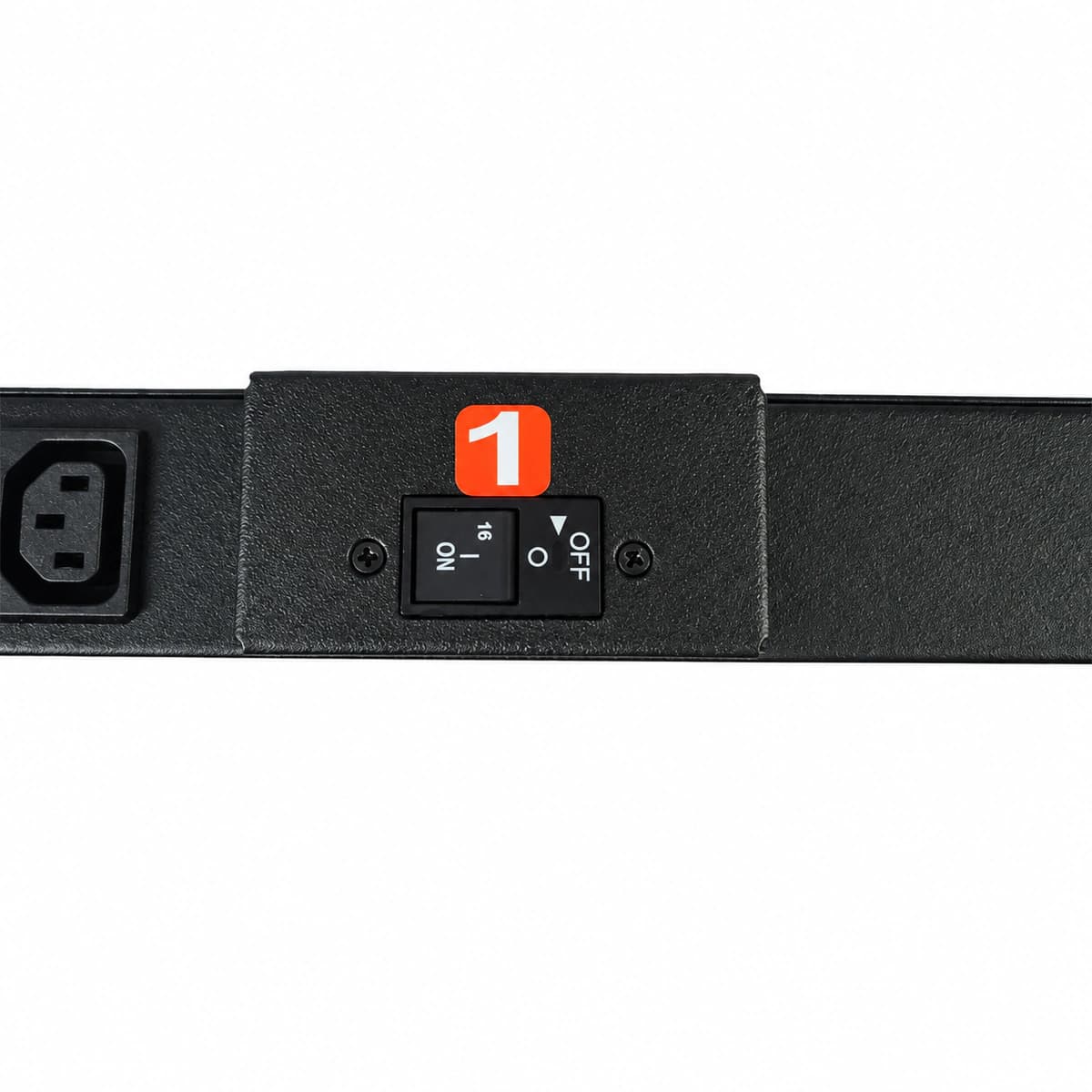

The Vertiv PDU-CP8853 is an enterprise-class intelligent rack power distribution unit (rPDU) tailored for high-density compute and mission-critical cloud cabinets. Designed for Zero-U vertical installation with a 32A single-phase input, it features locking IEC C13/C19 outlets, branch-level power metering, environmental sensor cascading, and remote per-outlet power cycling.
Pricing is confirmed by project configuration and quantity
Request a quoteThe Vertiv PDU-CP8853 is an enterprise-class intelligent rack power distribution unit (rPDU) tailored for high-density compute and mission-critical cloud cabinets. Designed for Zero-U vertical installation with a 32A single-phase input, it features locking IEC C13/C19 outlets, branch-level power metering, environmental sensor cascading, and remote per-outlet power cycling.
Resolves power grid instability, excessive OPEX energy dissipation, battery degradation, and rack footprint constraints.
5G cellular cell sites, core telecom DC plants, AI data centers, transport networks, and critical industrial DC UPS.
| Key specifications | Value |
|---|---|
| Rated Input Capacity | 230Vac / 32A Single-Phase (Max 7.4kVA) |

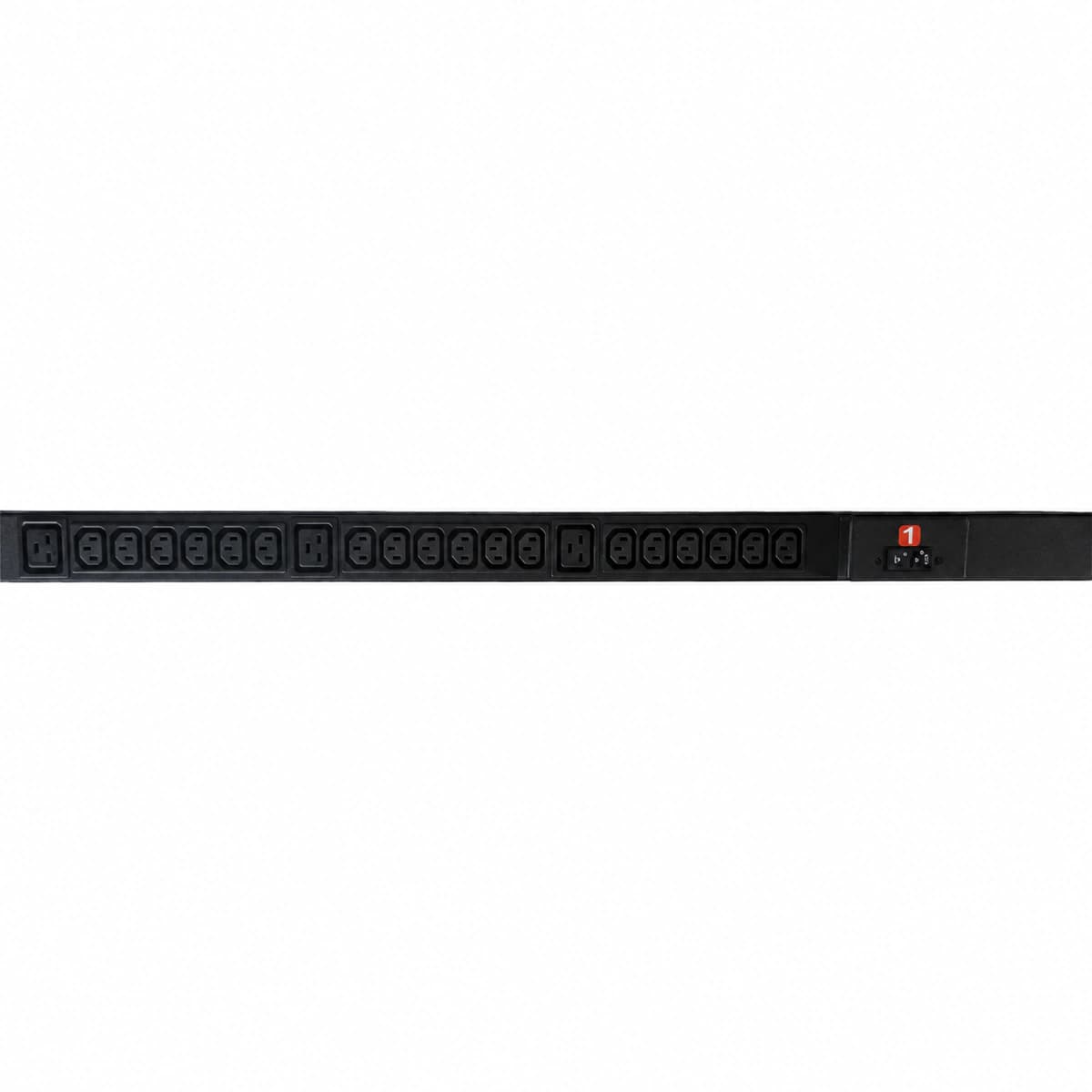

| Outlet Receptacle Layout | Mixed Locking IEC 60320 C13 + C19 Outlets |
| Metering Accuracy & Scope | ±1% Billing-Grade True RMS V/A/kW/kWh |

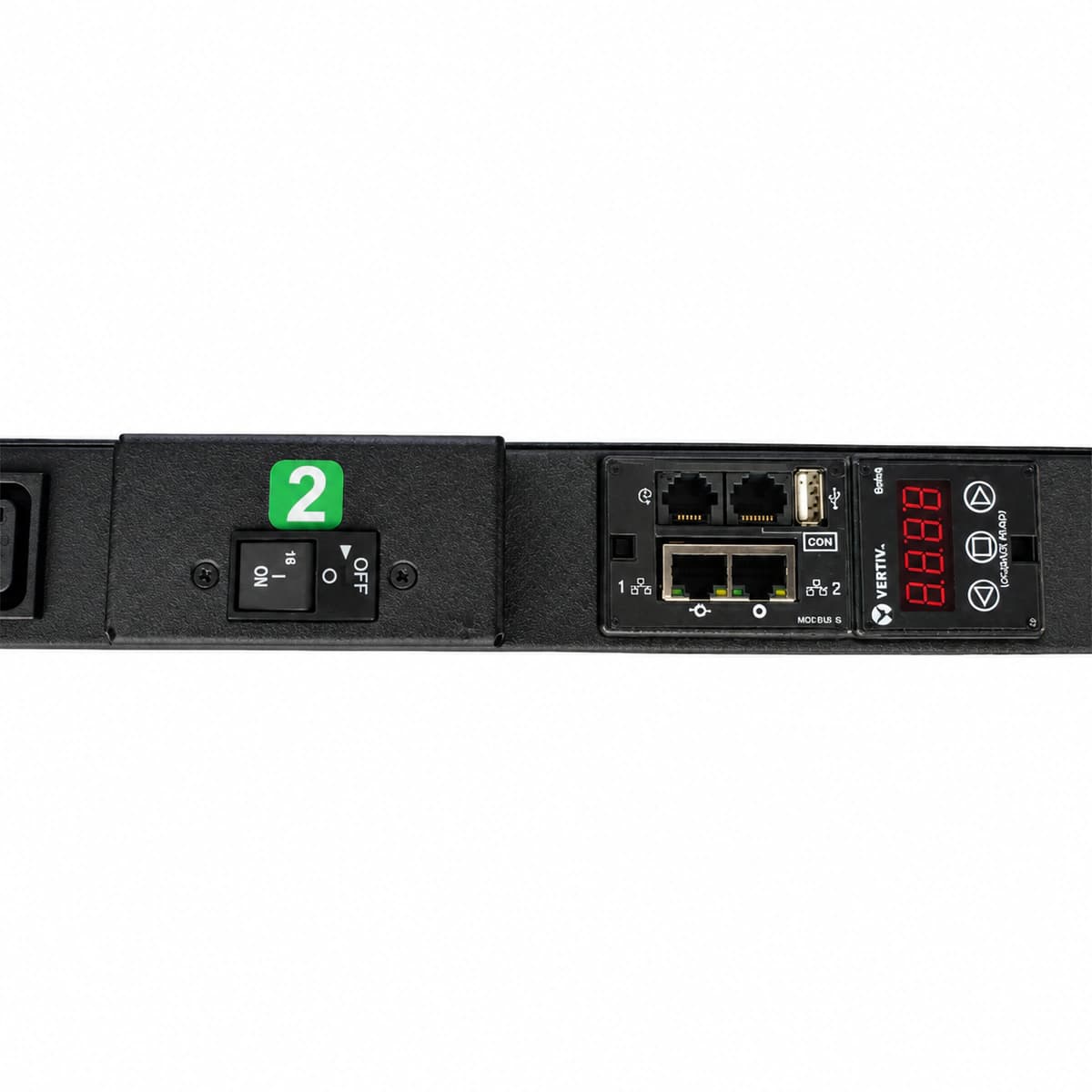

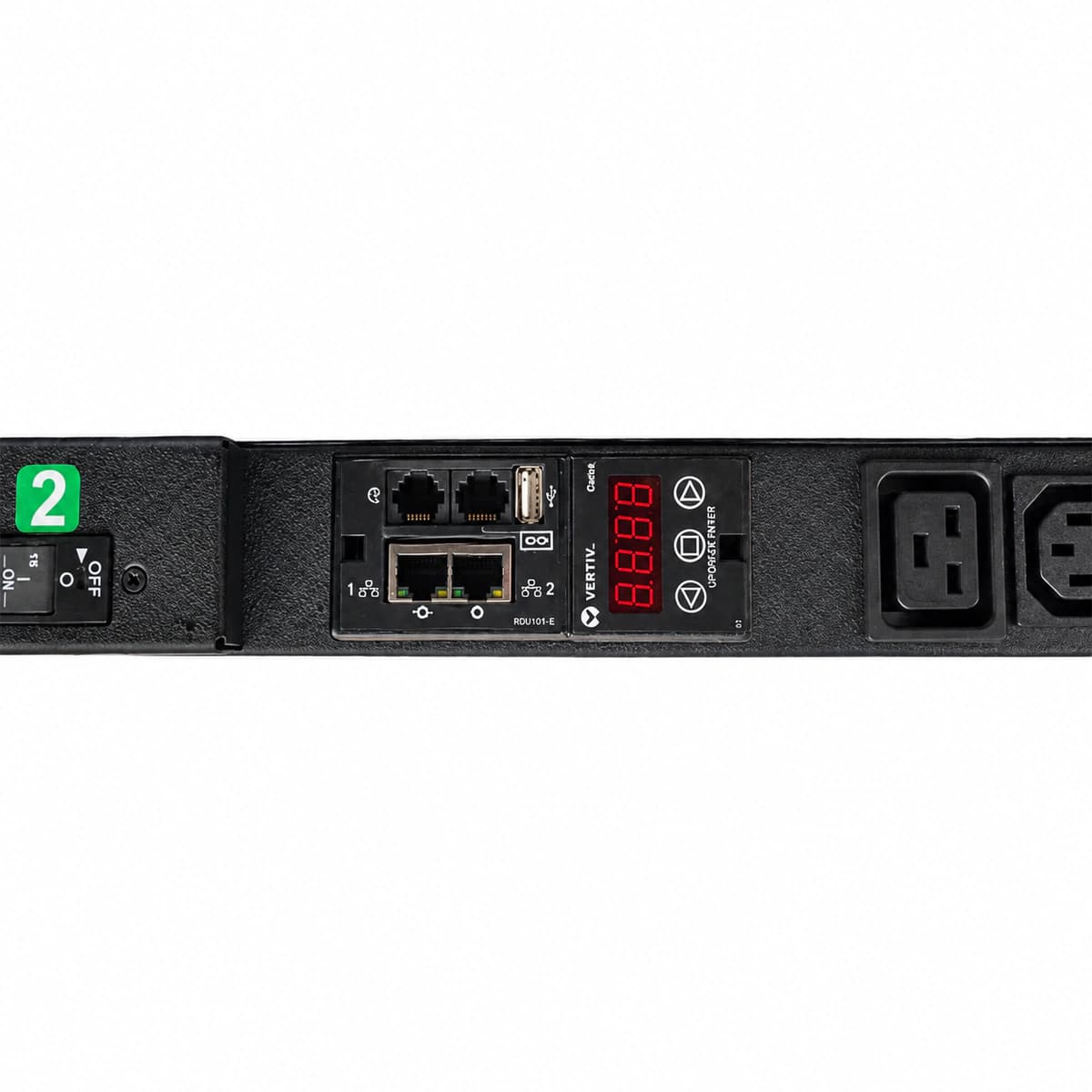

| Network Management Module | Gigabit Ethernet with SNMPv3, SSH, Web GUI |
| Environmental Sensor Ports | RJ45 Ports for Temp/Humidity/Door Sensors |
| Chassis Form Factor | Vertical Zero-U Tool-less Button Mounting |
Vertiv
The Vertiv RP1V2001 is a compact DIN-rail mounted power distribution telemetry module engineered for precision power distribution cabinets (PDC) and telecom DC frames. It features multi-channel high-precision AC/DC voltage/current analog acquisition and digital status inputs to track circuit breaker positions and fuse alarms in real time.
Standard 19-inch rack-mount embedded DC power system engineered for wide-range AC input, active rectifier redundancy, and tiered load/battery low-voltage disconnect.
Featuring ultra-high energy efficiency, intelligent digital control, and comprehensive electrical protection, Vertiv DataMate3000-2 delivers uninterrupted 24/7 power and communication stability.
Featuring full-bridge resonant soft-switching technology and digital DSP-driven control, the ER22005S achieves a peak conversion efficiency of ≥ 94.0%. With its advanced hybrid natural convection and thermal fan cooling, autonomous active current sharing, and hot-pluggable architecture, the unit ensures stable, transient-free high-voltage DC output under severe electromagnetic interference and harsh ambient temperatures.
