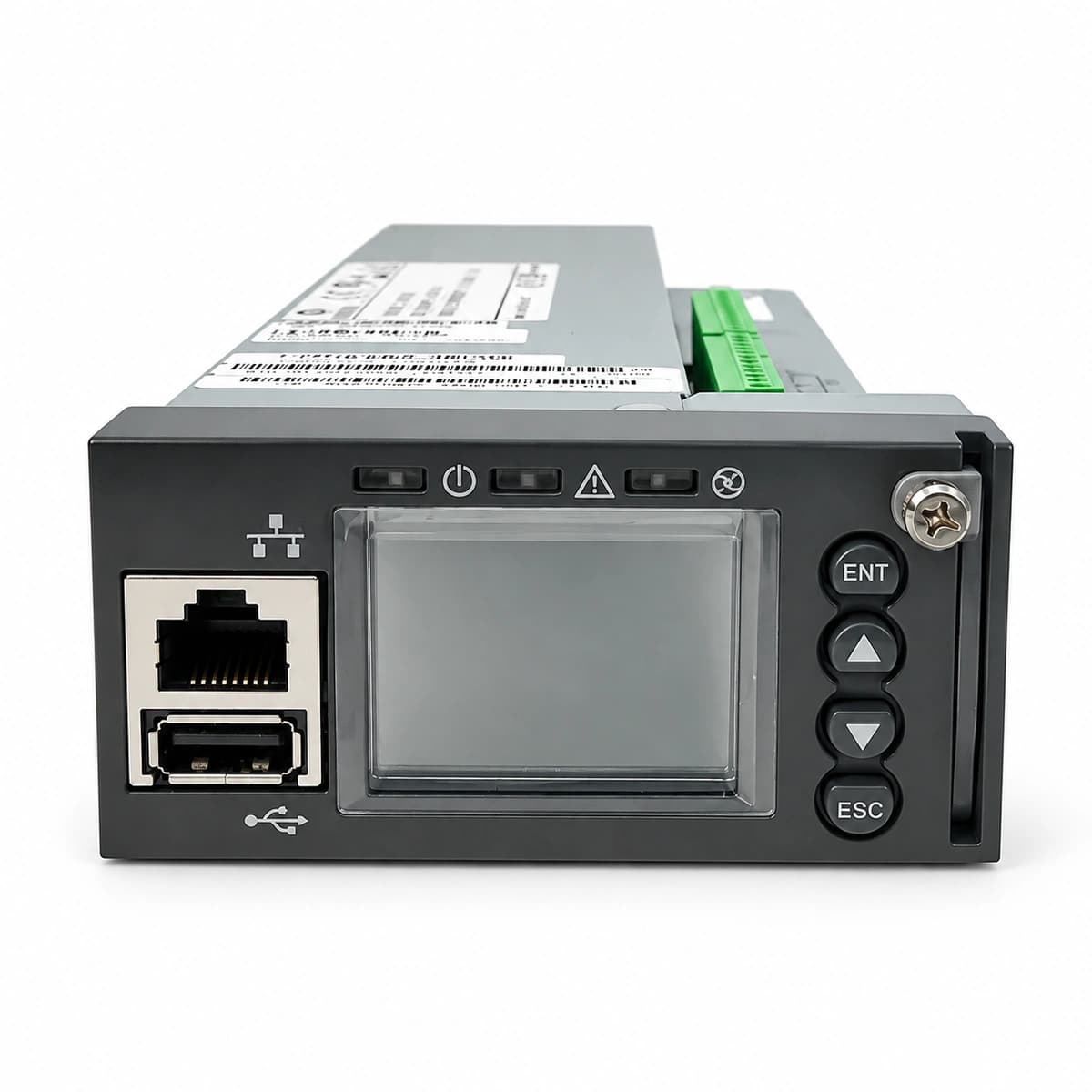

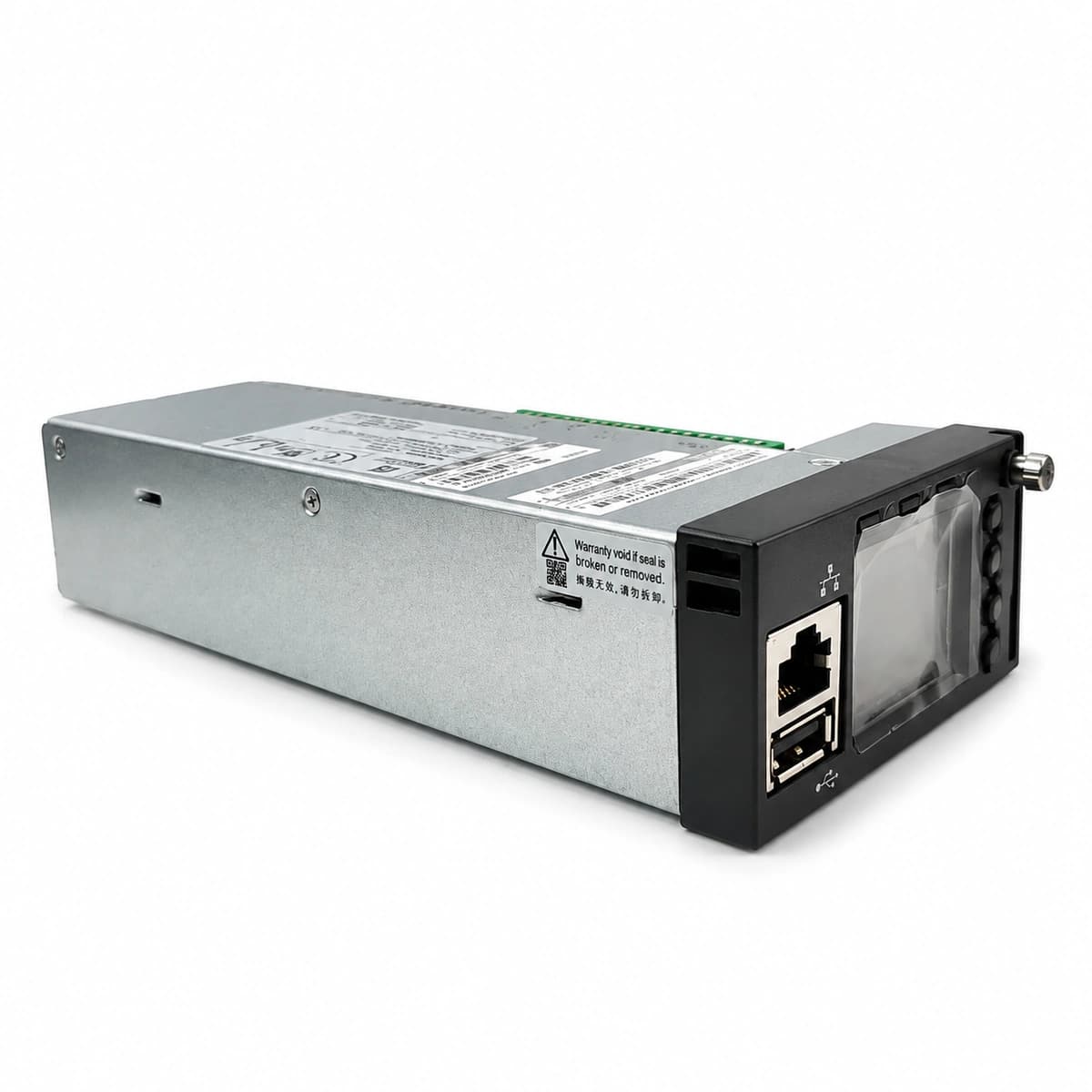

The Vertiv NetSure M830B is a carrier-grade intelligent central supervisory controller designed for large-scale telecom DC power systems and mission-critical edge DC infrastructures. Featuring a full-color graphical LCD and a high-performance industrial processor, it provides comprehensive real-time telemetry, signaling, remote control, and automated configuration for rectifiers, converters, battery banks, and power distribution units.
Pricing is confirmed by project configuration and quantity
Request a quoteArchitecturally, the NetSure M830B integrates a 32-bit embedded industrial microcontroller platform with dedicated galvanically isolated input/output conditioning circuits. It orchestrates system components using an internal high-speed CAN bus for deterministic communication with rectifiers and solar converters, while providing dual 10/100M Ethernet interfaces, RS485/RS232 serial channels, digital inputs, and configurable dry-contact alarm relays for seamless interconnection with external monitoring systems and environmental sensors.
It resolves critical telecom power vulnerabilities such as uncontrolled battery degradation, thermal-runaway risks, inefficient light-load power consumption, and excessive site maintenance visits caused by lack of remote diagnostics. The M830B automates precise temperature-compensated charging, handles load disconnects (LLVD/BLVD), dynamic module cycling, and detailed event logging, eliminating single points of supervisory failure and slashing operational expenditures.
Ideal for 5G macro base station power plants, central office aggregation nodes, edge computing facilities, railway signaling and communications, electrical utility substations, and hybrid renewable/telecom power enclosures.
| Key specifications | Value |
|---|---|
| RATED OUTPUT VOLTAGE | -48V DC (42V~58V) |
| MAX EFFICIENCY | ≥ 96.0% |
| Operating Temperature Range | -40°C to +75°C |
| COOLING MODE | Forced Air Cooling with Intelligent Speed Fan |
| PROTECTION FEATURES | Over-voltage, Short-circuit, Over-temperature, Surge |
| Hot-Swappable Support | Yes (Live Plug-and-Play Support) |
| THD | ≤ 5% (Total Harmonic Distortion) |
| POWER FACTOR | ≥ 0.99 at Rated Load |
| STANDARD COMPLIANCE | CE, UL, RoHS, IEC 60950, EN 300 386 |
