Q: What is the chassis interoperability of this SFP+ module, and does it support rate auto-negotiation or mixed slot deployment?

Engineered with native Huawei EEPROM microcode, this transceiver integrates seamlessly with Huawei CloudEngine switches (CE6800/CE8800/CE12800), enterprise campus switches (S5700/S6730/S12700E), and NetEngine routing platforms (NE40E/NE8000). While it can be installed alongside standard 1G SFP (1000BASE-LX) optics within dual-rate SFP/SFP+ cages across the same line card, the transceiver operates at a fixed 10.3125 Gbps PHY clock and does not support automatic legacy 1.25 Gbps down-negotiation. It supports seamless hot-swapping, backed by multi-stage inrush current limiting circuitry and gold-plated edge connectors that prevent ground bounce or transient voltage fluctuations on active chassis backplanes.

Q: How does the transceiver perform under dense thermal loads, ESD events, and what is its calculated MTBF?

The HW-OPT-10G-SFP-10KM operates within a 0°C to +70°C case temperature range (storage: -40°C to +85°C). Encased in an all-metal, high-thermal-conductivity zinc alloy housing, it provides superior EMI shielding and heat dissipation, ideal for high-density 48-port 1RU switch topologies with tight thermal envelopes. The electrical pins satisfy IEC 61000-4-2 ESD standards (4kV contact, 8kV air discharge), and the optical cavity is protected by high-durability dust plugs. Operating under continuous full line-rate traffic at an ambient 45°C, its Mean Time Between Failures (MTBF) exceeds 3,000,000 hours, keeping the Annualized Failure Rate (AFR) well under 0.2% for carrier-grade and high-uptime mission-critical backbones.

Question 1

What are the core electro-optical specifications and optical link budget of HW-OPT-10G-SFP-10KM?

Accepted Answer

The Huawei HW-OPT-10G-SFP-10KM (BOM: 02318169 / SFP-10G-LR) complies fully with IEEE 802.3ae 10GBASE-LR and SFF-8431/SFF-8472 MSA standards. Utilizing an uncooled 1310nm DFB laser and high-sensitivity PIN receiver, it delivers a line rate of 10.3125 Gbps over duplex LC single-mode fiber (G.652 SMF). Operating on a 3.3V power rail, typical power consumption remains strictly under 1.0W (approx. 0.85W). The optical launch power spans from -8.2 dBm to +0.5 dBm with an extinction ratio > 3.5 dB, while receiver sensitivity reaches down to -14.4 dBm with an overload threshold of +0.5 dBm, offering a minimum dynamic optical link budget of 6.2 dB for robust 10 km reach (BER < 10^-12). Integrated DDM/DOM allows live telemetry of Tx/Rx optical power, bias current, voltage, and internal thermal metrics.

Question 2

What is the chassis interoperability of this SFP+ module, and does it support rate auto-negotiation or mixed slot deployment?

Accepted Answer

Engineered with native Huawei EEPROM microcode, this transceiver integrates seamlessly with Huawei CloudEngine switches (CE6800/CE8800/CE12800), enterprise campus switches (S5700/S6730/S12700E), and NetEngine routing platforms (NE40E/NE8000). While it can be installed alongside standard 1G SFP (1000BASE-LX) optics within dual-rate SFP/SFP+ cages across the same line card, the transceiver operates at a fixed 10.3125 Gbps PHY clock and does not support automatic legacy 1.25 Gbps down-negotiation. It supports seamless hot-swapping, backed by multi-stage inrush current limiting circuitry and gold-plated edge connectors that prevent ground bounce or transient voltage fluctuations on active chassis backplanes.

Question 3

How does the transceiver perform under dense thermal loads, ESD events, and what is its calculated MTBF?

Accepted Answer

The HW-OPT-10G-SFP-10KM operates within a 0°C to +70°C case temperature range (storage: -40°C to +85°C). Encased in an all-metal, high-thermal-conductivity zinc alloy housing, it provides superior EMI shielding and heat dissipation, ideal for high-density 48-port 1RU switch topologies with tight thermal envelopes. The electrical pins satisfy IEC 61000-4-2 ESD standards (4kV contact, 8kV air discharge), and the optical cavity is protected by high-durability dust plugs. Operating under continuous full line-rate traffic at an ambient 45°C, its Mean Time Between Failures (MTBF) exceeds 3,000,000 hours, keeping the Annualized Failure Rate (AFR) well under 0.2% for carrier-grade and high-uptime mission-critical backbones.

Key specifications	Value
Physical Form Factor	SFP+
Data Rate	10.3125 Gbps
Central Wavelength	1310 nm
Maximum Distance	10 km
Fiber Type	Single-Mode Fiber (SMF) (SMF)
Optical Connector	Duplex LC (blue pull tab)
Typical Power Consumption	< 1.0 W
Operating Temperature	0°C ~ +70°C
Digital Diagnostic Monitoring	Supports DDM

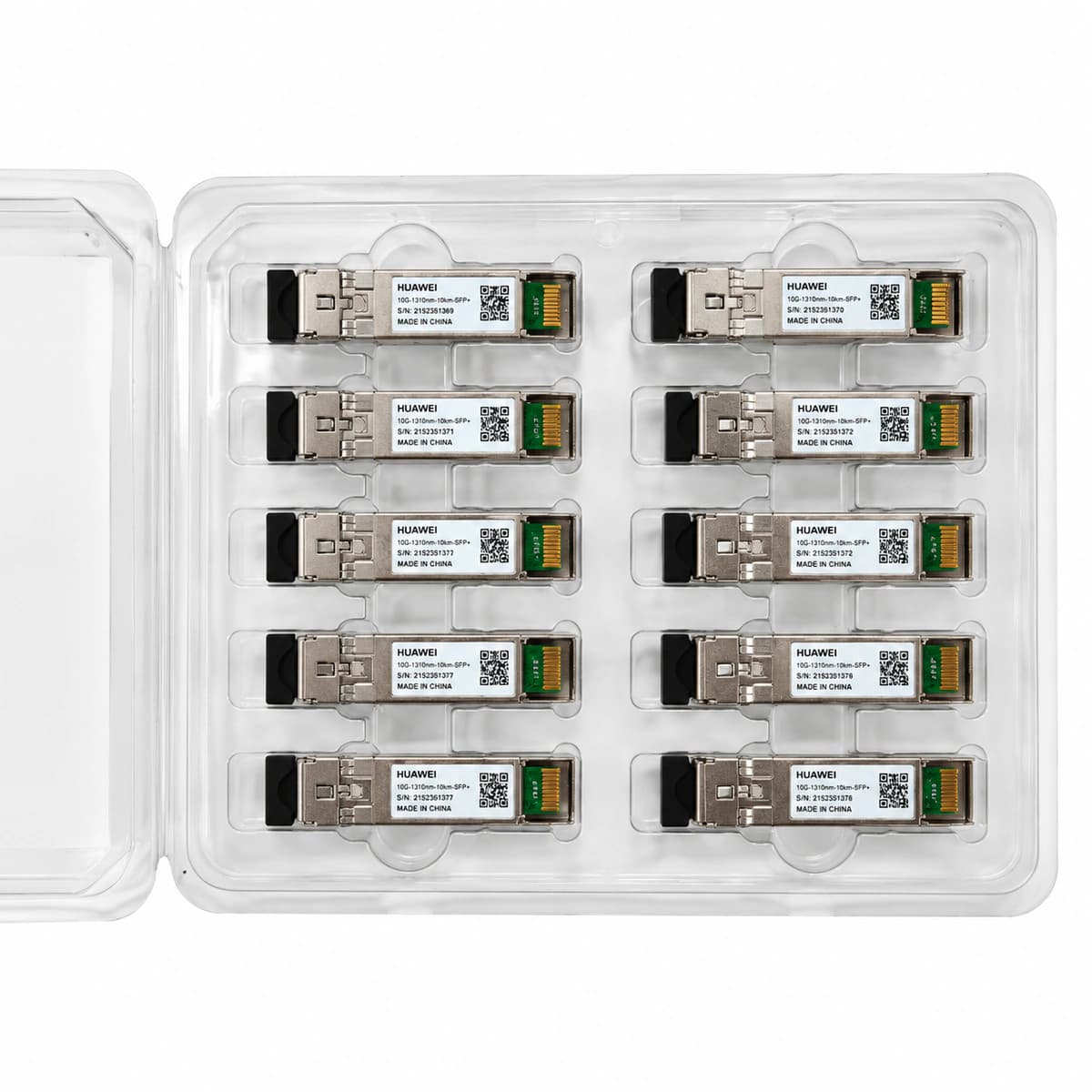

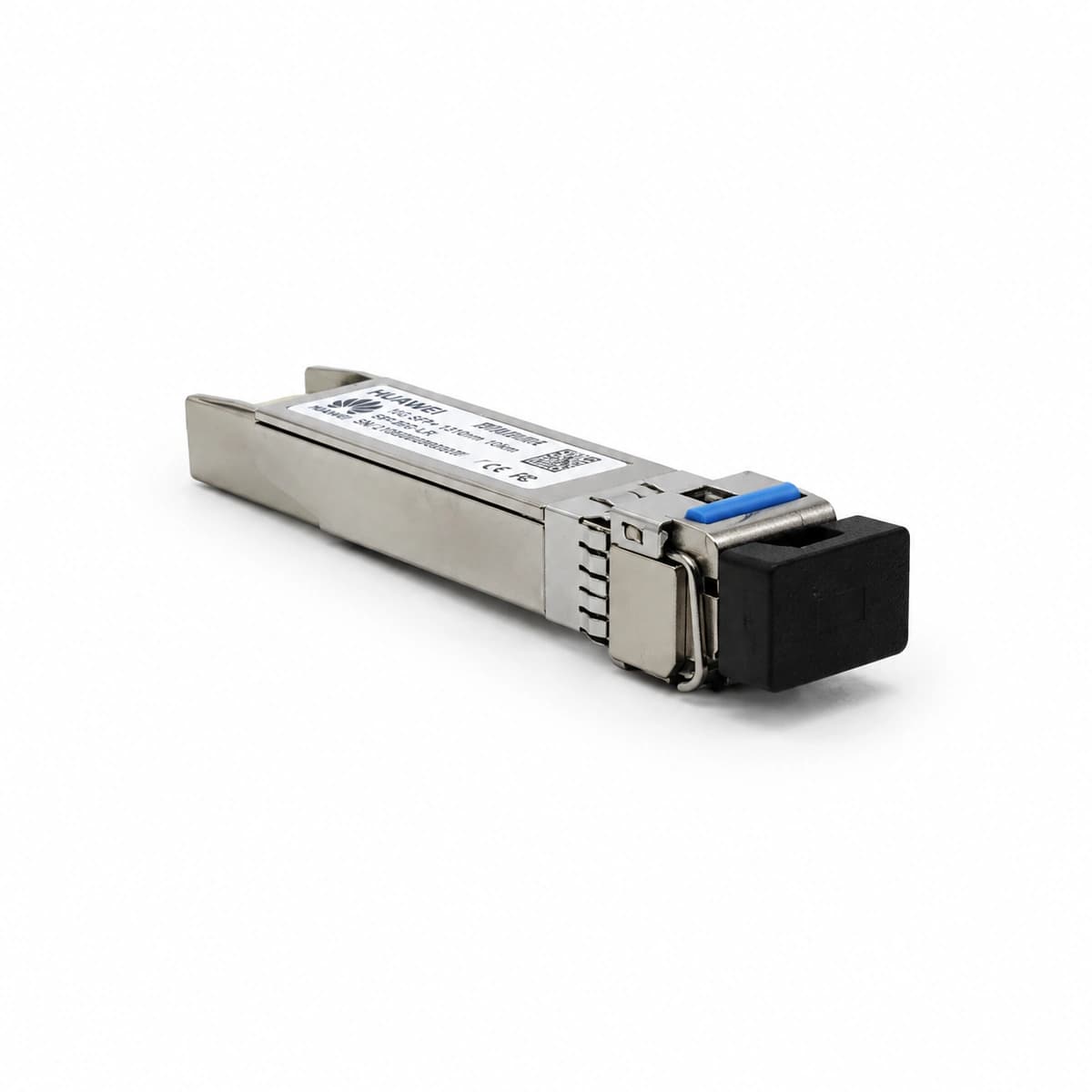

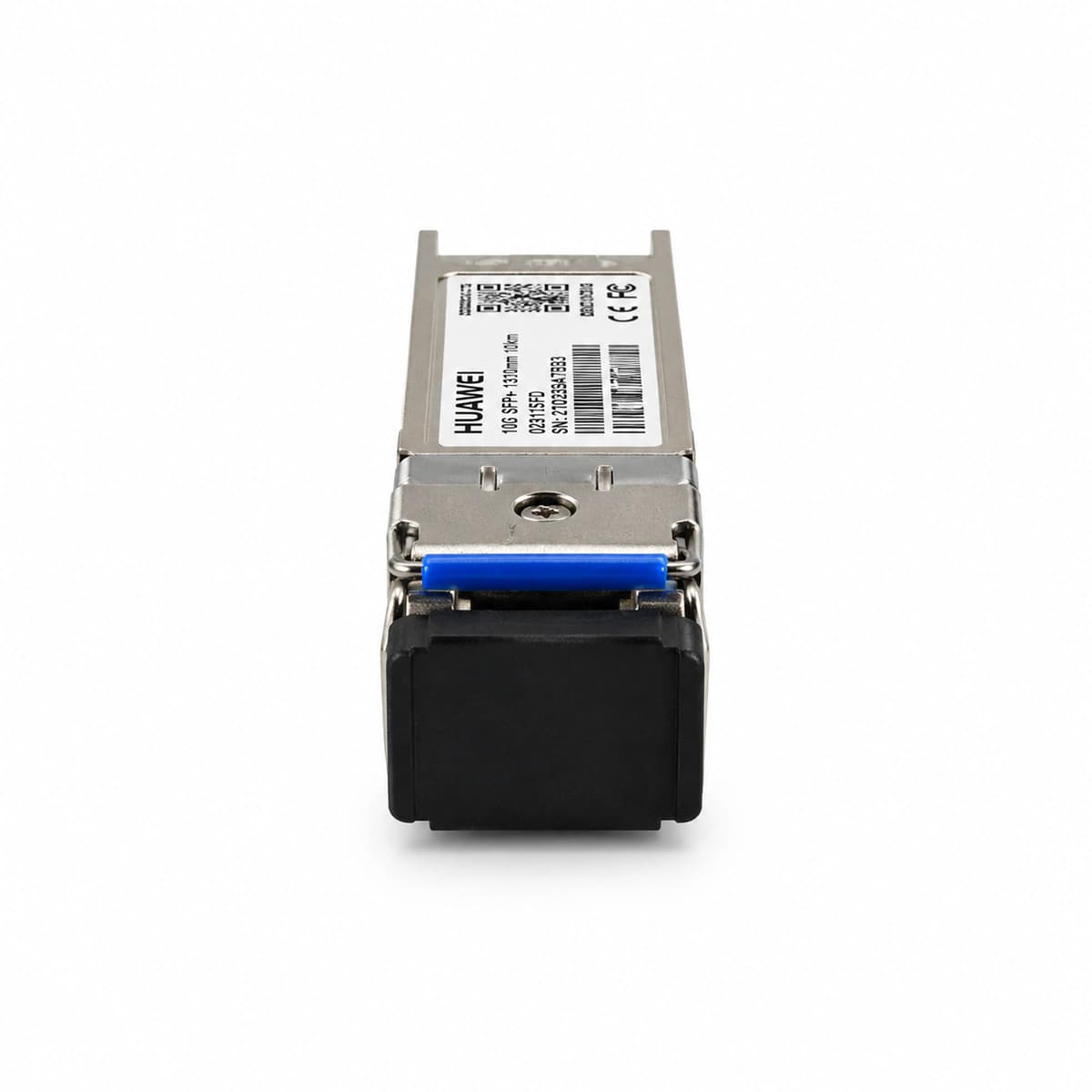

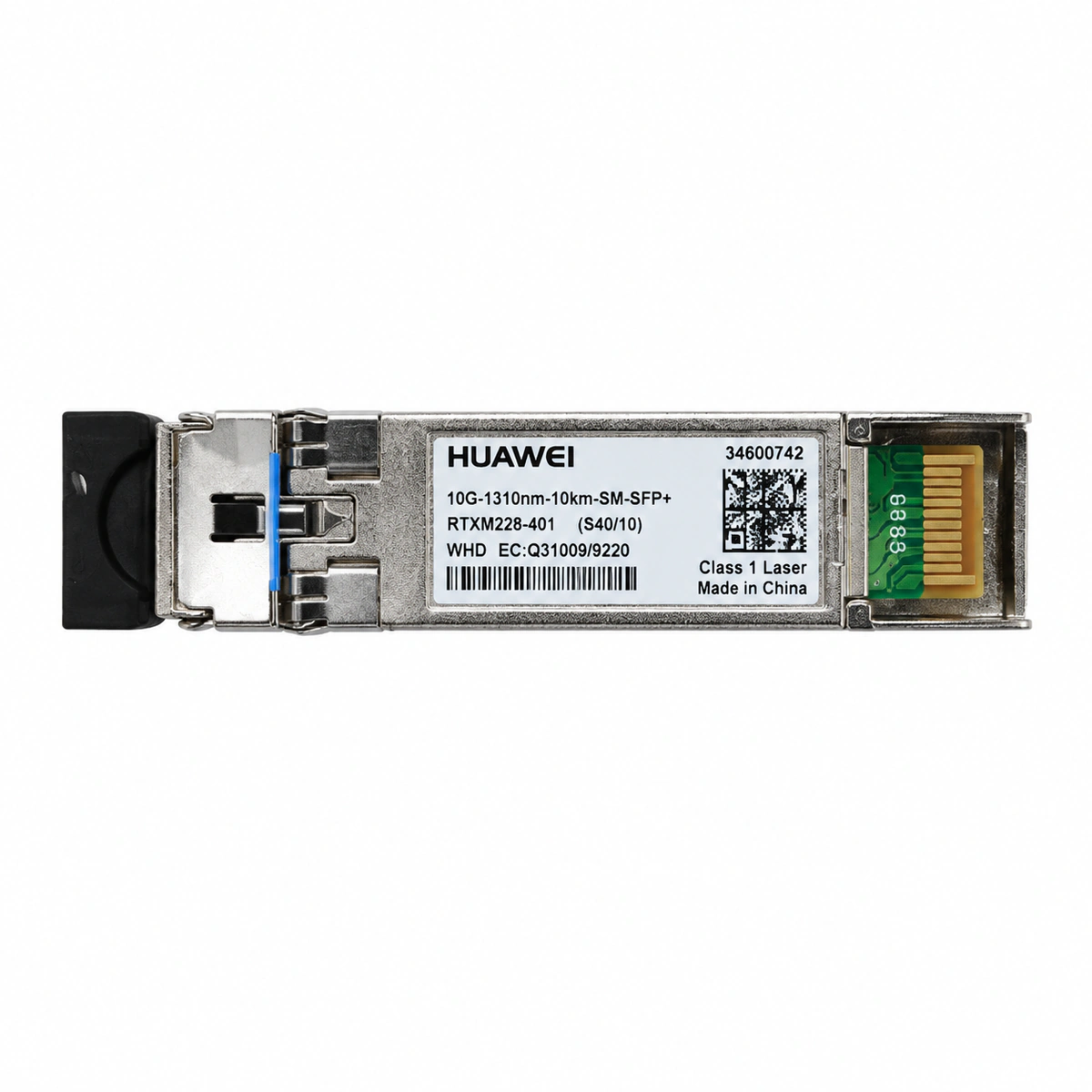

Huawei 10G SFP+ 1310nm 10km Single-Mode Optical Transceiver Module (10GBASE-LR)

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

Enterprise campus aggregation networks

Telecom central office distribution

Storage area network (SAN) interconnects

Frequently asked questions
