Carrier-grade industrial high-frequency switch-mode power supply designed for high-efficiency AC/DC conversion, bus regulation, and intelligent battery management.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Carrier-grade industrial high-frequency switch-mode power supply designed for high-efficiency AC/DC conversion, bus regulation, and intelligent battery management.
Resolves power grid instability, branch circuit metering latency, battery bank premature aging, and unattended facility management challenges.
Ideal for enterprise cloud data centers, high-voltage utility substations, telecommunications central offices, and industrial automation.
| Key specifications | Value |
|---|---|
| Dimensions | 190 × 120 × 45 mm |
| Operating Temperature Range | 25°C to +70°C |
| DC Bus System Voltage | 48V / 110V / 220VDC |
| Communication Bus | Isolated RS485 / CAN Bus |
| Capacity & SOH Estimation | Online Ah & SOH Calculation |
| Measurement Accuracy | Voltage ±0.1% / Current ±0.5% |
| Electrical Isolation Rating | 2500VRMS Optical Isolation |
| Maintenance Mode | Live Hot-Plug Supported |
| Mechanical Mounting | 35mm DIN-Rail or Backplate Screws |
| Power Consumption | < 5W |
Emerson
Carrier-grade industrial high-frequency switch-mode power supply designed for high-efficiency AC/DC conversion, bus regulation, and intelligent battery management.
Compact 48V/25A single-phase high-frequency rectifier offering ultra-wide AC input tolerance and autonomous active load sharing.
48V 30A switch-mode telecom rectifier featuring an ultra-wide AC input range, autonomous active current sharing, and CAN/RS485 digital monitoring.

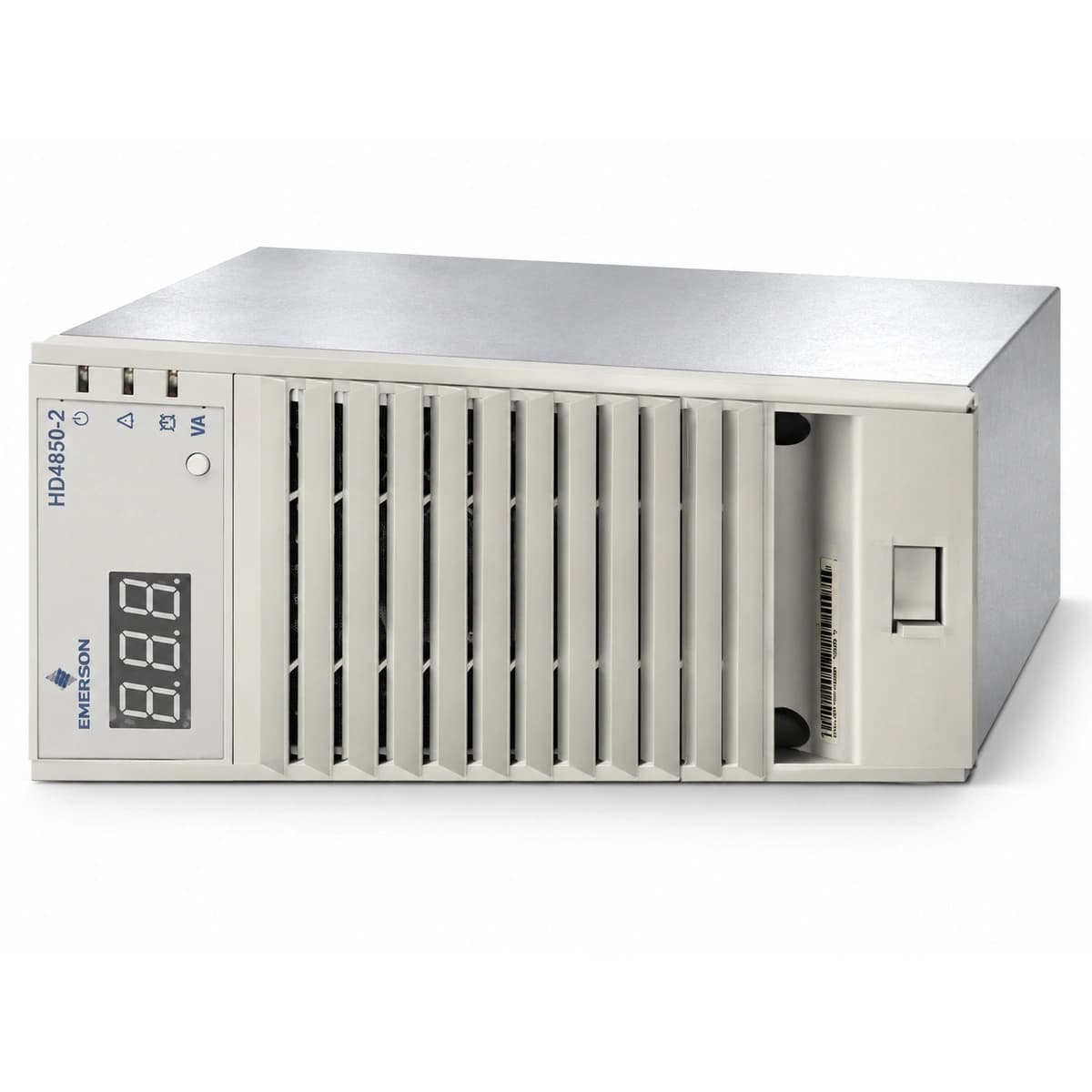

Featuring active power factor correction (APFC) and high-frequency soft-switching resonance topology, the HD4850-2 delivers a peak conversion efficiency exceeding 93.0%. An intelligent variable-speed cooling fan dynamically regulates thermal airflow based on real-time load and ambient temperatures. Fully hot-pluggable under load, the module incorporates comprehensive input/output overvoltage, short-circuit, and thermal foldback protections to safeguard continuous 24/7 network availability.
