Eltek 252189 Subrack Telecom DC Power System (-48V 4-Slot Flatpack2)
Compact 2U -48VDC telecom-grade embedded power system supporting high-efficiency Flatpack2 rectifiers with integrated distribution and intelligent battery management.
EltekModel: V2500AIWN

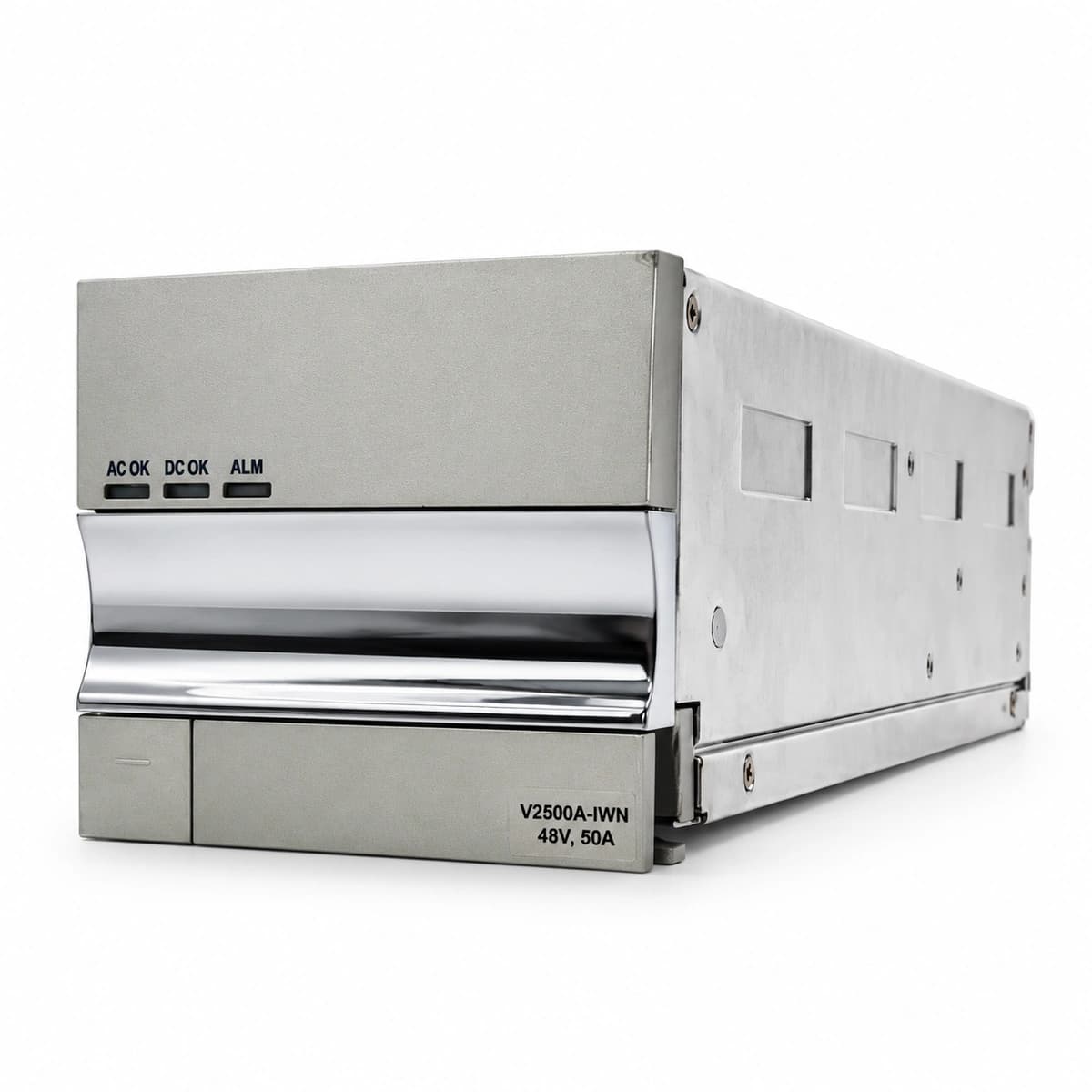

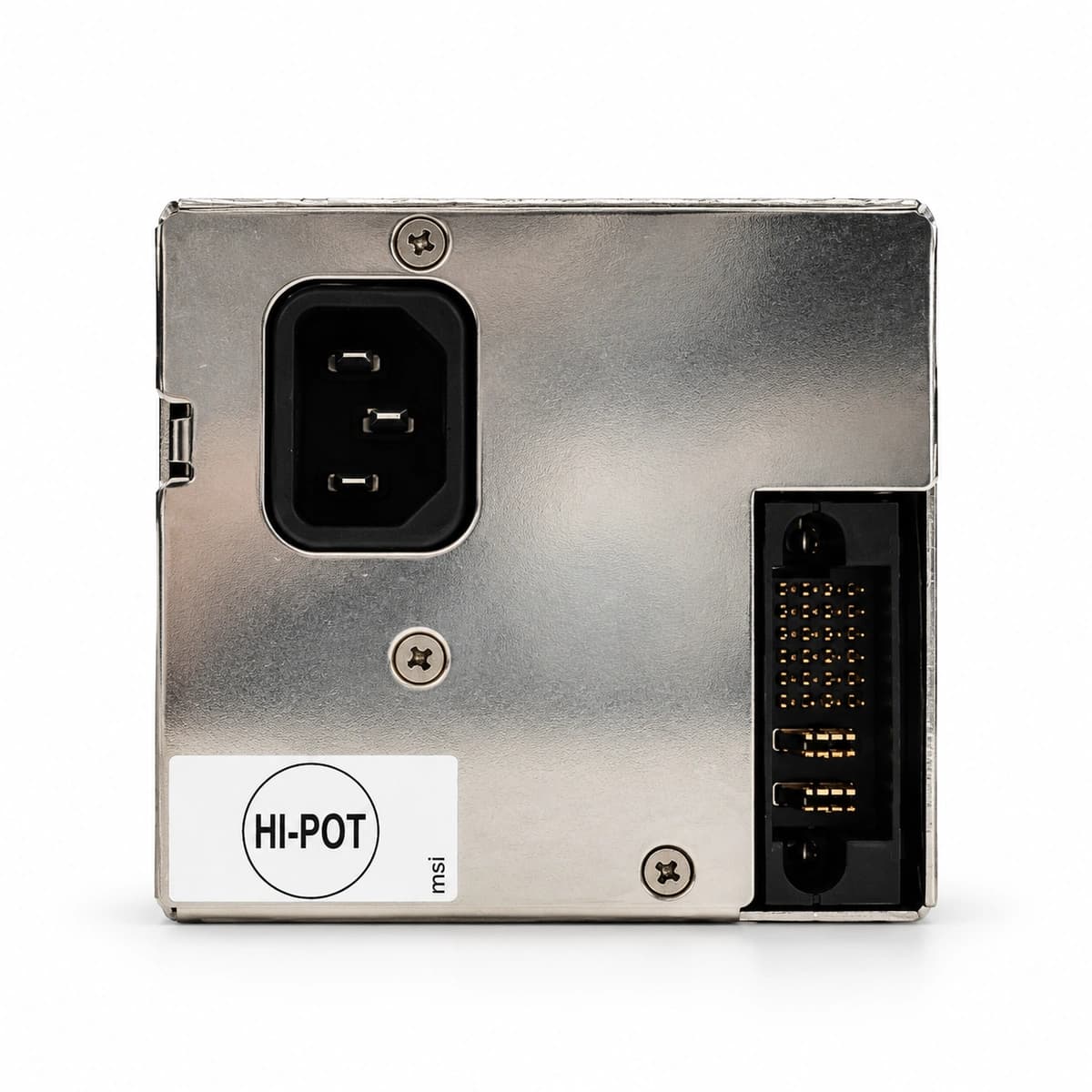

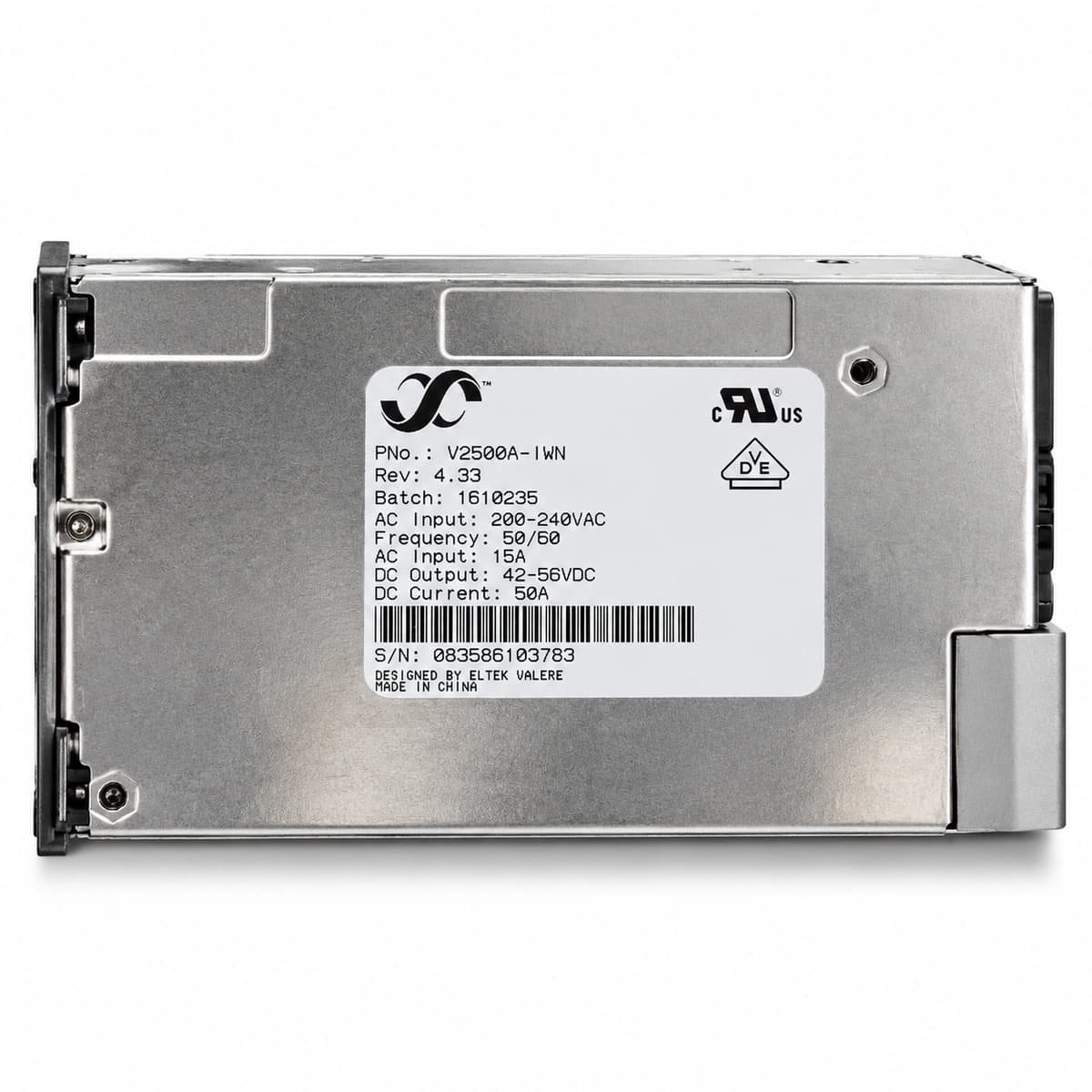

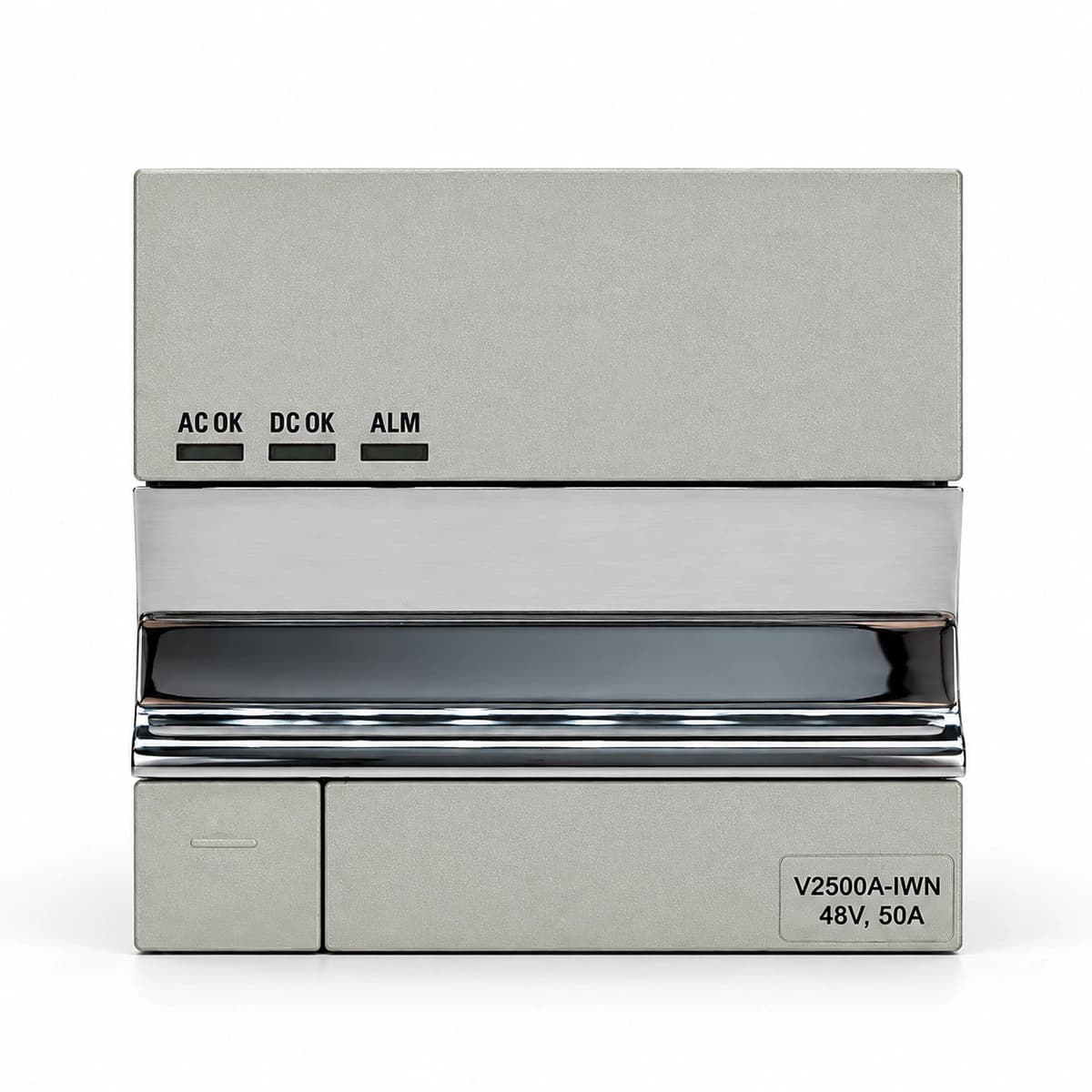

Eltek V2500AIWN Telecom Switch-Mode Rectifier Module (-48V 50A 2500W 4kV Surge Conformal Coating)
The Eltek V2500AIWN is an industrial-grade telecom power infrastructure unit engineered for high-reliability base stations and mission-critical edge facilities.
Talk to RICEWIND
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Clear support from selection to delivery
360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
What this product is
What this product is
A carrier-grade power unit designed by Eltek to deliver stable DC/AC electricity under demanding grid conditions and harsh outdoor environments.
What problem it solves
Eliminates unexpected site downtime caused by AC utility voltage surges, severe brownouts, and load transient disruptions.
Who and where it is for
Telecom macro sites, small cells, edge computing nodes, optical transport nodes, and railway signaling power systems.
Core advantages
- Ultra-wide operating voltage tolerance for volatile utility grids
- Advanced digital control loop delivering exceptional peak efficiency
- Full hot-swappable architecture with integrated surge & over-current protection
- Industrial long-life components with superior MTBF reliability
Technical specifications
| Key specifications | Value |
|---|---|
| Input Voltage Range | 180VAC ~ 275VAC (Nominal 230VAC 50/60Hz) |
| Nominal DC Output Voltage | -48VDC (Adjustable -43VDC ~ -57.6VDC) |
| Rated Output Current | 50A |
| Rated Output Power | 2500W |
| Form Factor & Mounting | Rackmount Hot-swappable Cassette |
| Wide Operating Temperature Range | -25°C ~ +60°C |
| Cooling Architecture | Forced Air Cooling with Automatic Fan Control |
| Peak Conversion Efficiency | ≥92.5% |
Applications
01
Telecom carrier macro and micro BTS DC power distribution
02
Edge computing data center infrastructure backup
03
Industrial automation and communication transmission nodes
