Question 1

How should a 'CAN Node Missing / Rectifier Communication Failure' alarm be diagnosed at the hardware layer?

Accepted Answer

Isolate secondary control power and measure the termination resistance across CAN_H and CAN_L lines using a calibrated digital multimeter at the Smartpack2 Basic (242100.502) CAN terminals. In a properly configured network with dual 120Ω end-of-line resistors, the equivalent loop resistance must read approximately 60Ω (±5Ω). A reading of 120Ω indicates an open loop or missing end terminator; close to 0Ω indicates a line short; infinite resistance indicates an open circuit or physical transceiver failure. Next, verify that differential CAN voltages respect ISO 11898 levels (CAN_H approx. 2.5V–3.5V, CAN_L approx. 1.5V–2.5V relative to CAN ground). Inspect backplane connector pins on rectifier slots for bent contacts, fretting corrosion, or excessive high-frequency switching noise exceeding common-mode transceiver limits.

Question 2

What causes the LVD (Low Voltage Disconnect) contactor driven by Smartpack2 Basic to fail to trip or close at configured thresholds, and how is it tested?

Accepted Answer

Follow this phased isolation procedure: 1. Mode Configuration Mismatch: Confirm whether the driver output is programmed for 'Bistable' (pulse-driven latching coils) or 'Monostable' (continuously energized coils). Driving a bistable coil with monostable continuous voltage overheats and burns the coil; driving a monostable coil with bistable pulses results in immediate dropout after the pulse clears. 2. Driver Circuit and Flyback Diode Check: Oscilloscope/meter measurement must capture the trigger pulse or continuous drive voltage at the LVD terminal pins. Inspect the external inductive kickback clamp diode across the contactor coil; a shorted freewheeling diode pulls down the driver stage and triggers hardware overcurrent shutdown, while an open diode risks driver FET avalanche breakdown. 3. Auxiliary Feedback Verification: Inspect auxiliary contact return lines wired into the Basic controller's digital inputs; if contact status feedback fails due to contact degradation, the controller flags an 'LVD Fail' alarm and inhibits further control states.

Question 3

How do you calibrate and troubleshoot battery symmetry/midpoint voltage measurement drifts and false alarms on the Smartpack2 Basic?

Accepted Answer

1. Hardware Sensing Wiring and Contact Impedance: Midpoint symmetry relies on high-impedance differential analog inputs. Measure the true physical potential at the battery midpoints with a calibrated high-accuracy multimeter and compare it directly across the Smartpack2 Basic input terminals. If a discrepancy exists, inspect inline midpoint protective fuses (typically 1A fast-acting ceramic fuses) for partial degradation, high resistance, or terminal oxidation. 2. Common-Mode Noise & Coupling: Ensure symmetry sense cables do not run parallel to high-current AC cabling or high-frequency inverter DC cables, which inject capacitive coupling into the ADC sense stage. Verify proper reference ground bonding of the main DC bus. 3. Calibration & Filter Tuning: If hardware voltages match physical strings but the controller ADC drifts, access the 'Battery Symmetry Calibration' menu via the Master UI or PowerSuite service software. Enter precision voltage offsets measured via calibrated digital voltmeter, recalculate the ADC channel gain, and set the symmetry alarm damping filter between 5 to 10 seconds to filter out transient battery charge-discharge switching spikes.

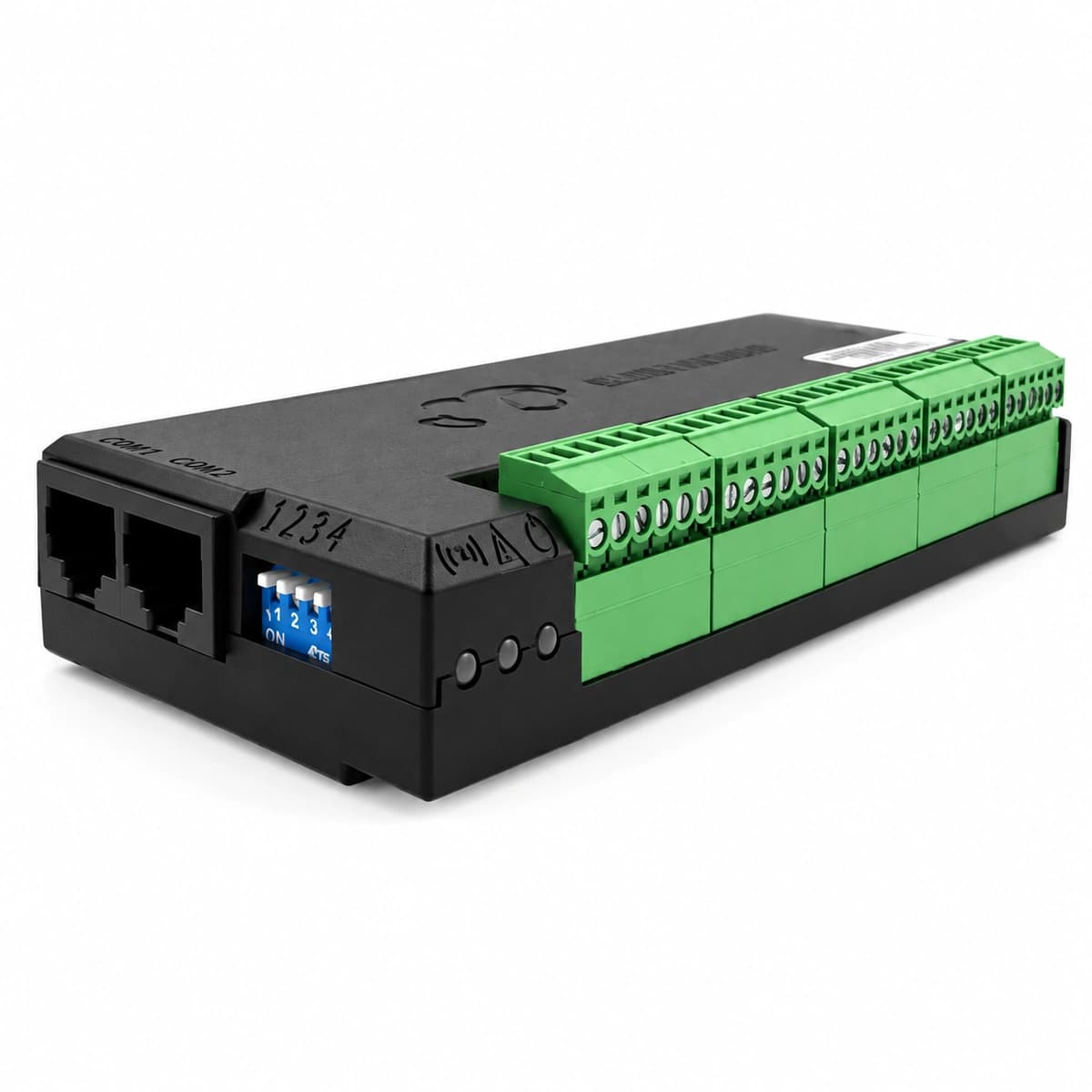

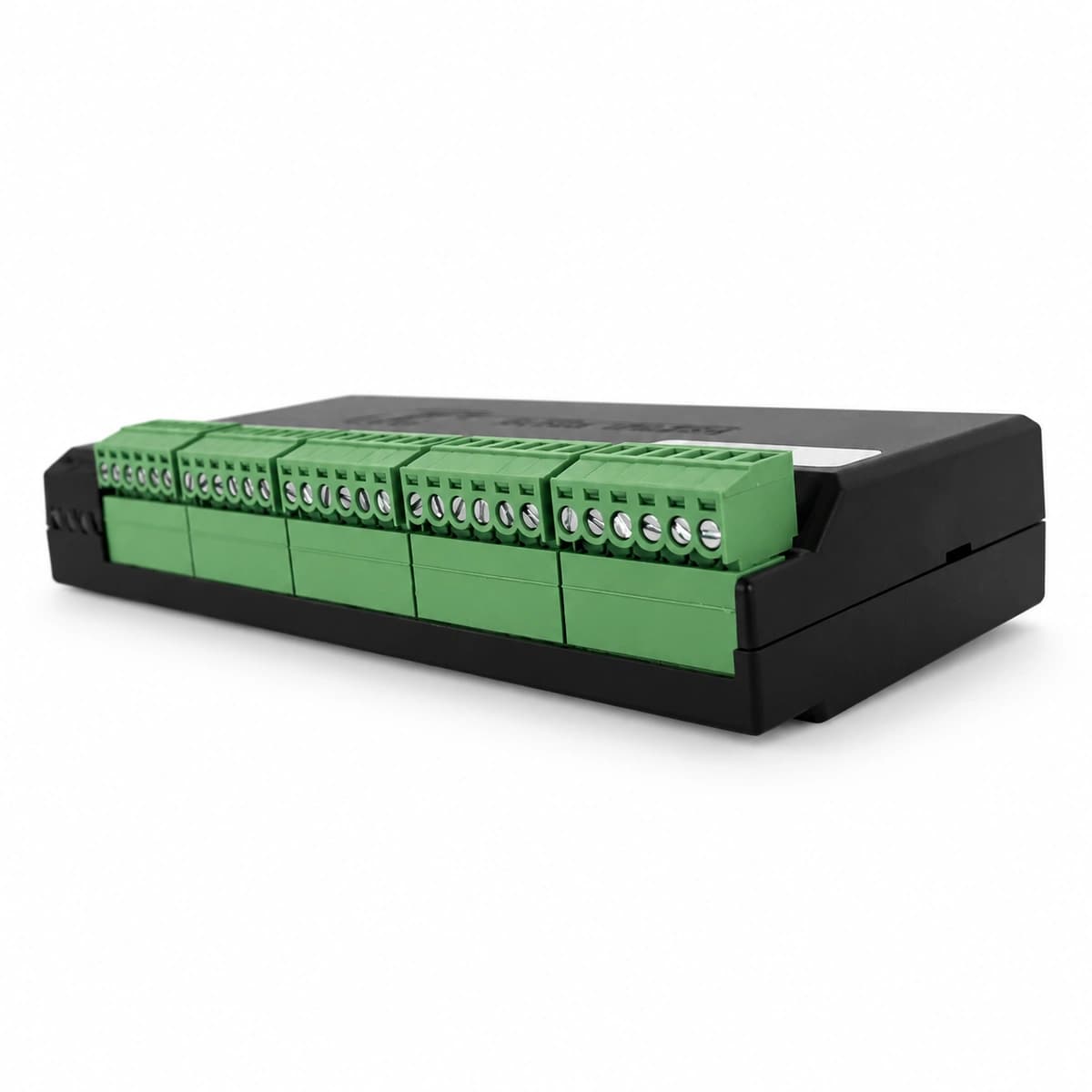

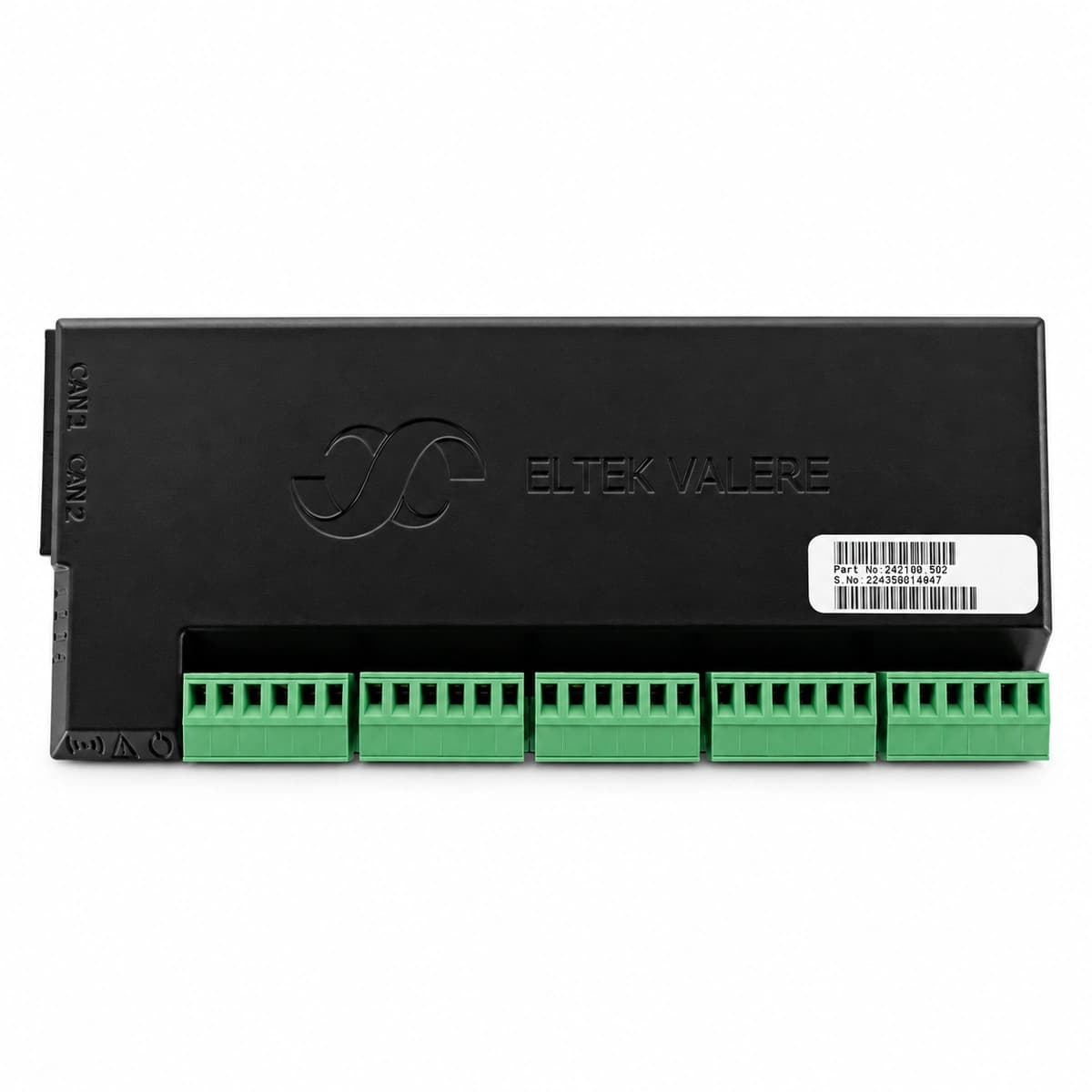

Eltek Smartpack2 Basic Power Controller (242100.502)

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

Telecommunications 24V/48V macro cell site and central office DC power plant supervision

Substation utility DC control systems requiring continuous battery midpoint symmetry tracking

Off-grid hybrid renewable and diesel microgrid DC power regulation

Frequently asked questions
