EltekModel: Eltek Flatpack2 4AC Power System Subrack (268035)
Eltek Flatpack2 268035 4AC 2U 19-Inch 4-Position Telecom Rectifier Power Subrack 12kW

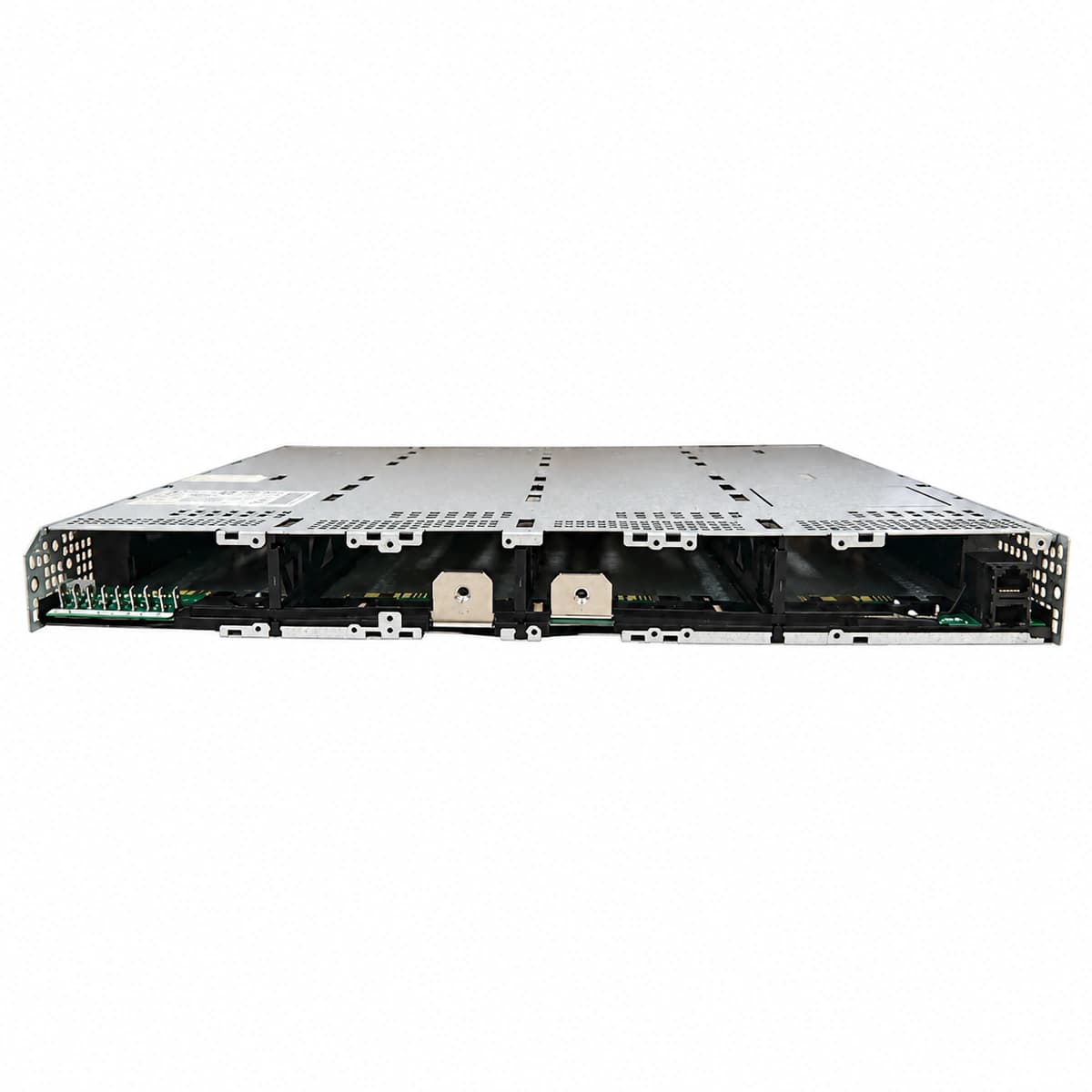

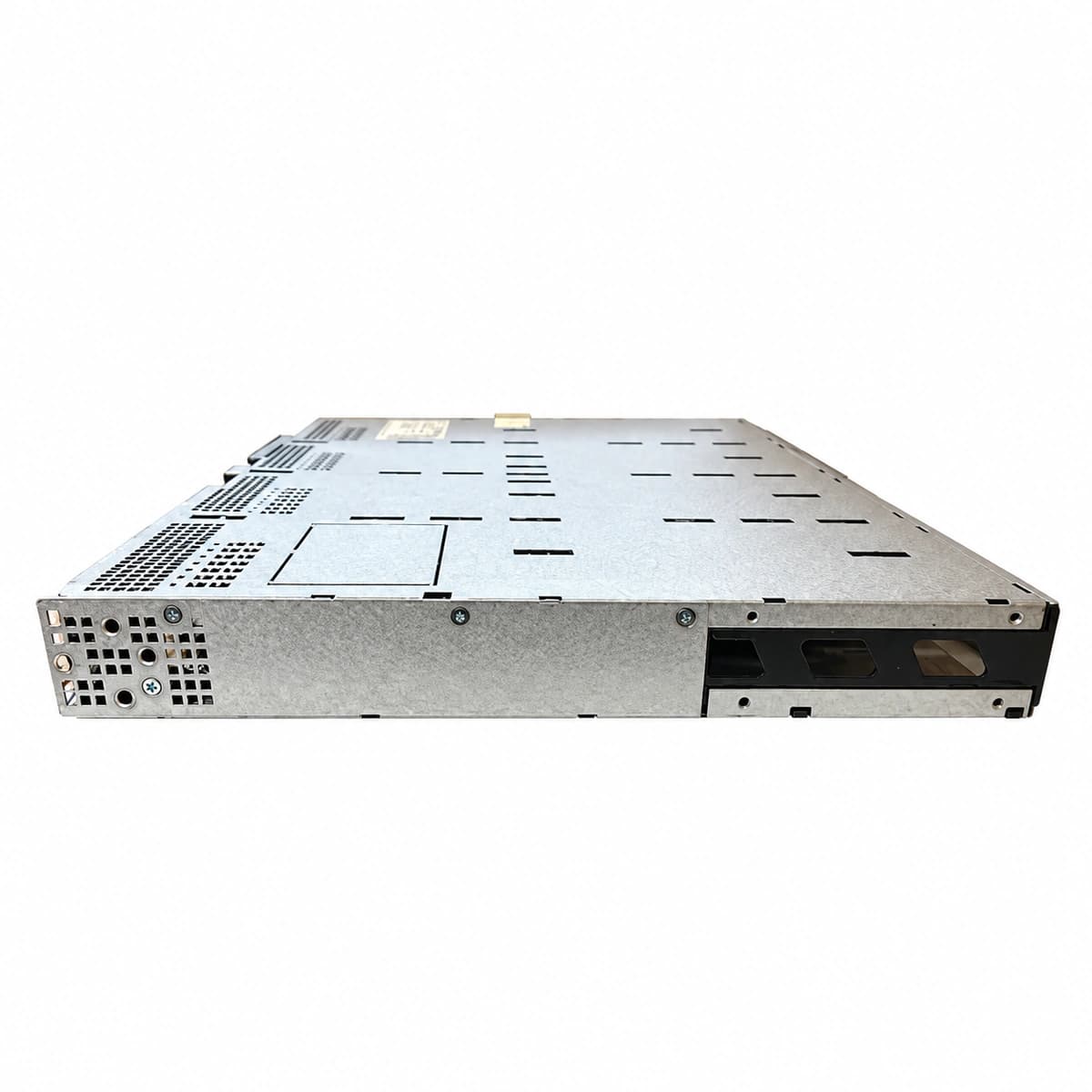

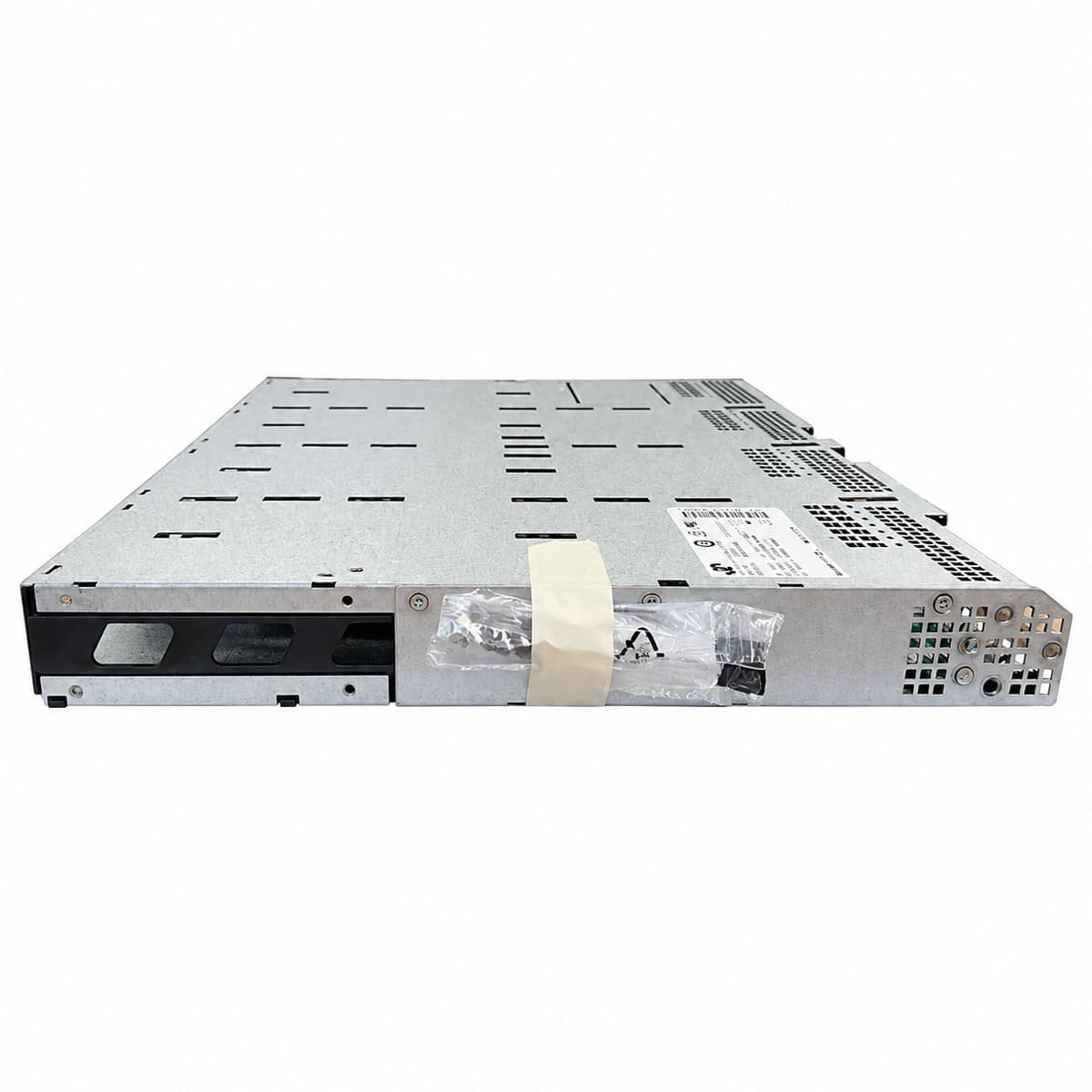

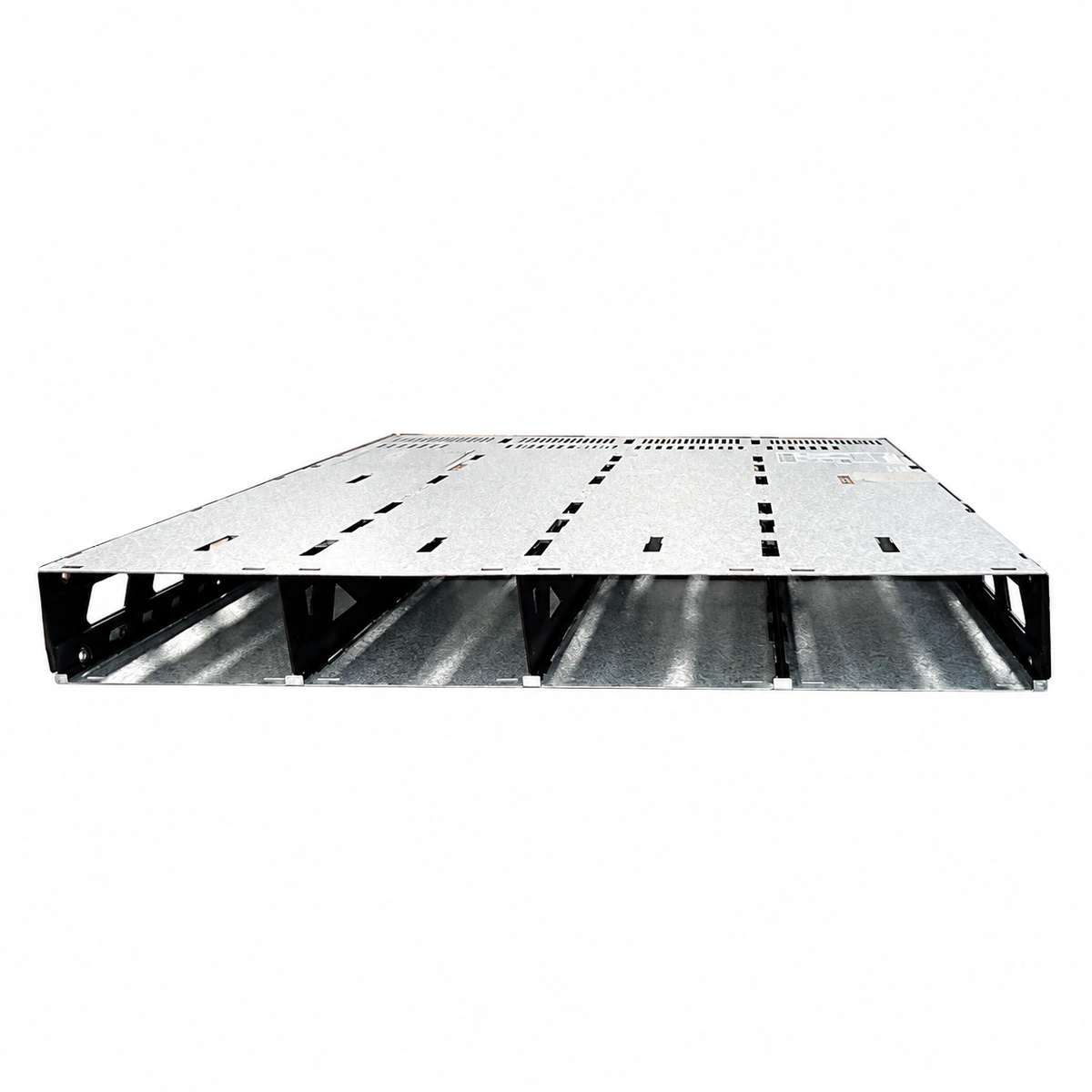

The Eltek 268035 is an industrial-grade 19-inch 2U 4-position power subrack engineered for telecom DC power systems, featuring 4 independent AC input terminals and blind-mate backplane to house up to four Flatpack2 HE/SHE rectifier modules, delivering up to 12kW (300A) continuous -48V DC power.
Pricing is confirmed by project configuration and quantity
Request a quote- System Output Capacity
- 4-slot 19-inch standard rack subrack (supports up to 12kW output)
- Compatible Rectifiers
- Fully compatible with Flatpack2 48/2000 HE, 48/3000 HE, and SHE modules
- AC Input Wiring Spec
- 4 independent AC input power terminals (supporting single-phase and multi-phase distribution)
- DC Bus Capacity
- Heavy-duty high-current DC copper busbar output (up to 300A continuous current carry)
- System Comprehensive Efficiency
- Overall system efficiency reaches 96.5% to 97.8% when paired with HE/SHE rectifiers
- Hot-Swap Capability
- Supports hot-plugging of 4 modules with blind-mate backplane high-speed CAN communication handshake
What this product is
What this product is
The Eltek 268035 is an industrial-grade 19-inch 2U 4-position power subrack engineered for telecom DC power systems, featuring 4 independent AC input terminals and blind-mate backplane to house up to four Flatpack2 HE/SHE rectifier modules, delivering up to 12kW (300A) continuous -48V DC power.
What problem it solves
The Eltek Flatpack2 268035 4AC power subrack serves as the robust structural and electrical foundation for critical telecommunications and network power infrastructures. Engineered in a compact 2U 19-inch standard chassis, this subrack integrates four dedicated blind-mate slots with individual AC input power terminals for each module position, providing complete electrical isolation and flexibility across single-phase or multi-phase power distribution grids. The integrated DC backplane is fabricated with heavy-duty low-impedance tinned copper busbars designed for up to 300A continuous bus current, combined with high-speed digital CAN bus lines for instantaneous plug-and-play communication with Smartpack/Smartpack S supervisory controllers. Supporting Flatpack2 48/2000 HE, 48/3000 HE, and SHE ultra-high-efficiency modules, the subrack facilitates complete system efficiencies exceeding 96.5% while guaranteeing superior mechanical rigidity, thermal dissipation airflow, and harsh environment electrical safety.
Who and where it is for
The Eltek 268035 is an industrial-grade 19-inch 2U 4-position power subrack engineered for telecom DC power systems, featuring 4 independent AC input terminals and blind-mate backplane to house up to four Flatpack2 HE/SHE rectifier modules, delivering up to 12kW (300A) continuous -48V DC power.
Core advantages
- Ultra-dense 12kW / 300A capacity within a standard 2U 19-inch rack footprint
- Four dedicated individual AC feed terminals for phase balancing and safety
- Native hot-swap blind-mate backplane with automated digital CAN-bus pairing
- Heavy-duty low-loss tinned solid copper busbar for superior thermal control
- Robust operating performance across extreme -40°C to +75°C environments
- Optimized front-to-rear laminar thermal air path for enhanced cooling life
Technical specifications
| Key specifications | Value |
|---|---|
| System Output Capacity | 4-slot 19-inch standard rack subrack (supports up to 12kW output) |
| Compatible Rectifiers | Fully compatible with Flatpack2 48/2000 HE, 48/3000 HE, and SHE modules |
| AC Input Wiring Spec | 4 independent AC input power terminals (supporting single-phase and multi-phase distribution) |
| DC Bus Capacity | Heavy-duty high-current DC copper busbar output (up to 300A continuous current carry) |
| System Comprehensive Efficiency | Overall system efficiency reaches 96.5% to 97.8% when paired with HE/SHE rectifiers |
| Hot-Swap Capability | Supports hot-plugging of 4 modules with blind-mate backplane high-speed CAN communication handshake |
| Physical Dimensions Spec | 482 × 380 × 88 mm (standard 2U 19-inch depth) |
| Operating Temperature | -40°C to +75°C |
Applications
01
4G/5G macro cell towers and outdoor distributed BBU/RRU -48V DC power shelters
02
Telecommunications central offices, core transmission sites, and subsea cable stations
03
Edge computing data center infrastructure and high-density modular server racks
04
Electrical utility substation automation systems and railway signaling power hubs
