Question 1

What engineering condition is indicated when the front yellow LED is steady or flashing, and how should it be diagnosed?

Accepted Answer

A steady yellow LED indicates a secondary alarm or non-critical protection mode: AC input voltage is outside standard thresholds (<85VAC or >300VAC), or the module has entered thermal derating due to high ambient temperature or obstructed heatsinks. A flashing yellow LED indicates a loss of CAN bus communication between the rectifier and the system controller (Smartpack/Smartpack2). Engineering diagnostic steps: 1) Verify AC input voltage at the backplane terminals with a true-RMS multimeter; 2) Inspect front intake grilles and internal airflow paths for thermal choking; 3) Re-seat the module firmly into the power shelf to ensure full engagement of the rear connector pins and inspect CAN bus termination and controller communication status.

Question 2

A steady red LED signifies a module shutdown/lockout. What are the primary root causes, and how do you differentiate between internal hardware failure and external faults?

Accepted Answer

A solid red LED indicates a critical shutdown or hardware lockout. Primary causes: 1) DC Output Overvoltage Protection (OVP) tripped (>59-60VDC threshold); 2) Catastrophic internal overheating; 3) Internal power stage failure (shorted PFC/LLC MOSFETs, blown primary/secondary internal fuses); 4) Critical cooling fan failure or tachometer stall. Isolation method: Power down the AC circuit, remove the suspect module, and insert it into a known-good slot on another subrack. Re-apply AC power: If the red LED illuminates immediately and the fan fails its initial rev test, the failure is internal (module replacement required). If the module boots up with a green LED and sustains nominal load, inspect the original shelf backplane for bus shorts, load surges, or invalid OVP configuration in the Smartpack controller.

Question 3

What engineering root causes lead to severe load-sharing imbalance in parallel multi-module systems, and how should it be rectified?

Accepted Answer

Flatpack2 utilizes an active digital current-sharing scheme managed via CAN bus communications, maintaining load imbalance within ±5% of rated current. If a module delivers significantly higher/lower current or drops to zero while others carry the load, root causes include: 1) CAN bus interruption or frame packet loss, forcing the rogue module into autonomous fallback regulation without reference synchronization; 2) Unequal DC contact resistance caused by oxidised backplane connector blades; 3) Firmware version discrepancies or duplicate CAN address mappings; 4) One module experiencing thermal throttling due to local fan degradation. Corrective steps: 1) Audit the Smartpack controller log to verify all rectifiers show active online status without bus communication errors; 2) Reseat suspect units to clean connector interfaces; 3) Confirm uniform firmware versions and verify individual rectifier temperature sensors.

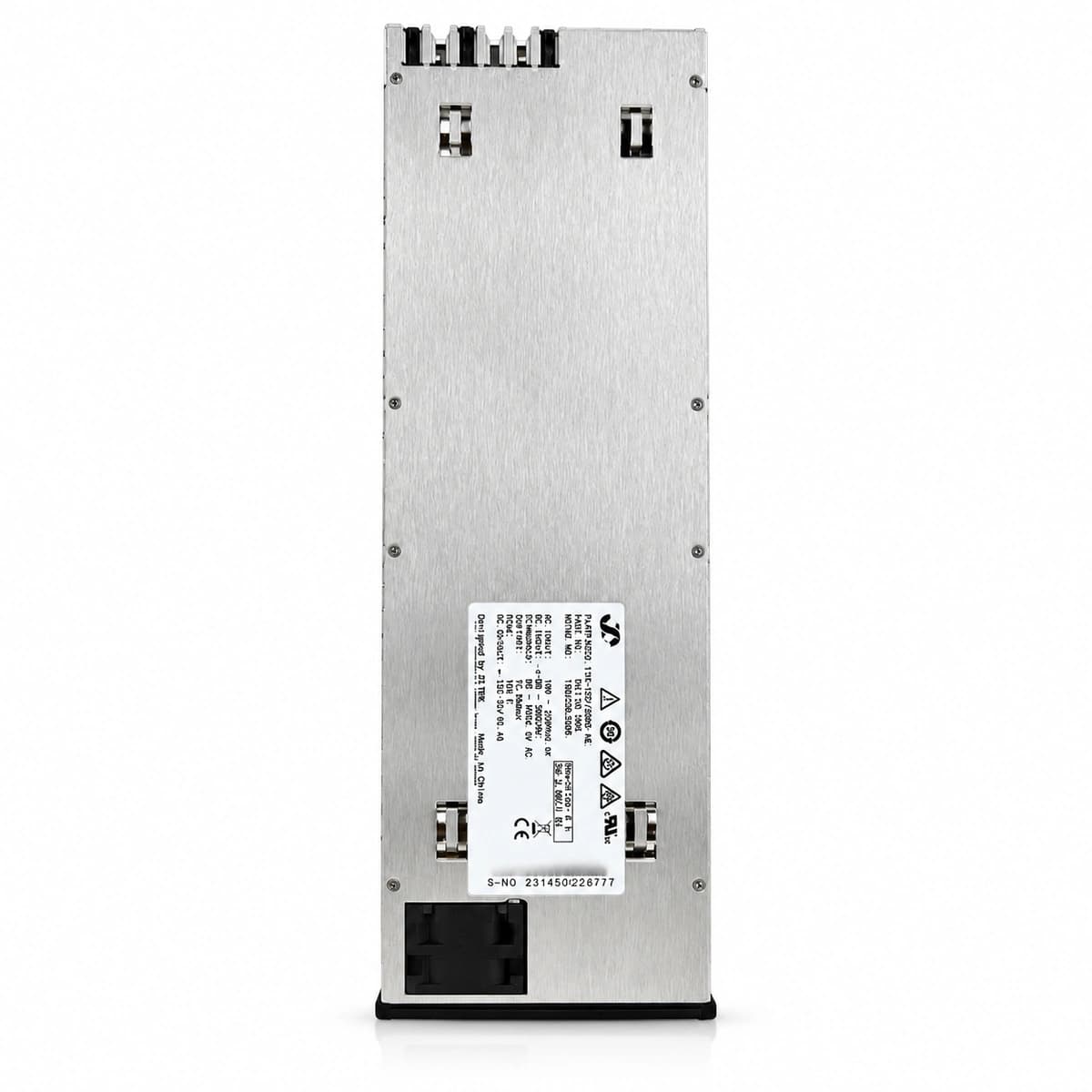

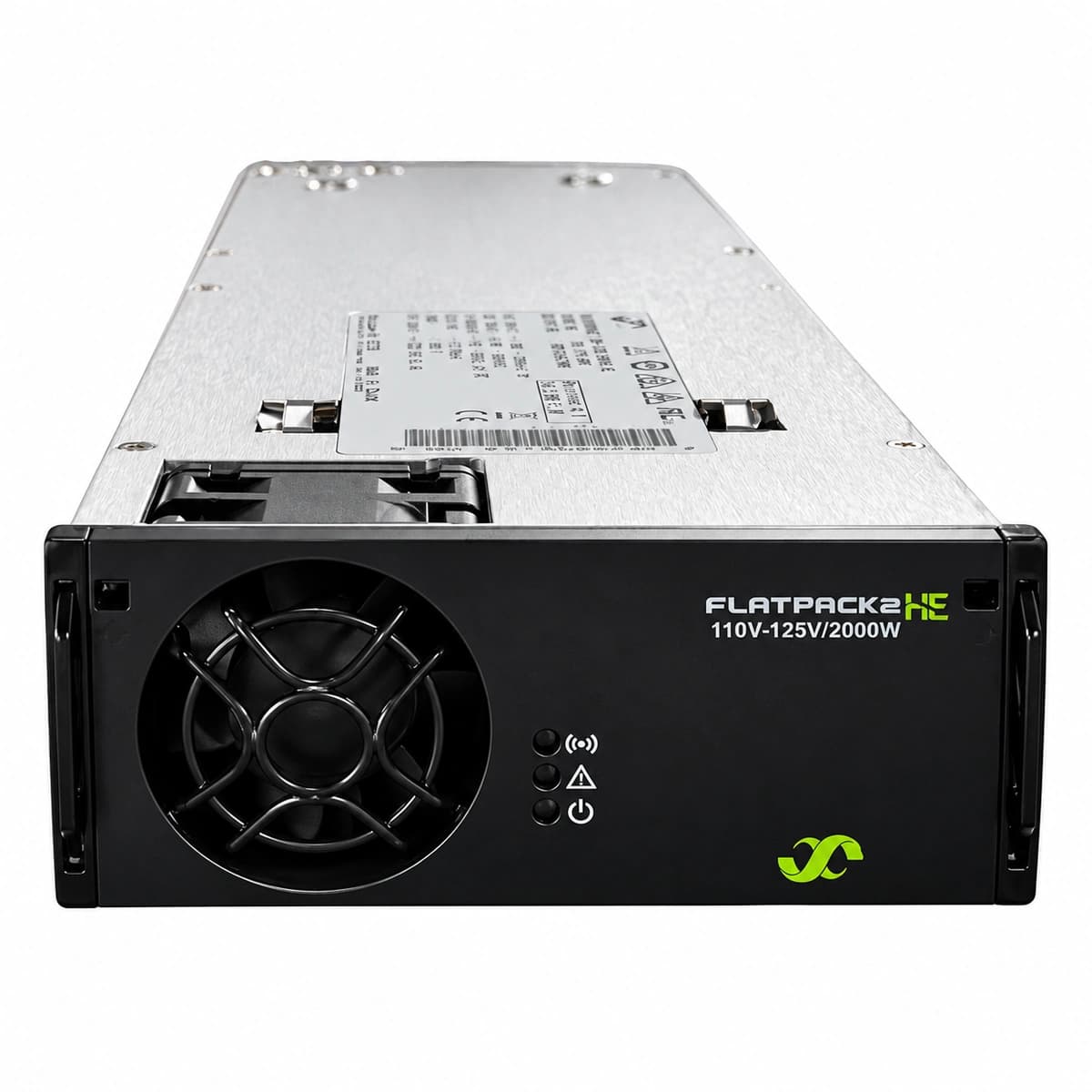

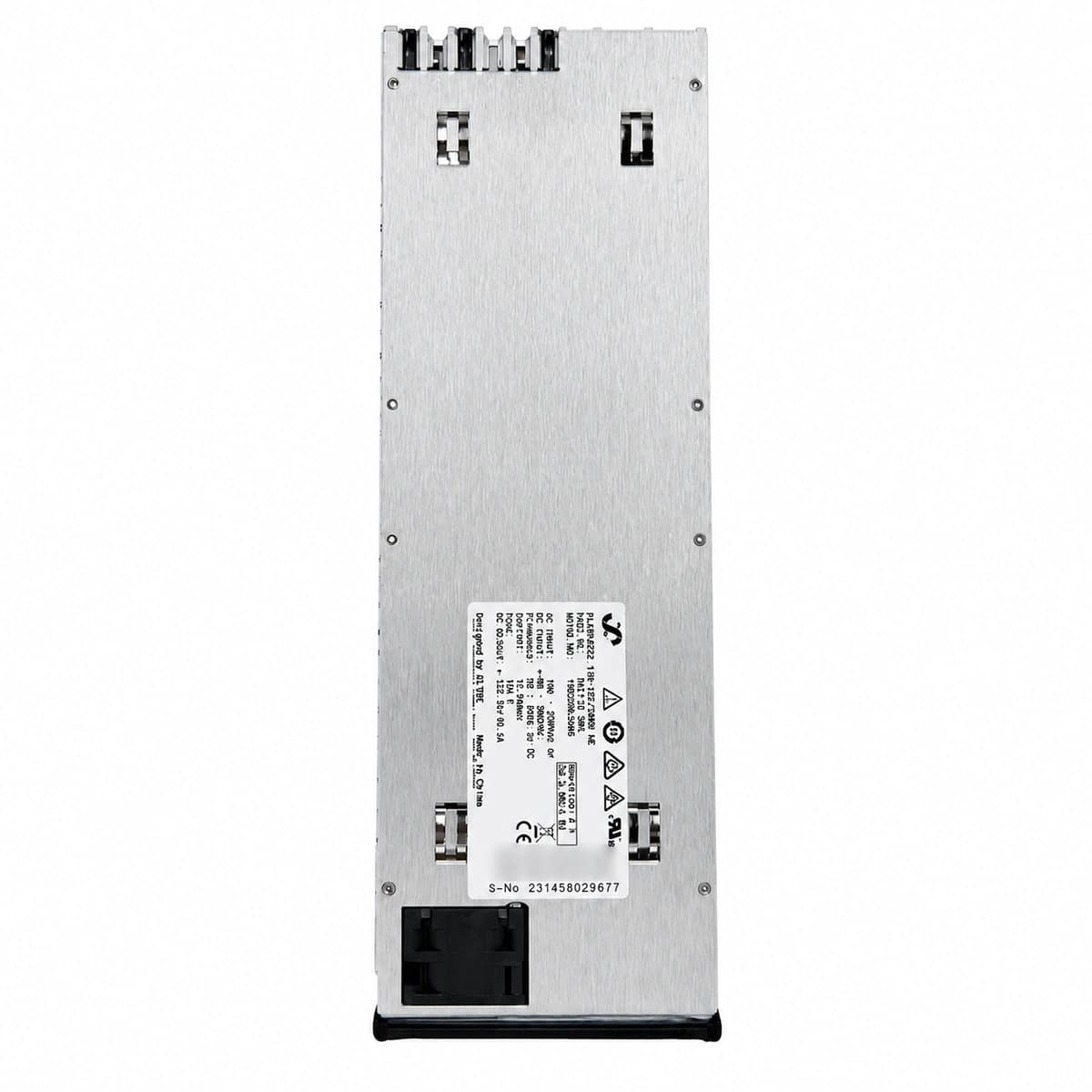

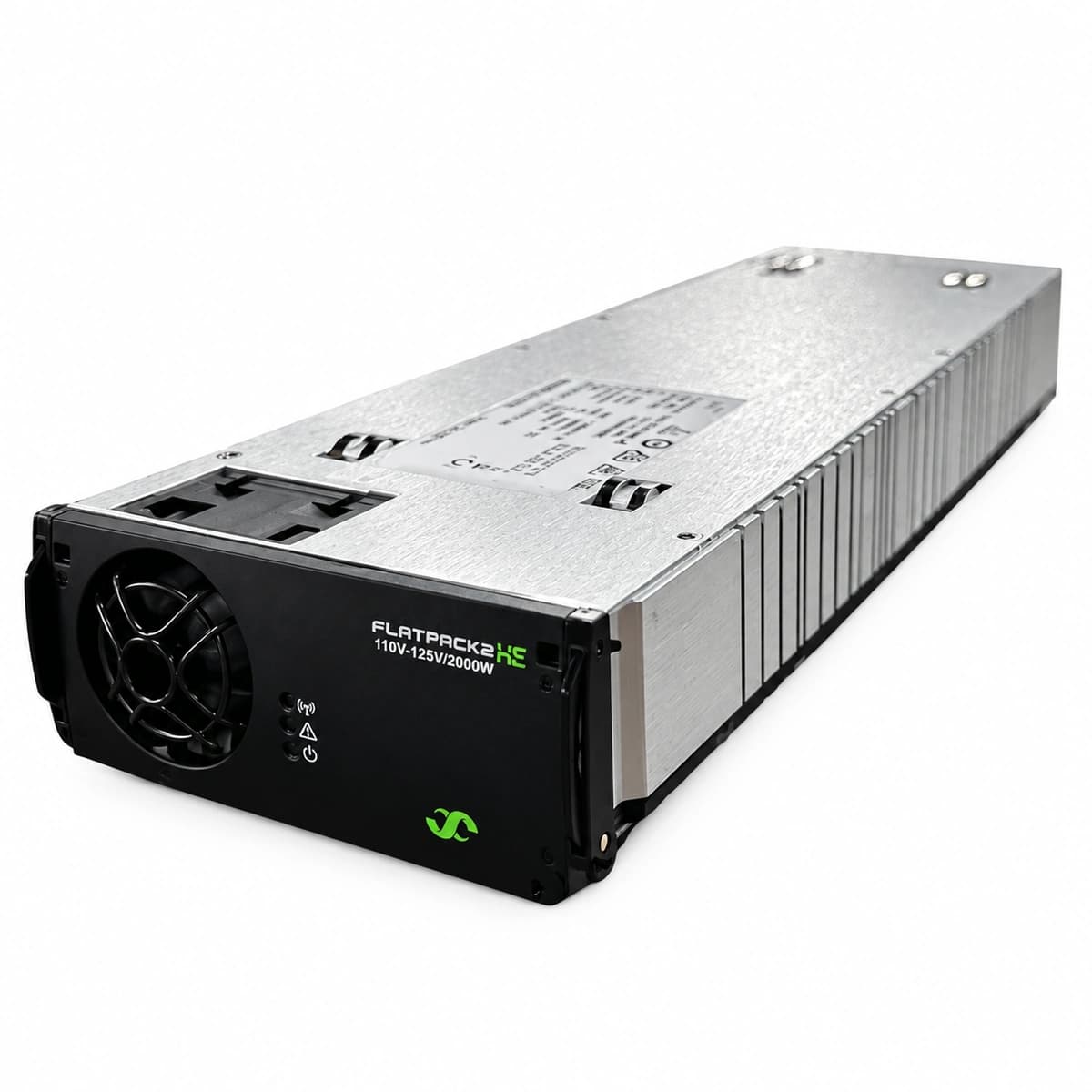

Eltek Flatpack2 48/2000 WOR HE High Efficiency Rectifier Module (241115.805)

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

4G LTE and 5G NR telecom infrastructure power supplies

Broadband access nodes, optical transmission rings, and cable headends

Substation utility SCADA controls and industrial automation power systems

Frequently asked questions

Continue exploring

Eltek 252189 Subrack Telecom DC Power System (-48V 4-Slot Flatpack2)

Eltek Flatpack2 24/2000 HE High Efficiency Rectifier Module (241115.205)

Eltek Flatpack2 48/3000 WOR HE Rectifier Module (241115.705)

Eltek I/O CAN Node Controller (242100.120)

Eltek Flatpack2 48/2000 WOR HE High Efficiency Rectifier Module (241115.805)

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

4G LTE and 5G NR telecom infrastructure power supplies

Broadband access nodes, optical transmission rings, and cable headends

Substation utility SCADA controls and industrial automation power systems

Frequently asked questions

What engineering condition is indicated when the front yellow LED is steady or flashing, and how should it be diagnosed?

A steady red LED signifies a module shutdown/lockout. What are the primary root causes, and how do you differentiate between internal hardware failure and external faults?

What engineering root causes lead to severe load-sharing imbalance in parallel multi-module systems, and how should it be rectified?

If a rectifier frequently reports AC input under/overvoltage alarms and undergoes cyclical restarts, what electrical parameters must be investigated?
