What are the input voltage margins and output adjustment limits for this DC-DC converter?

Input range spans -36VDC to -60VDC (nominal -48VDC). Output is regulated at +24VDC, adjustable between +20.5VDC and +29.0VDC with a continuous load capacity of 40A.

Is galvanic isolation maintained between input and output ports?

Yes, galvanic isolation of 1500VDC is provided between input, output, and chassis ground via high-frequency planar transformers and optocouplers, protecting 24V circuits from telecom bus surges.

How does the converter handle sustained output short circuits?

It employs constant-current limiting transitioning into auto-recovery hiccup mode under severe shorts, keeping thermal stress minimal and restoring normal +24V output immediately upon fault clearance.

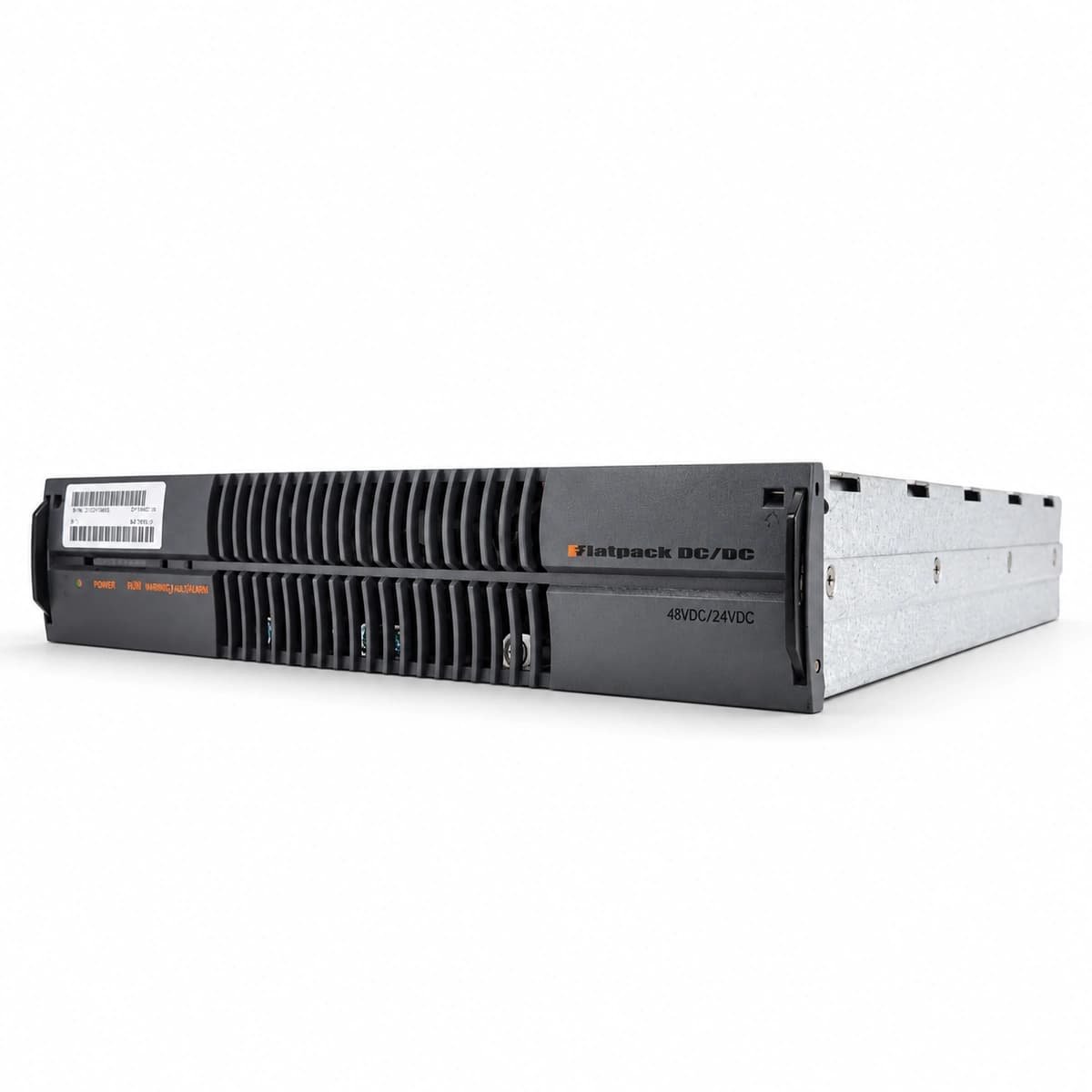

Eltek Flatpack DC-DC 40-24 G1 Genuine Telecom Hardware Shot 1

EltekModel: Flatpack DC-DC 40-24 G1

Eltek Flatpack DC-DC 40-24 G1 Step-Down Converter Module (48V to 24V 40A 1000W 1500V Galvanic Isolation)

The Eltek Flatpack DC-DC 40-24 G1 is an industrial-grade telecom power infrastructure unit engineered for high-reliability base stations and mission-critical edge facilities.

Talk to RICEWIND

Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.

Request a quote WhatsApp

Tel+86 17621197907

360°Technical support

N⁺Service commitment

3Steps shipping

100%Customer satisfaction

What this product is

A carrier-grade power unit designed by Eltek to deliver stable DC/AC electricity under demanding grid conditions and harsh outdoor environments.

What problem it solves

Eliminates unexpected site downtime caused by AC utility voltage surges, severe brownouts, and load transient disruptions.

Who and where it is for

Telecom macro sites, small cells, edge computing nodes, optical transport nodes, and railway signaling power systems.

Core advantages

Ultra-wide operating voltage tolerance for volatile utility grids
Advanced digital control loop delivering exceptional peak efficiency
Full hot-swappable architecture with integrated surge & over-current protection
Industrial long-life components with superior MTBF reliability

Technical specifications

Key specifications	Value
Input Voltage Range	-36VDC ~ -60VDC (Nominal -48VDC)
Nominal DC Output Voltage	24VDC (Adjustable 20.5VDC ~ 29VDC)
Rated Output Current	40A
Rated Output Power	1000W
Form Factor & Mounting	Flatpack 1U Standard Converter Slot
Wide Operating Temperature Range	-40°C ~ +65°C
Cooling Architecture	Forced Convection Front-to-Back Airflow
Peak Conversion Efficiency	≥91.5%

Applications

Telecom carrier macro and micro BTS DC power distribution

Edge computing data center infrastructure backup

Industrial automation and communication transmission nodes

Frequently asked questions
