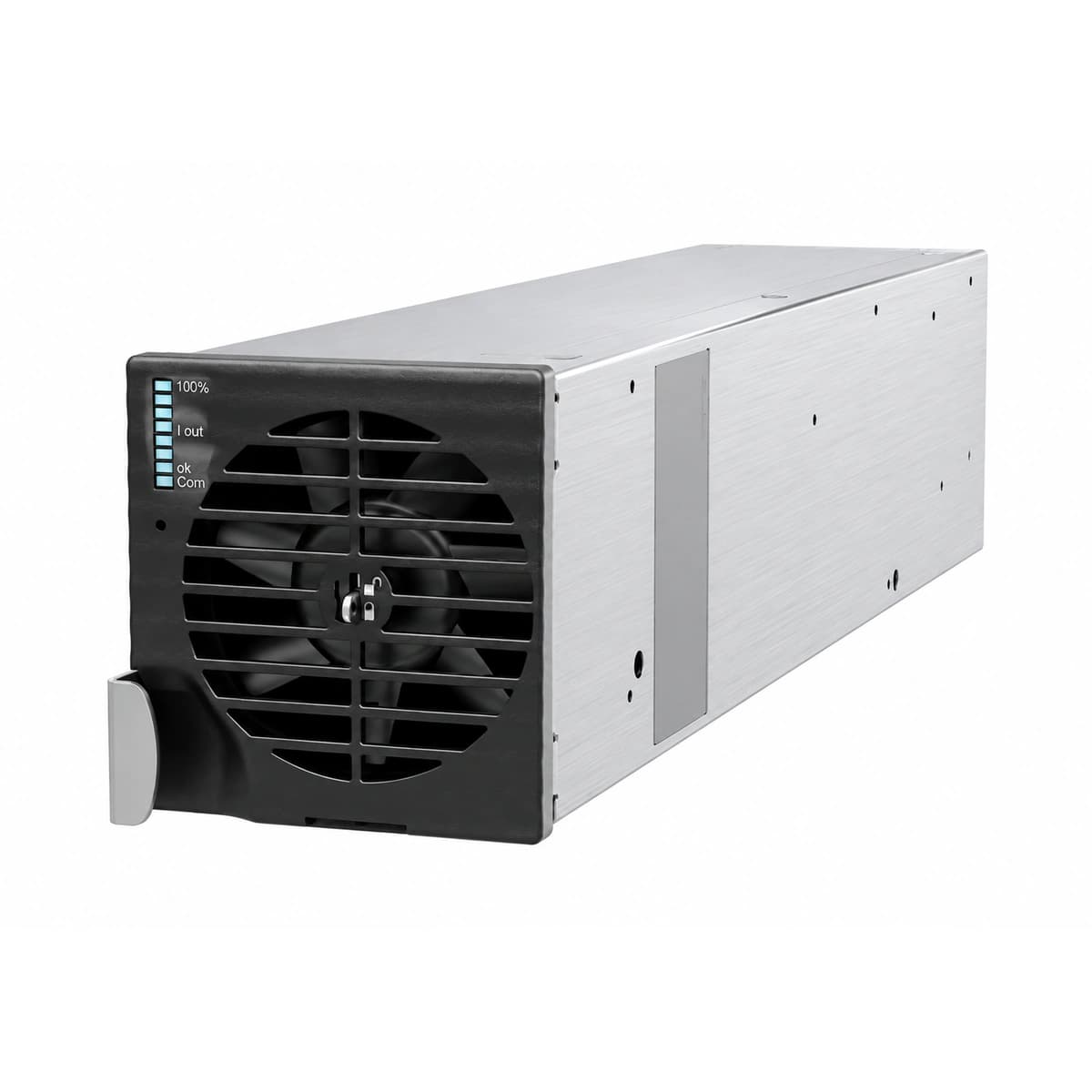

Carrier-grade industrial high-frequency switch-mode power supply designed for high-efficiency AC/DC conversion, bus regulation, and intelligent battery management.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Carrier-grade industrial high-frequency switch-mode power supply designed for high-efficiency AC/DC conversion, bus regulation, and intelligent battery management.
Resolves power grid instability, branch circuit metering latency, battery bank premature aging, and unattended facility management challenges.
Ideal for enterprise cloud data centers, high-voltage utility substations, telecommunications central offices, and industrial automation.
| Key specifications | Value |
|---|---|
| DC Voltage Adjustment | -42VDC to -58VDC |
| Rated DC Output | 48VDC / 75A (4000W) |
| Dimensions | 86 × 125 × 328 mm |
| AC Input Voltage Range | 85VAC-300VAC (Full load at 180-275V) |
| Input Frequency | 45Hz-66Hz |
| Peak Efficiency | ≥ 95.0% (Resonant LLC) |
| Power Factor & THD | PF ≥ 0.99, THD ≤ 3% |
| Cooling System | Front-to-Rear Forced Airflow |
| Hot-Swap Feature | Live Hot-Swappable Blind-Mate |
| Operating Temperature Range | -25°C to +70°C (Auto-Derating) |
| Acoustic Noise | < 55 dBA (at 25°C normal load) |
Delta
The Delta DPR2900B-48 is an industry-standard 1U hot-swappable telecom rectifier module delivering -48V 50A (2900W) at >95% efficiency, engineered for extreme reliability across global wireless stations.
The Delta DPR4830-D-DCE is an ultra-compact telecom rectifier delivering -48V 30A (1740W), engineered for micro-sites, DAS repeaters, and space-constrained indoor telecom wall boxes.
The Delta DPR4850-D-DCE is a high-density digital AC/DC rectifier converting single-phase AC to clean -48V DC power with active power factor correction and auto
The Delta DPR4850-G-DGC is an advanced high-efficiency telecom rectifier delivering -48V 50A (2900W) with a gold-finger blind-mate interface, boasting >96% peak efficiency for carrier green energy targets.
