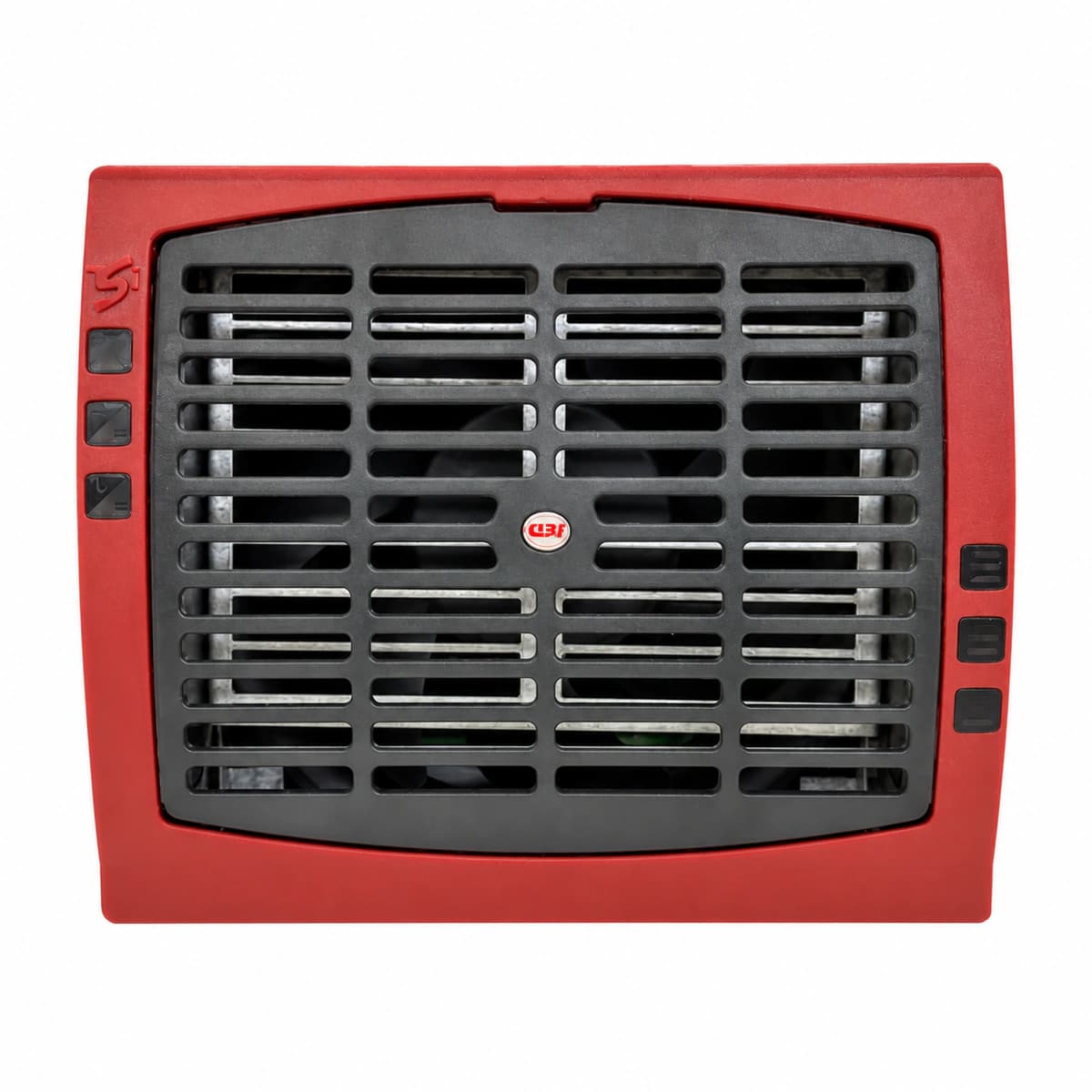

The CE+T Bravo 60Vdc/230Vac is a high-reliability modular pure sine wave telecom inverter module designed for mission-critical AC loads. Utilizing advanced Enhanced Power Conversion (EPC) topology, it achieves true 0ms seamless transfer between a 60V DC bus and 230V AC mains.
Pricing is confirmed by project configuration and quantity
Request a quoteThe CE+T Bravo 60Vdc/230Vac is a high-reliability modular pure sine wave telecom inverter module designed for mission-critical AC loads. Utilizing advanced Enhanced Power Conversion (EPC) topology, it achieves true 0ms seamless transfer between a 60V DC bus and 230V AC mains.
The CE+T Bravo 60Vdc/230Vac inverter module sets the industry benchmark for high-reliability telecom and industrial AC power security. Rated at 2500VA/2000W, it features a hot-swappable 19-inch rack-mount profile designed for flexible N+1 redundancy architectures. Engineered with patented EPC (Enhanced Power Conversion) technology, the inverter operates at up to 96% efficiency by conditioning incoming AC mains while continuously synchronizing with the DC battery plant. Upon utility degradation or complete blackout, the inverter executes a seamless 0ms transfer to battery power, preventing reboot cycles in sensitive telecom network routers, core switches, and industrial SCADA nodes. Its robust input circuitry tolerates an ultra-wide DC range of 48V to 75V, accommodating continuous battery equalize charging. Advanced hardware protections include galvanic isolation, input surge clamp, short-circuit current limiting, and automated thermal derating. Supporting parallel scalability up to 32 units, the Bravo module integrates with TSI controllers via high-speed CAN bus for active current sharing and remote management via Web/SNMP/Modbus protocols.
The CE+T Bravo 60Vdc/230Vac is a high-reliability modular pure sine wave telecom inverter module designed for mission-critical AC loads. Utilizing advanced Enhanced Power Conversion (EPC) topology, it achieves true 0ms seamless transfer between a 60V DC bus and 230V AC mains.
| Key specifications | Value |
|---|---|
| Rated Output Power | 2500VA / 2000W pure sine wave high-frequency inverter output |
| DC Input Voltage | 60V DC nominal DC input (range 48V to 75V DC) |
| Rated AC Output Voltage | 230V AC single-phase pure sine wave output (THD < 1.5%) |
| Conversion Efficiency | ≥ 96% high overall conversion efficiency in EPC mode |
| Transfer Time | 0 ms (absolute zero-millisecond transfer between AC mains and DC battery) |
| Cooling Design | Built-in intelligent speed-regulated quiet airflow cooling duct with independent dust filter |
| Parallel Redundancy | Supports parallel scalability of up to 32 modules for ultra-large capacity inverter systems |
| Operating Temperature | -20°C to +50°C |
Ce+T

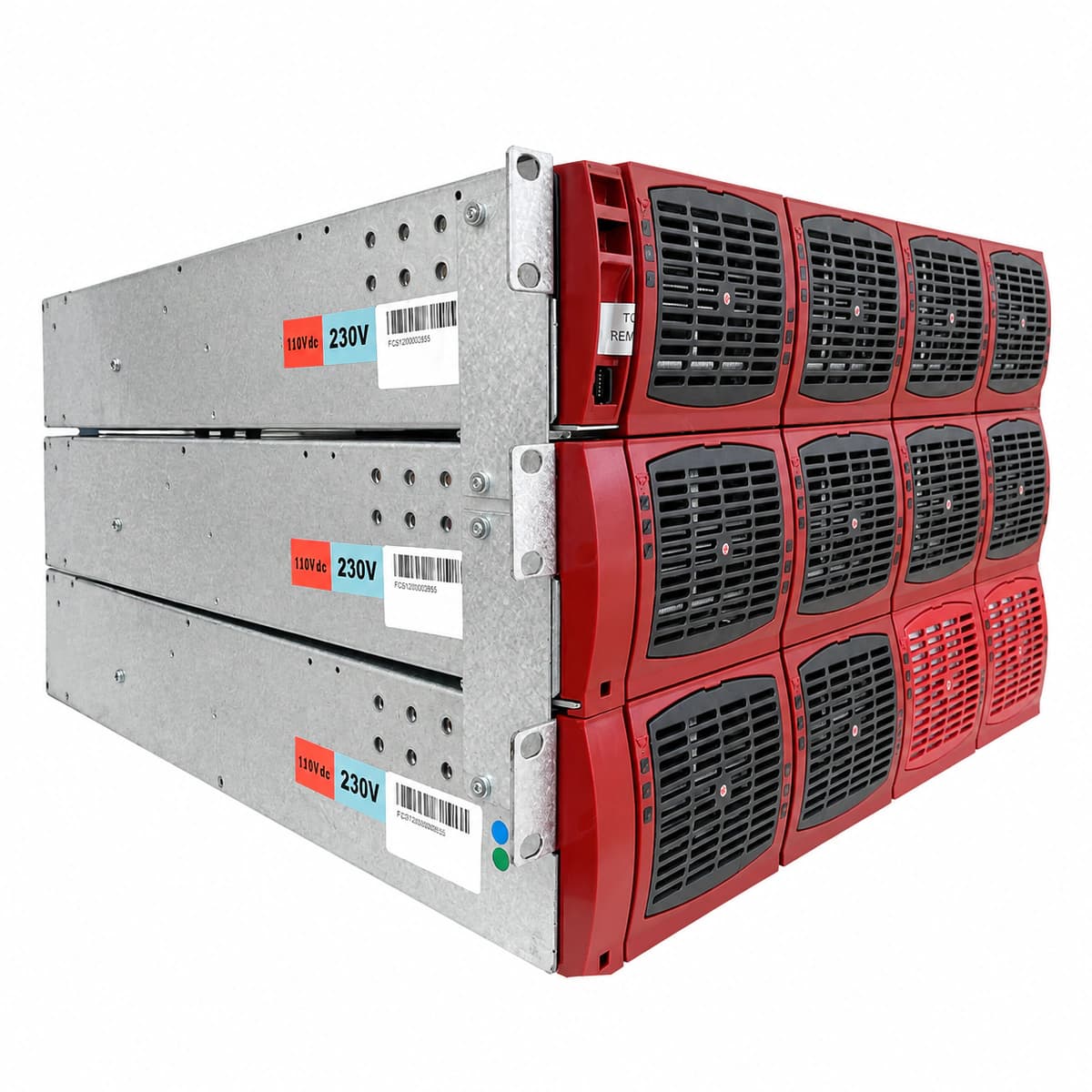

The CE+T 25kVA Modular Inverter Subrack is a 19-inch heavy-duty chassis system engineered for mission-critical telecom and industrial AC power security. Designe
